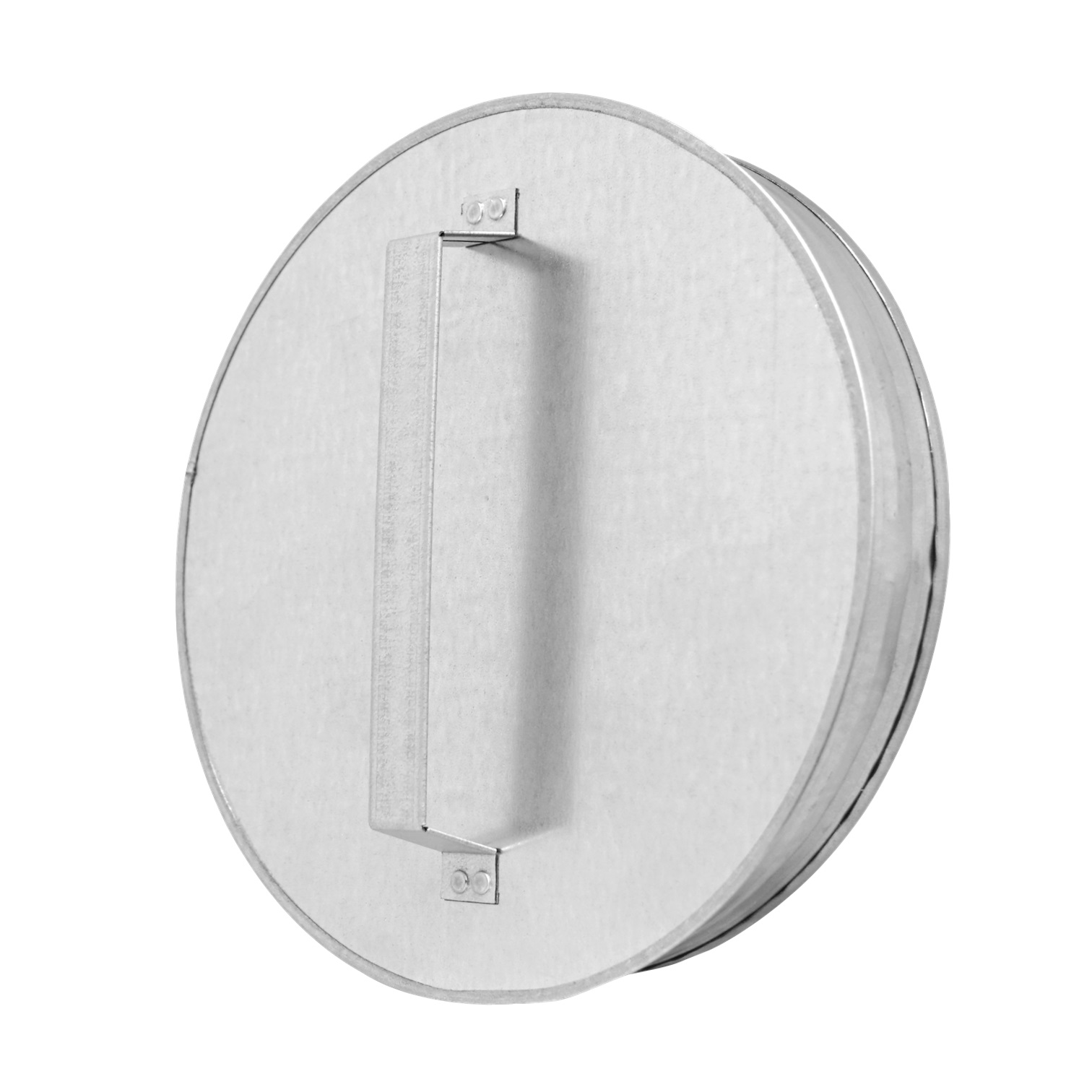

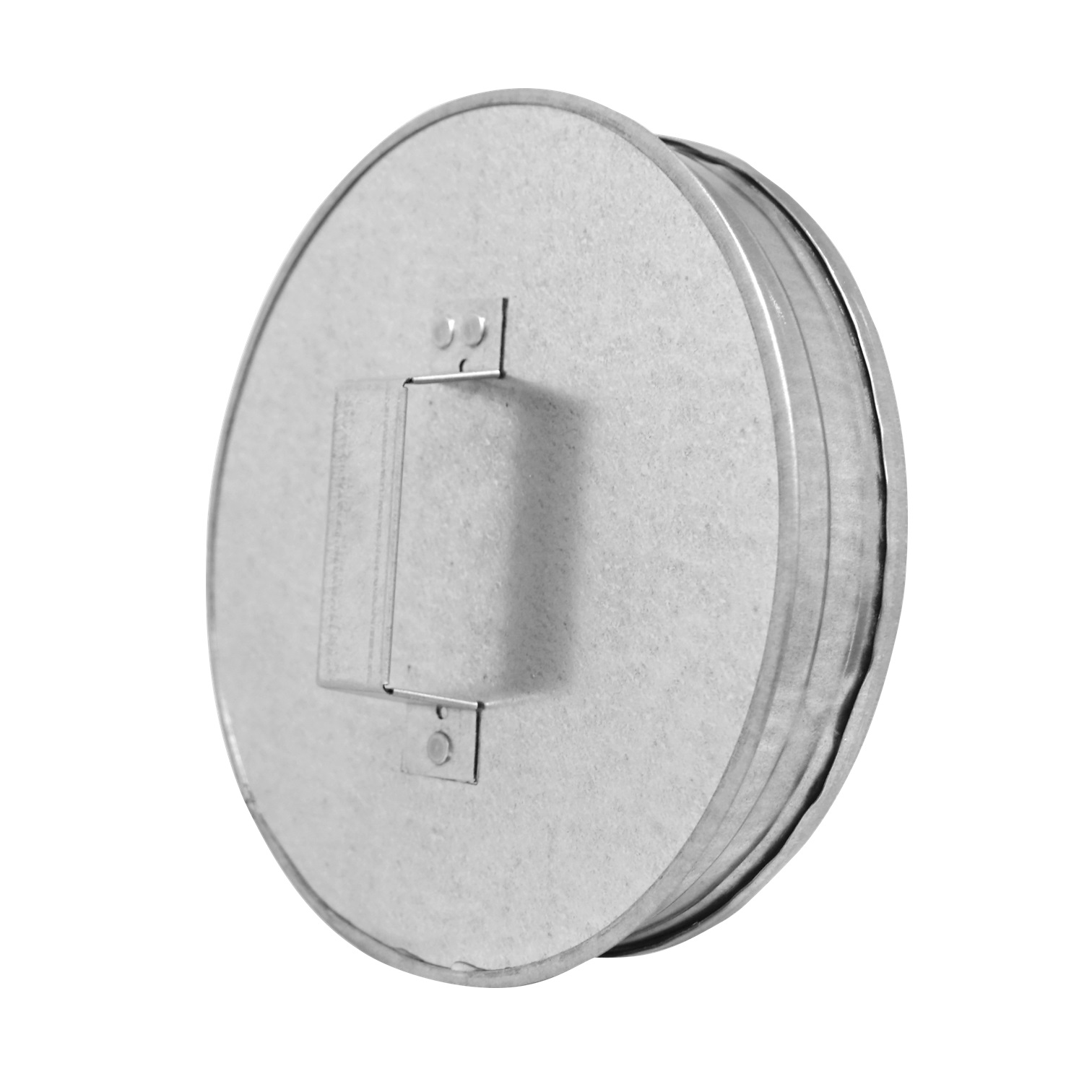

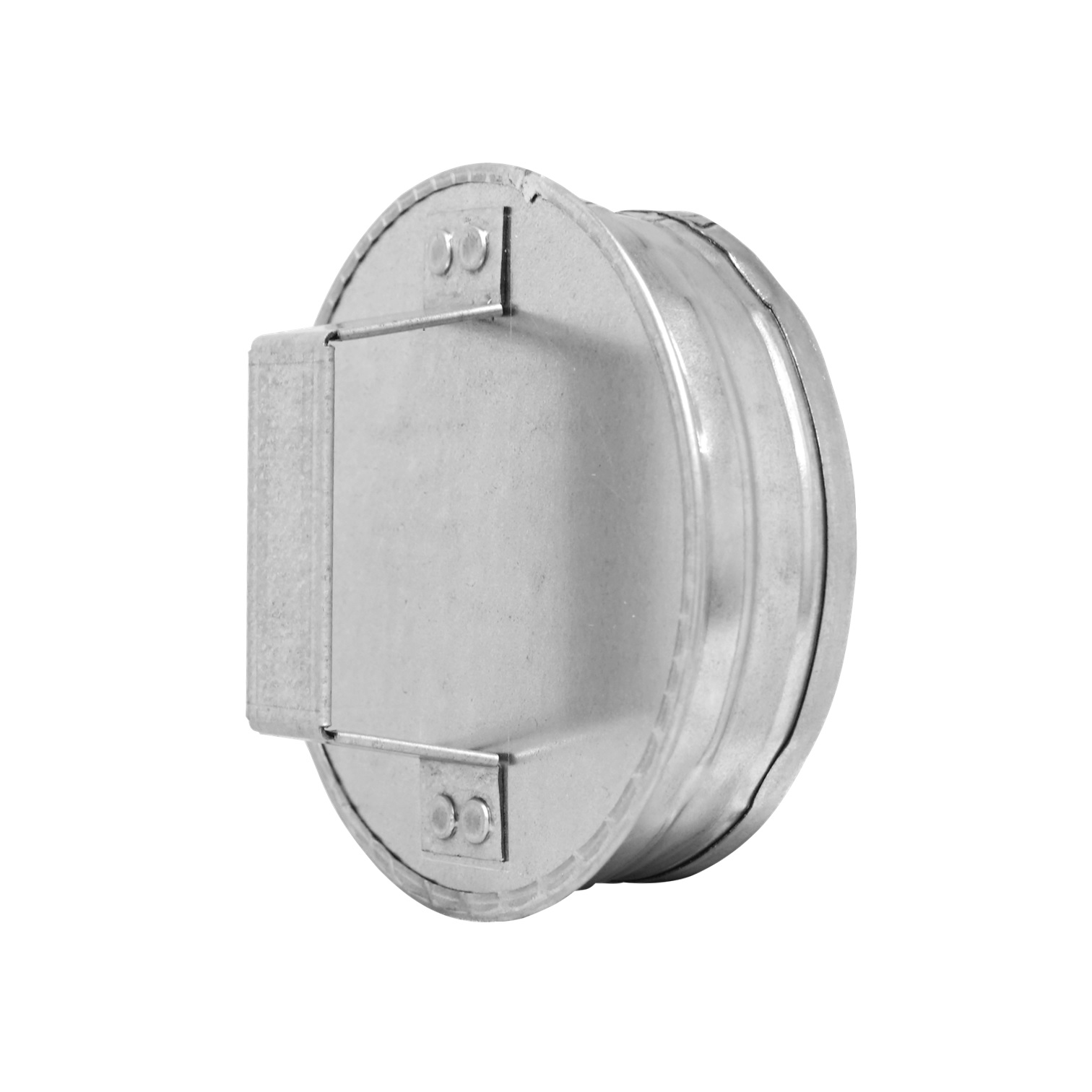

end caps for ducts with handle without gaskets ESH
Construction:
- Material galvanized steel or other metal
Instalation:
- Male type end connection
Information: Standard insertion length 33 mm and 43 mm, optionaly can be ordered in other lengths.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
ESH100
|
end cap for ducts with handle, metal, Ø100mm, without gaskets
|
20201044
|
100 mm |
|
ESH125
|
end cap for ducts with handle, metal, Ø125mm, without gaskets
|
20201045
|
125 mm |
|
ESH150
|
end cap for ducts with handle, metal, Ø150mm, without gaskets
|
20201046
|
150 mm |
|
ESH160
|
end cap for ducts with handle, metal, Ø160mm, without gaskets
|
20201047
|
160 mm |
|
ESH180
|
end cap for ducts with handle, metal, Ø180mm, without gaskets
|
20201048
|
180 mm |
|
ESH200
|
end cap for ducts with handle, metal, Ø200mm, without gaskets
|
20201049
|
200 mm |
|
ESH250
|
end cap for ducts with handle, metal, Ø250mm, without gaskets
|
20201050
|
250 mm |
|
ESH315
|
end cap for ducts with handle, metal, Ø315mm, without gaskets
|
20201052
|
315 mm |
|
ESH80
|
end cap for ducts with handle, metal, Ø80mm, without gaskets
|
20003478
|
80 mm |

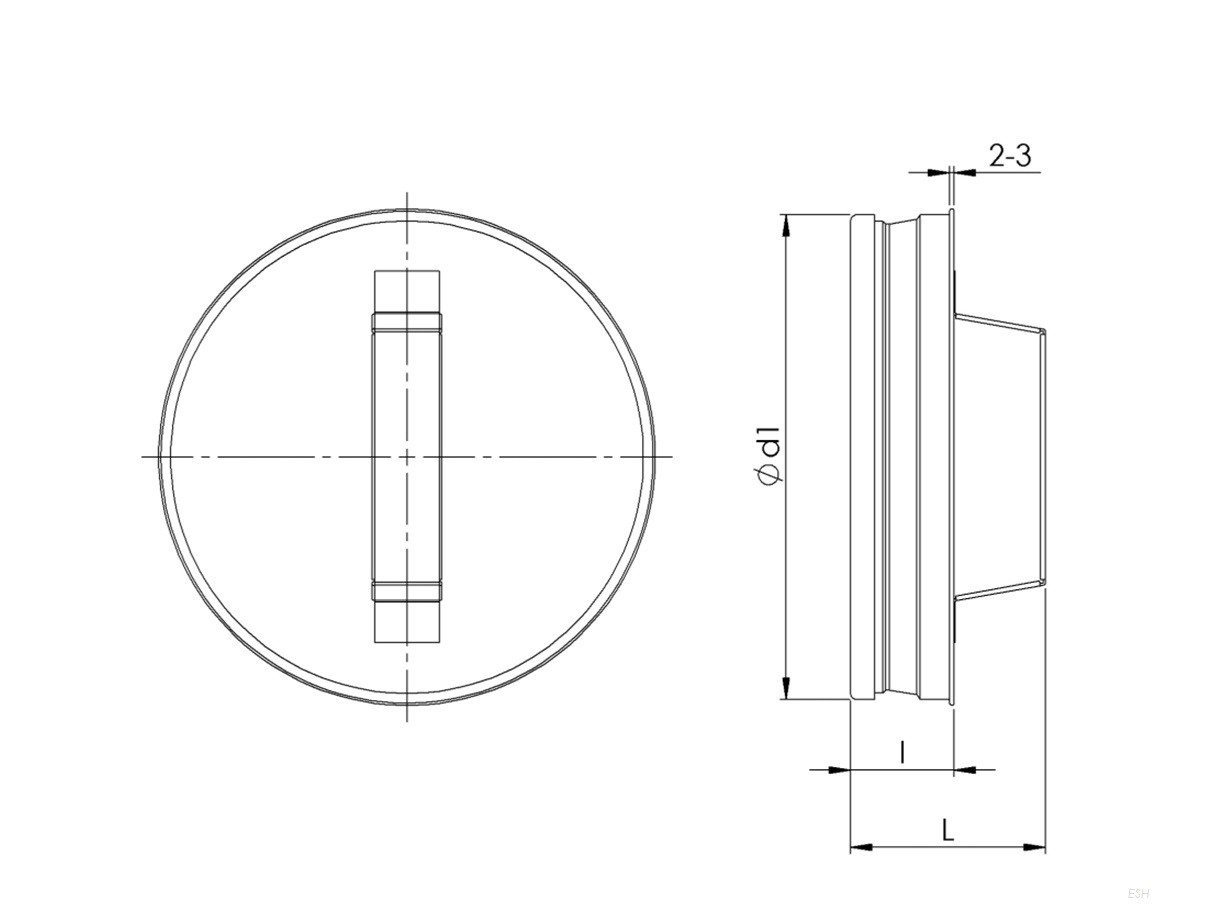

| Type | Ød nom [mm] |
l [mm] |
L [mm] |
m [kg] |
| ESH80 | 80 | 33 |
63 |
0,09 |
| ESH100 | 100 | 33 |
63 |
0,11 |
| ESH125 | 125 | 33 | 63 | 0,15 |
| ESH150 | 150 | 33 | 63 | 0,18 |
| ESH160 | 160 | 33 | 63 | 0,20 |
| ESH180 | 180 | 33 | 63 | 0,23 |
| ESH200 | 200 | 33 | 63 | 0,46 |
| ESH250 | 250 | 43 | 73 | 0,40 |
| ESH315 | 315 | 43 | 73 | 0,55 |
