spiral air ducts SD M1
Construction:
- Material galvanized steel or other metal
- Duct ends covered with plastic plugs
- Cleanliness class: M1
Instalation:
- Easy installation.
Maximal temperature of air flow: +120°C
Lenght: Standard lenght 3 m. Ducts can be manufactured in other lenghts, materials and in other thicknesses.

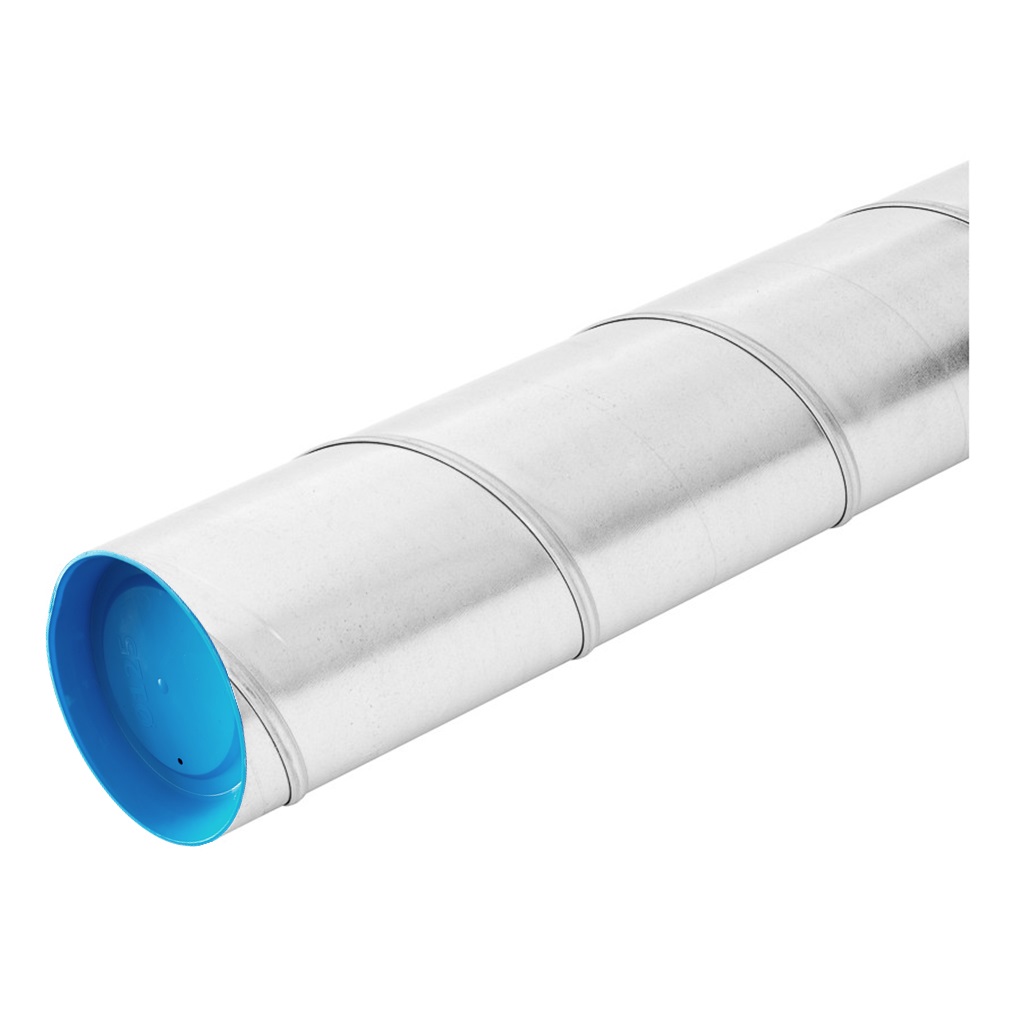

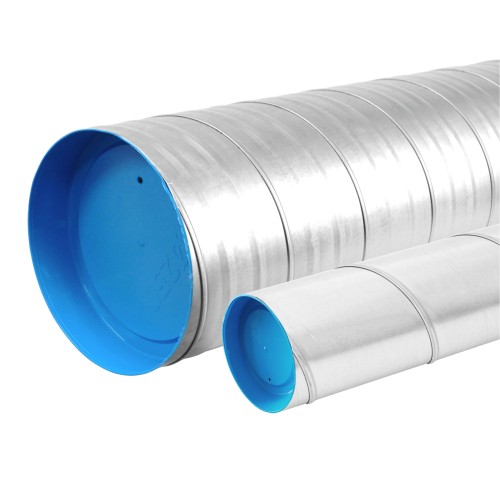

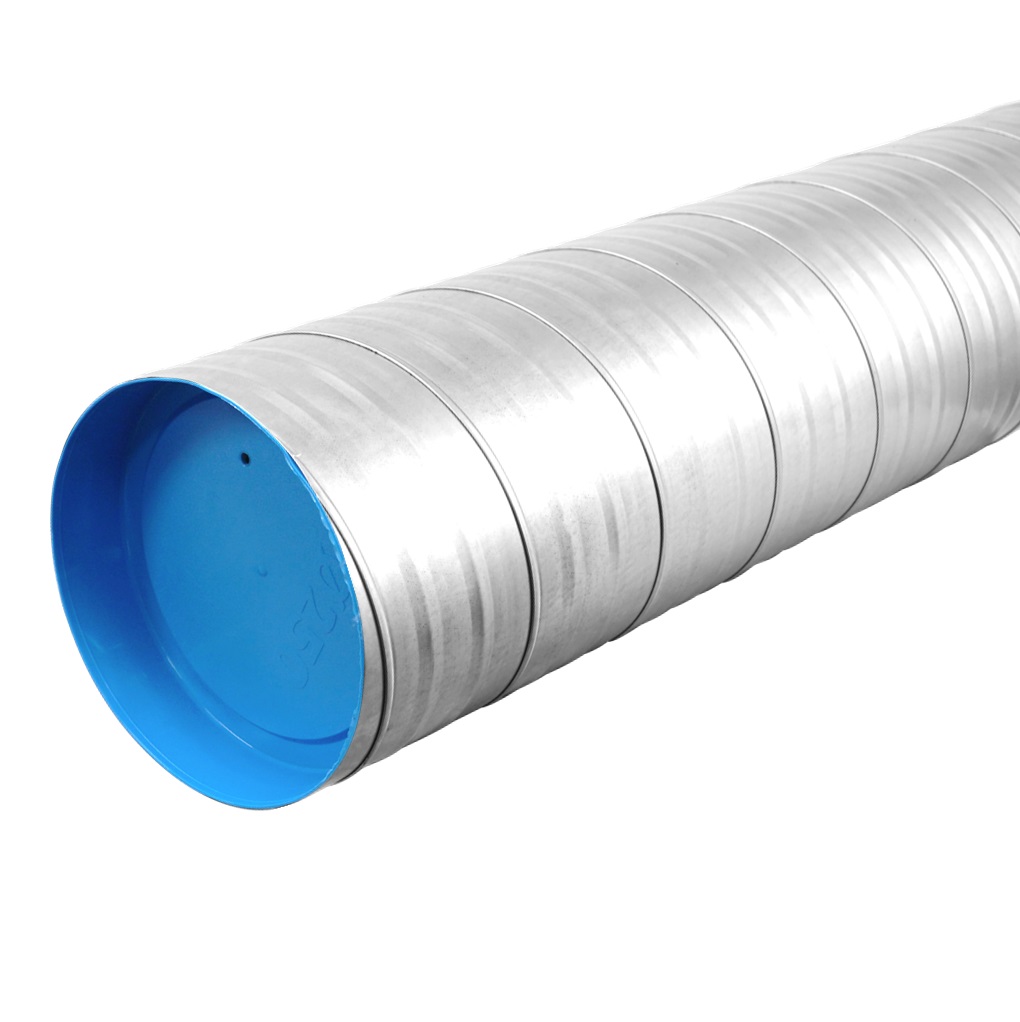

Spiral air ducts are fitted with plastic caps at both ends, thus avoiding the pollution of the product during transport and storage time. Maximal temperature of air flow +120°C.
Cleanliness M1 ensures that spiral ducts will not increase the concentration of contaminants that are detrimental to health or comfort in the air handling system and will not produce odours, or gases or particulate contaminants that decrease the quality of supply air.
| Article | Description | EAN | Length | Connection | Class | |
|---|---|---|---|---|---|---|
|
SDM100-2
|
spiral air duct M1 metal, Ø100mm-2m, with covers
|
20200752
|
2 m | 100 mm | M1 |
|
SDM100
|
spiral air duct M1 metal, Ø100mm-3m, with covers
|
4750492019030
|
3 m | 100 mm | M1 |
|
SDM125-2
|
spiral air duct M1 metal, Ø125mm-2m, with covers
|
20003891
|
2 m | 125 mm | M1 |
|
SDM125
|
spiral air duct M1 metal, Ø125mm-3m, with covers
|
4750492019047
|
3 m | 125 mm | M1 |
|
SDM160-2
|
spiral air duct M1 metal, Ø160mm-2m, with covers
|
20200751
|
2 m | 160 mm | M1 |
|
SDM160
|
spiral air duct M1 metal, Ø160mm-3m, with covers
|
4750492019054
|
3 m | 160 mm | M1 |
|
SDM200-2
|
spiral air duct M1 metal, Ø200mm-2m, with covers
|
20200750
|
2 m | 200 mm | M1 |
|
SDM200
|
spiral air duct M1 metal, Ø200mm-3m, with covers
|
4750492019061
|
3 m | 200 mm | M1 |
|
SDM250-2
|
spiral air duct M1 metal, Ø250mm-2m, with covers
|
20200749
|
2 m | 250 mm | M1 |
|
SDM250
|
spiral air duct M1 metal, Ø250mm-3m, with covers
|
4750492019078
|
3 m | 250 mm | M1 |

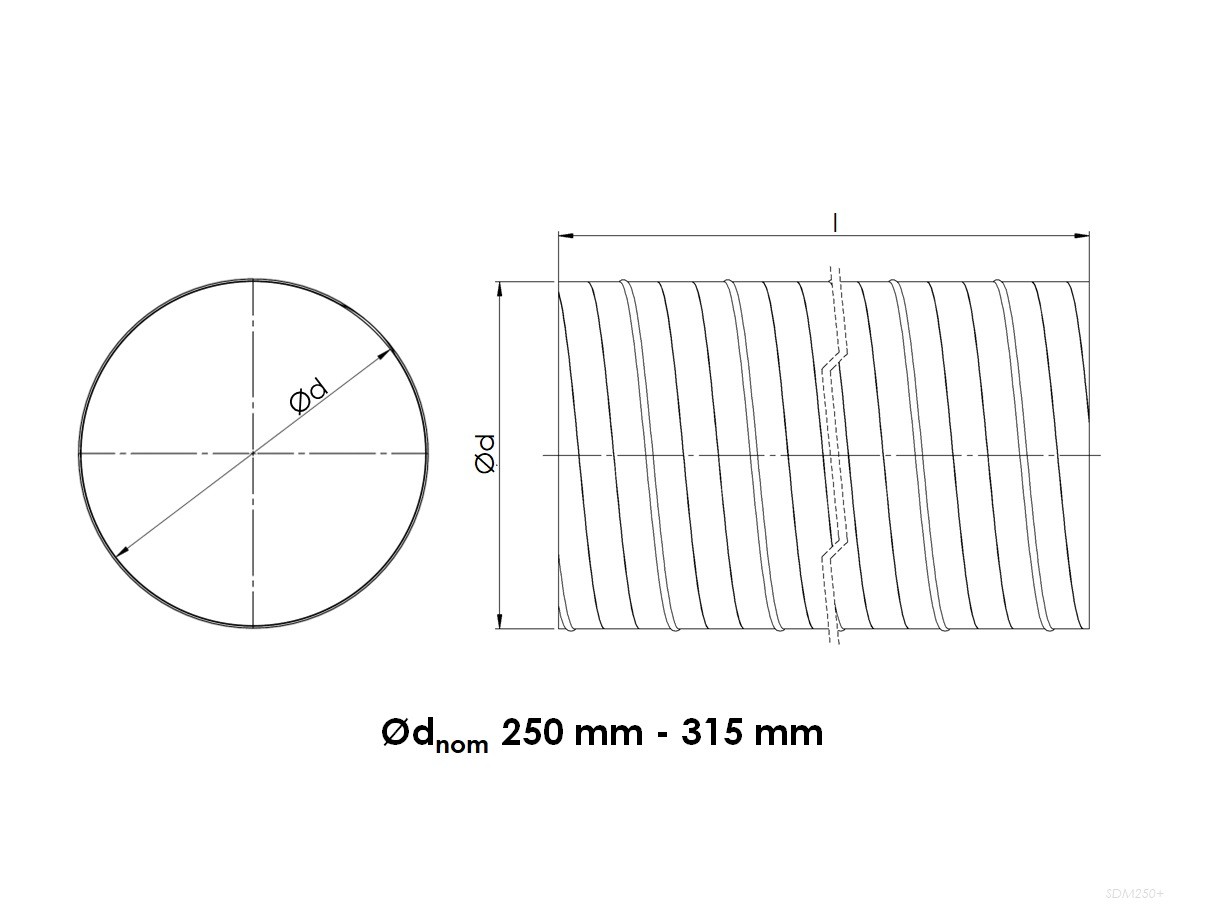

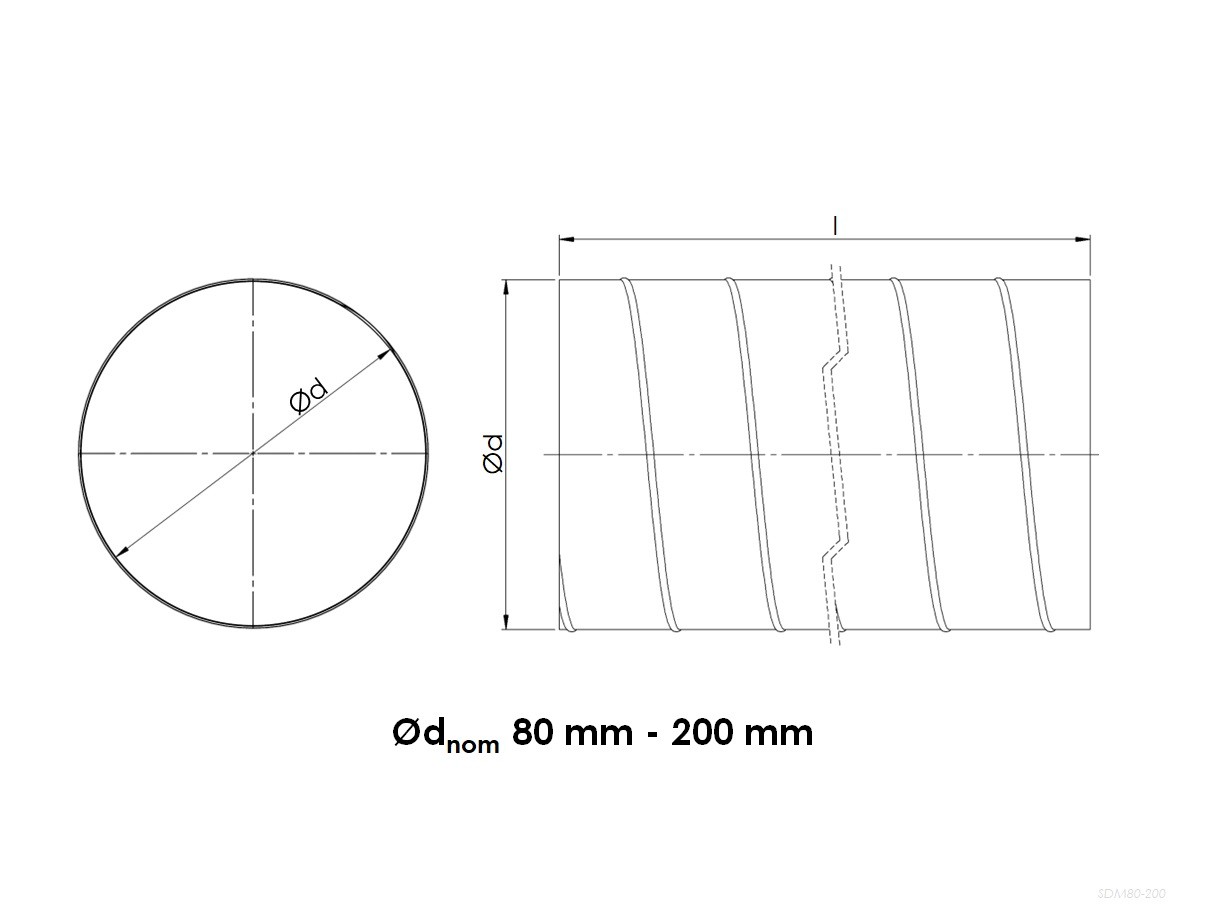

| Type | Ød nom [mm] |
l [mm] |
m [kg] |
| SDM80 | 80 | 3000 | 1,0 |
| SDM100 | 100 | 3000 | 1,3 |
| SDM125 | 125 | 3000 | 1,6 |
| SDM150 | 150 | 3000 | 1,9 |
| SDM160 | 160 | 3000 | 2,0 |
| SDM200 | 200 | 3000 | 2,6 |
| SDM250* | 250 | 3000 | 3,0 |
| SDM315* | 315 | 3000 | 4,0 |
*With profile corrugation.
Ducts can be manufactured in other lenghts, materials and in other thicknesses
