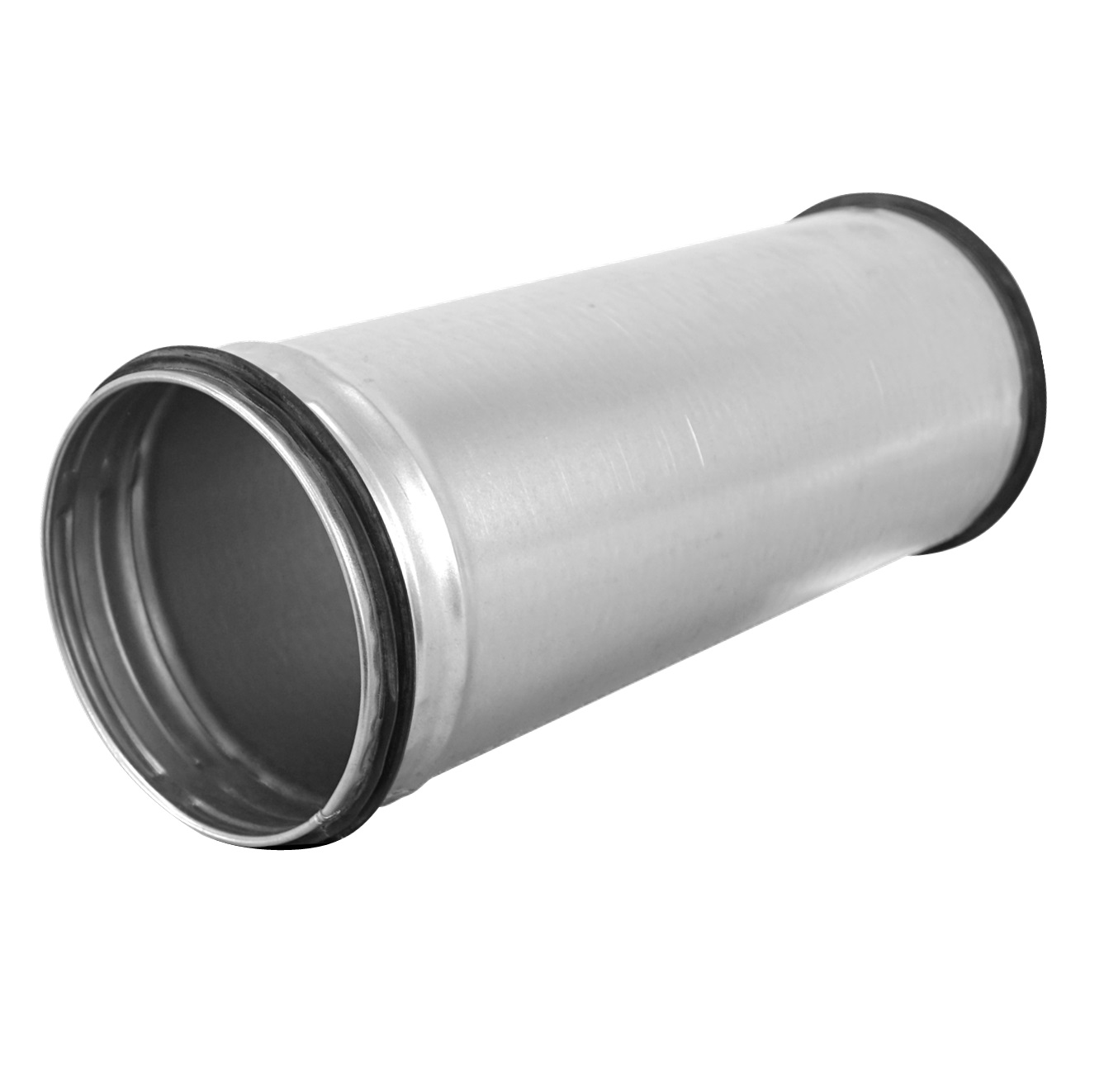

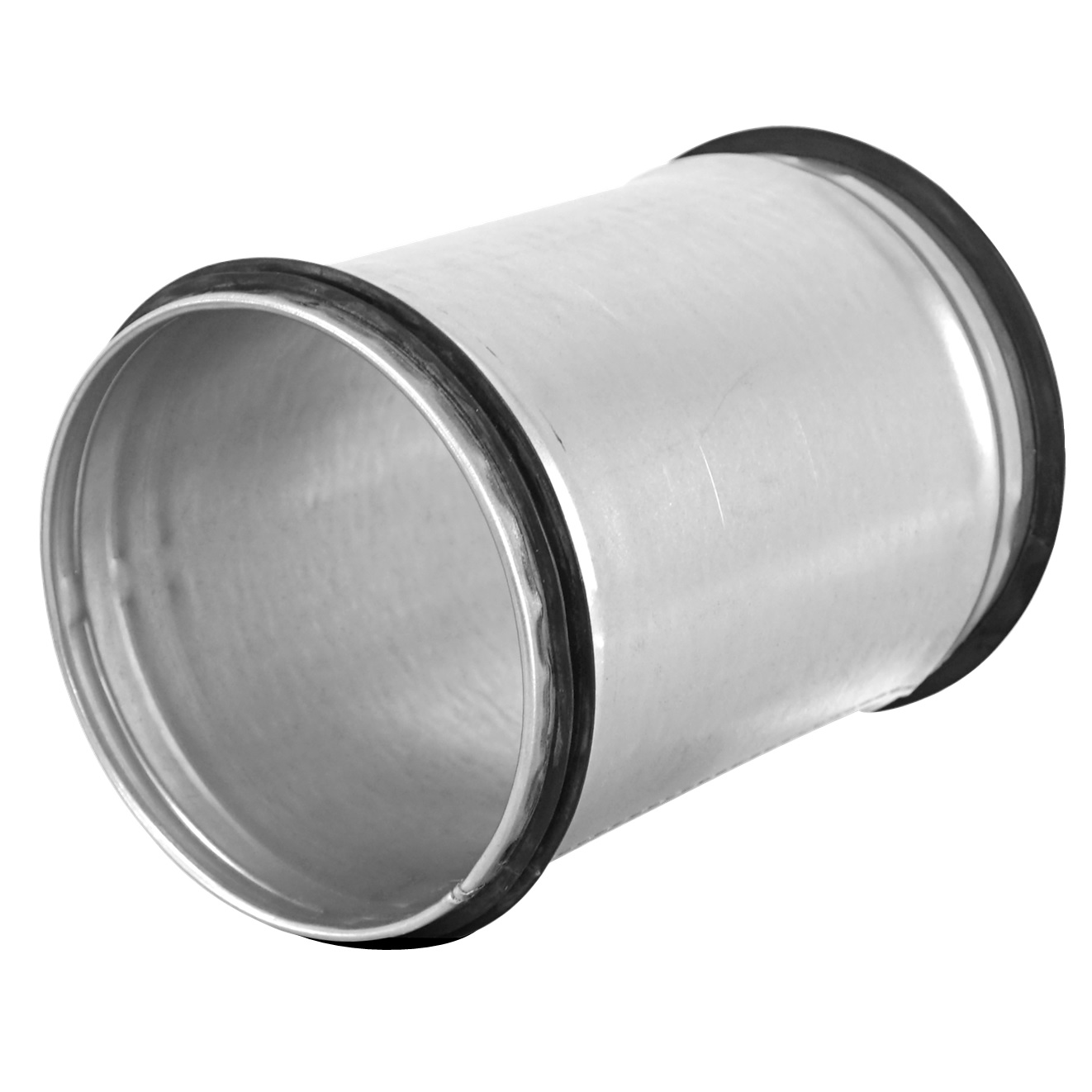

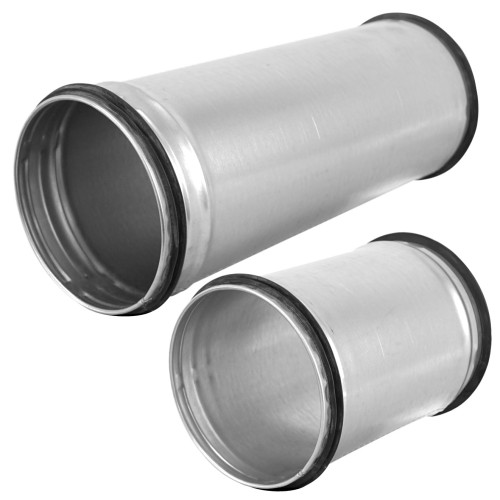

long couplings with gaskets NPLS
Construction:
- Material galvanized steel or other metal
- EPDM seals
- Manufactured according "D" class
Instalation:
- Easy installation.
| Article | Description | EAN | Length | Connection | |
|---|---|---|---|---|---|
|
NPLS100-0.15
|
long couplings metal, Ø100mm, 0.15m, with gaskets
|
4750492022948
|
0,15 m | Ø 100 mm |
|
NPLS100-0.3
|
long couplings metal, Ø100mm, 0.3m, with gaskets
|
20201119
|
0,3 m | Ø 100 mm |
|
NPLS125-0.15
|
long couplings metal, Ø125mm, 0.15m, with gaskets
|
4750492022955
|
0,15 m | Ø 125 mm |
|
NPLS125-0.3
|
long couplings metal, Ø125mm, 0.3m, with gaskets
|
20201120
|
0,3 m | Ø 125 mm |
|
NPLS160-0.15
|
long couplings metal, Ø160mm, 0.15m, with gaskets
|
4750492022962
|
0,15 m | Ø 160 mm |
|
NPLS160-0.3
|
long couplings metal, Ø160mm, 0.3m, with gaskets
|
20201122
|
0,3 m | Ø 160 mm |
|
NPLS80-0.15
|
long couplings metal, Ø80mm, 0.15m, with gaskets
|
20201107
|
0,15 m | Ø 80 mm |
|
NPLS80-0.3
|
long couplings metal, Ø80mm, 0.3m, with gaskets
|
20201118
|
0,3 m | Ø 80 mm |

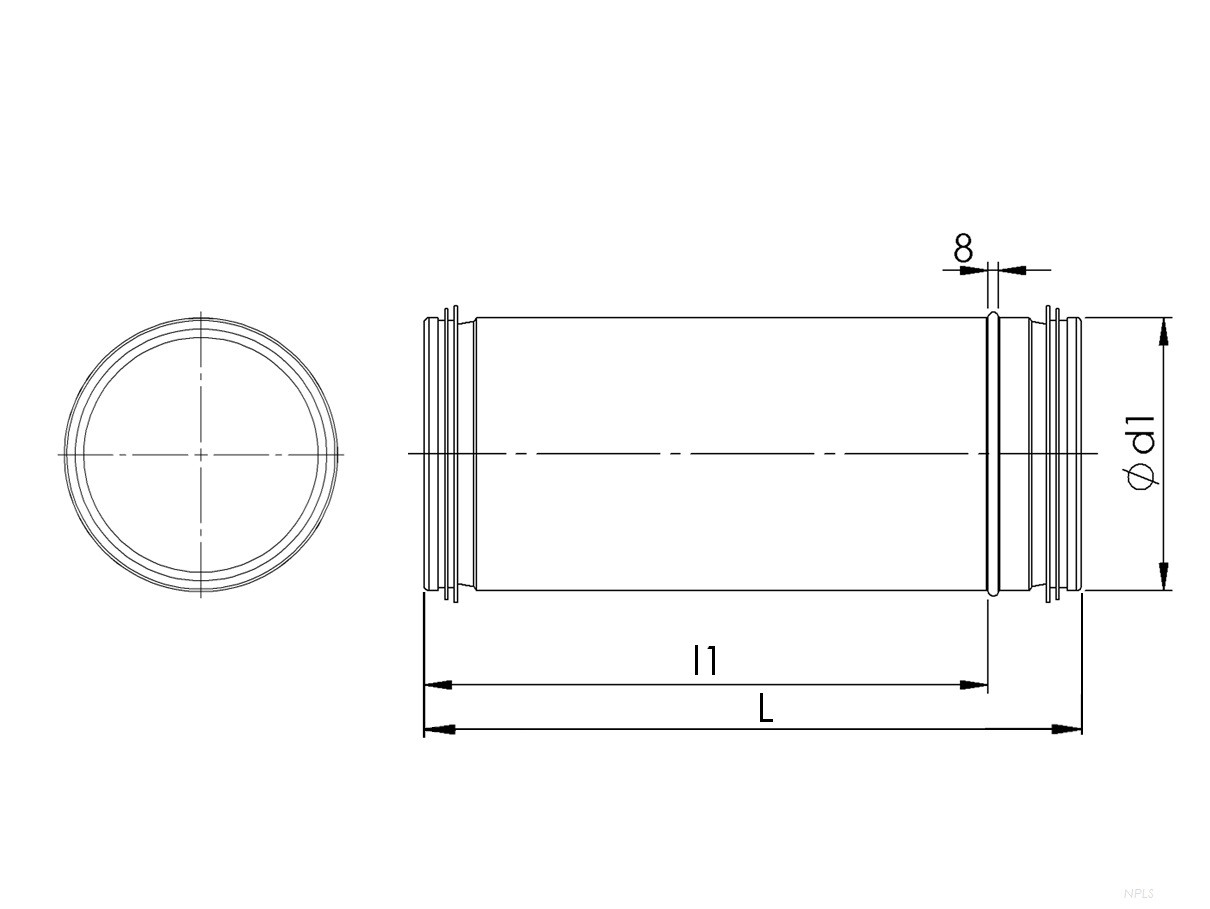

| Type | Ød1 nom [mm] |
l1 [mm] |
L [mm] |
m [kg] |
| NPLS80-0.15 | 80 | 150 | 188 | 0,2 |
| NPLS80-0.3 | 80 | 300 | 338 | 0,34 |
| NPLS100-0.15 |
100 |
150 | 188 | 0,25 |
| NPLS100-0.3 | 100 | 300 | 338 | 0,42 |
| NPLS125-0.15 | 125 | 150 | 188 | 0,32 |
| NPLS125-0.3 | 125 | 300 | 338 | 0,53 |
| NPLS160-0.15 | 160 | 150 | 188 | 0,41 |
| NPLS160-0.3 | 160 | 300 | 338 | 0,68 |
