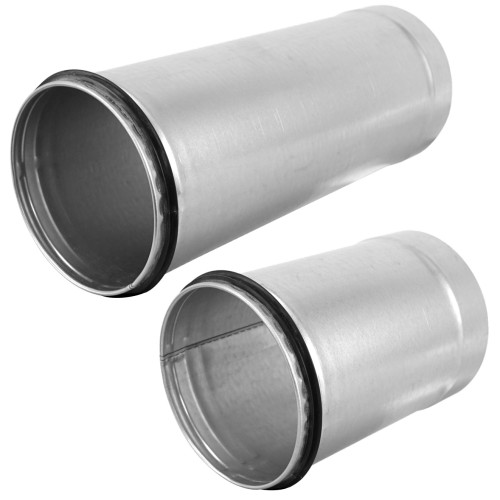

long duct-fitting couplings with gaskets NFPLS

Construction:

  • Material galvanized steel or other metal
  • Sealing made from EPDM rubber.
  • Standard lengths 0.15 m and 0.3 m, optionaly can be ordered in other lengths.


Instalation:

  • Easy installation.

Metal air duct fitting long coupling with male female type end connections.

Length

Connection

Colour

Sort by

Article Description EAN Length Connection

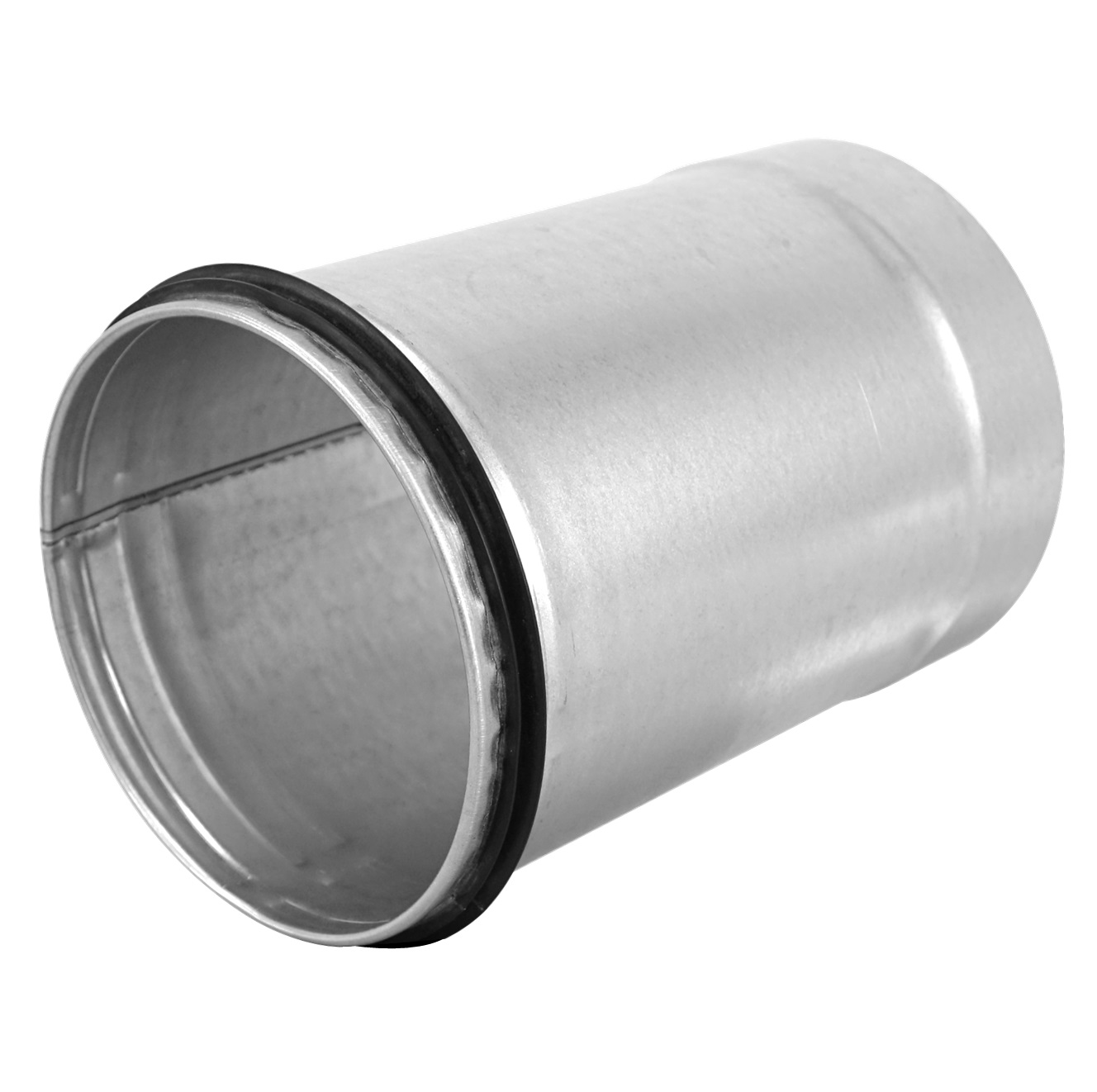

NFPLS100-0.15
NFPLS100-0.15
long duct-fitting coupling, metal, Ø100mm, 0.15m, with gaskets
4750492022979
0,15 m Ø 100 mm

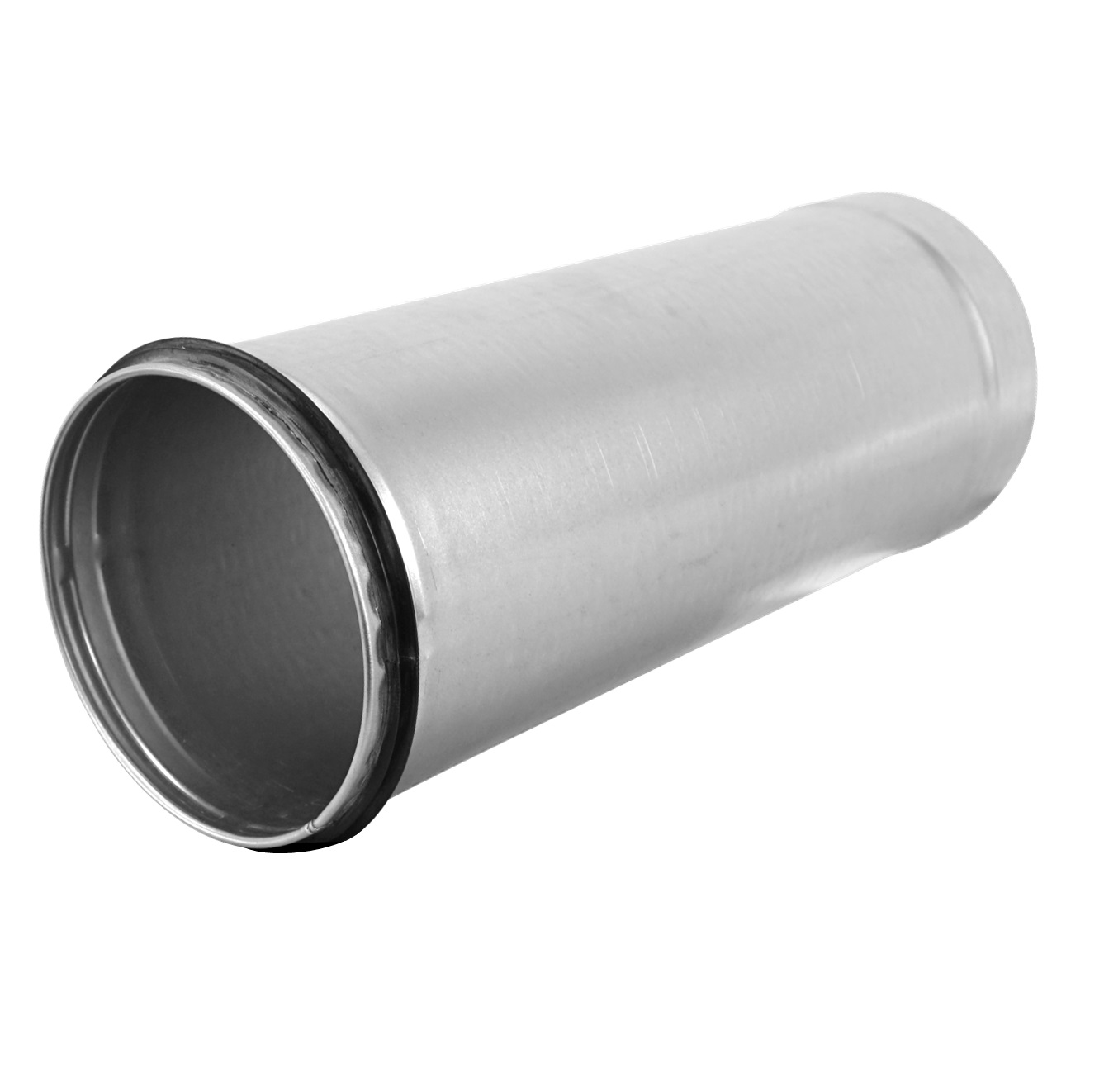

NFPLS100-0.3
NFPLS100-0.3
long duct-fitting coupling, metal, Ø100mm, 0.3m, with gaskets
4750492023747
0,3 m Ø 100 mm
NFPLS125-0.15
NFPLS125-0.15
long duct-fitting coupling, metal, Ø125mm, 0.15m, with gaskets
4750492022986
0,15 m Ø 125 mm
NFPLS125-0.3
NFPLS125-0.3
long duct-fitting coupling, metal, Ø125mm, 0.3m, with gaskets
4750492023754
0,3 m Ø 125 mm
NFPLS160-0.15
NFPLS160-0.15
long duct-fitting coupling, metal, Ø160mm, 0.15m, with gaskets
4750492022993
0,15 m Ø 160 mm
NFPLS160-0.3
NFPLS160-0.3
long duct-fitting coupling, metal, Ø160mm, 0.3m, with gaskets
4750492023761
0,3 m Ø 160 mm

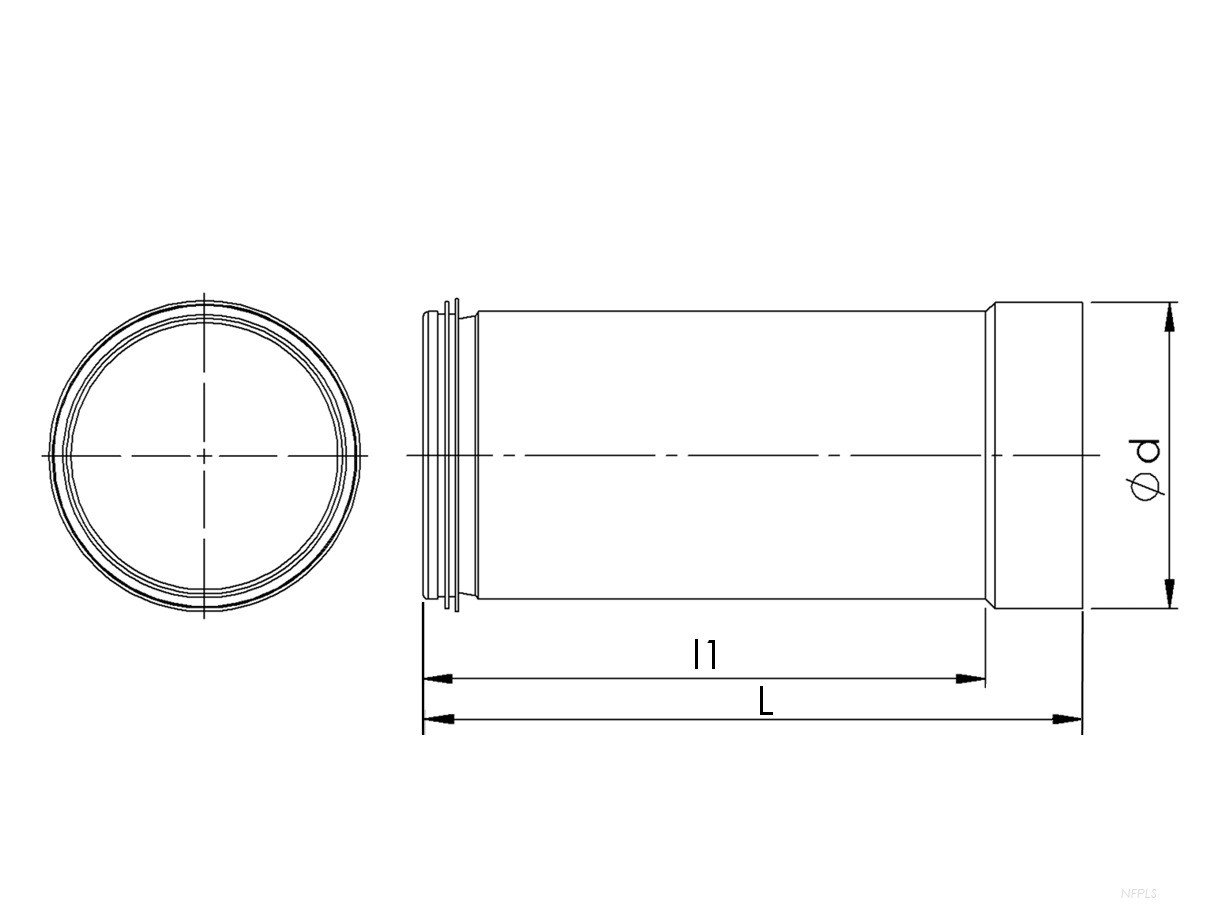

TG
Type Ød nom
[mm]
l1
[mm]

L

[mm]

m
[kg]
NFPLS100-0.15

100

150 182 0,22
NFPLS100-0.3 100 300 332 0,39
NFPLS125-0.15 125 150 182 0,28
NFPLS125-0.3 125 300 332 0,49
NFPLS160-0.15 160 150 182 0,35
NFPLS160-0.3 160 300 332 0,63
