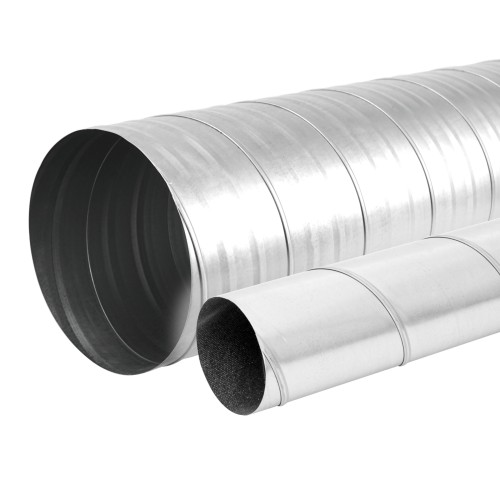

spiral air ducts SD
Construction:
- Material galvanized steel or other metal
- Spiral ducts meet the M1 cleanliness class and tightness class D
Instalation:
- Easy installation.
Maximal temperature of air flow: +120°C
Information: Standard lenght 3 m. Ducts can be manufactured in other lenghts, materials and in other thicknesses.
Spiral air ducts for long-distance sections of ventilation systems. Maximal temperature of air flow +120oC. Spiral ducts meet the M1 cleanliness class and tightness class D
| Article | Description | EAN | Length | Connection | |
|---|---|---|---|---|---|
|
SD100-0.3
|
spiral air duct metal, Ø100mm-0.3m
|
4750492002278
|
0,3 m | 100 mm |
|
SD100-1.15
|
spiral air duct metal, Ø100mm-1.15m
|
4750492218938
|
1,15 m | 100 mm |
|
SD100-2
|
spiral air duct metal, Ø100mm-2m
|
4750492013915
|
2 m | 100 mm |
|
SD100
|
spiral air duct metal, Ø100mm-3m
|
4750492106150
|
3 m | 100 mm |
|
SD125-0.3
|
spiral air duct metal, Ø125mm-0.3m
|
4750492002285
|
0,3 m | 125 mm |
|
SD125-1.15
|
spiral air duct metal, Ø125mm-1.15m
|
4750492218945
|
1,15 m | 125 mm |
|
SD125-2
|
spiral air duct metal, Ø125mm-2m
|
4750492013922
|
2 m | 125 mm |
|
SD125
|
spiral air duct metal, Ø125mm-3m
|
4750492106167
|
3 m | 125 mm |
|
SD150
|
spiral air duct metal, Ø150mm-3m
|
4750492022559
|
3 m | 150 mm |
|
SD160-0.3
|
spiral air duct metal, Ø160mm-0.3m
|
4750492002292
|
0,3 m | 160 mm |
| Type | Ød nom [mm] |
l [mm] |
m [kg] |
| SD80 | 80 | 3000 | 1,0 |
| SD100 | 100 | 3000 | 1,3 |
| SD125 | 125 | 3000 | 1,6 |
| SD150 | 150 | 3000 | 1,9 |
| SD160 | 160 | 3000 | 2,0 |
| SD200 | 200 | 3000 | 2,6 |
| SD250* | 250 | 3000 | 3,0 |
| SD315* | 315 | 3000 | 4,0 |
| SD355* | 355 | 3000 | 7,3 |
| SD400* | 400 | 3000 | 8,0 |
| SD450* | 450 | 3000 | 9,0 |
| SD500* | 500 | 3000 | 10 |
| SD560* | 560 | 3000 | 12 |
| SD630* | 630 | 3000 | 13 |
*With profile corrugation.
Ducts can be manufactured in other lenghts, materials and in other thicknesses
