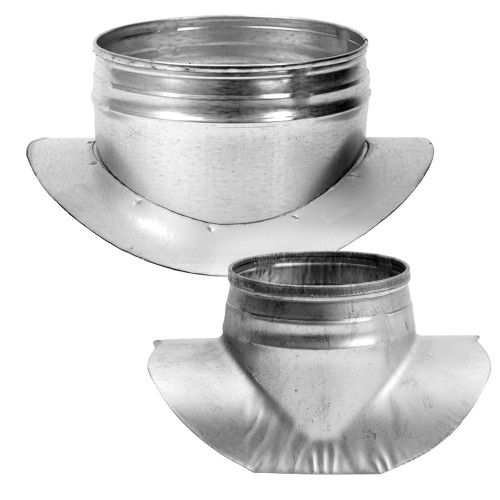

saddles without gaskets BA

Construction:

  • Material galvanized steel or other metal

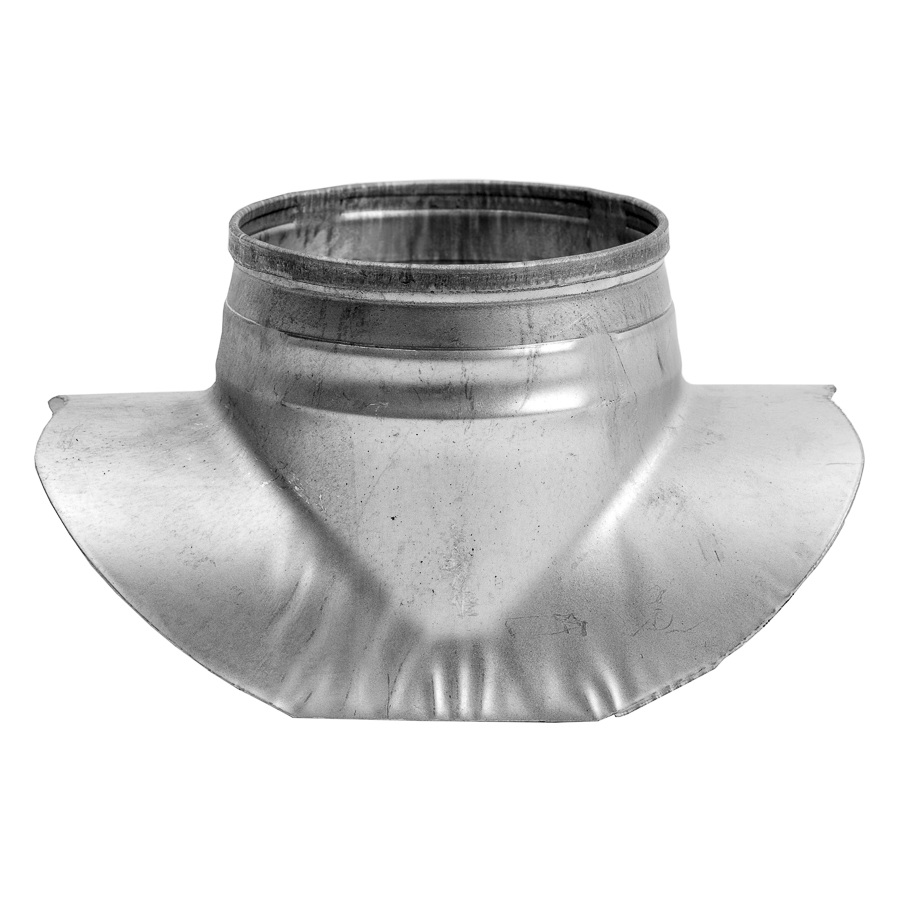

  • Pressed

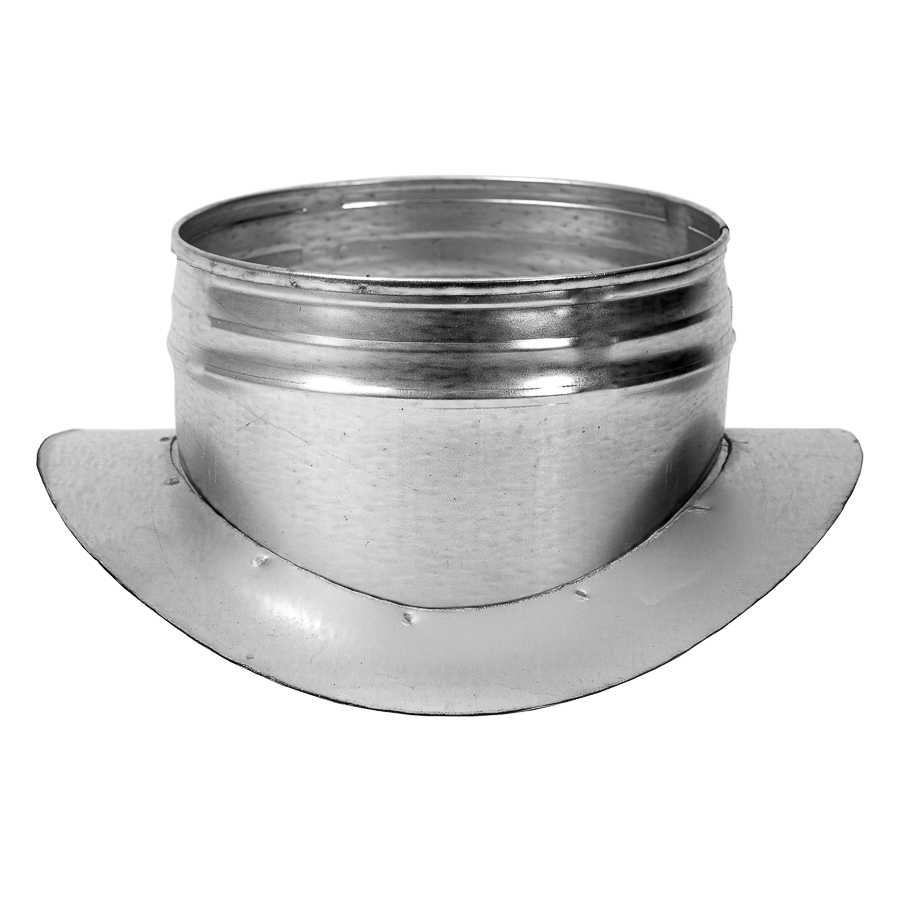

  • Segmented



Instalation:

  • Easy installation.



Sort by

Article Description EAN
BA200-150
BA200-150
saddle metal, Ø200-Ø150mm without rubber
20003742
BA250-100
BA250-100
saddle metal, Ø250-Ø100mm without rubber, extruded
4750492210765
BA250-200
BA250-200
saddle metal, Ø250-Ø200mm without rubber
4750492210789
BA100-100
BA100-100
saddle metall, Ø100-Ø100mm without rubber, extruded
4750492106525
BA100-80
BA100-80
saddle metall, Ø100-Ø80mm without rubber, extruded
20000911
BA125-100
BA125-100
saddle metall, Ø125-Ø100mm without rubber, extruded
4750492106532
BA125-125
BA125-125
saddle metall, Ø125-Ø125mm without rubber, extruded
4750492106549
BA125-80
BA125-80
saddle metall, Ø125-Ø80mm without rubber
20003987
BA150-100
BA150-100
saddle metall, Ø150-Ø100mm without rubber
20003738
BA150-125
BA150-125
saddle metall, Ø150-Ø125mm without rubber
20003739

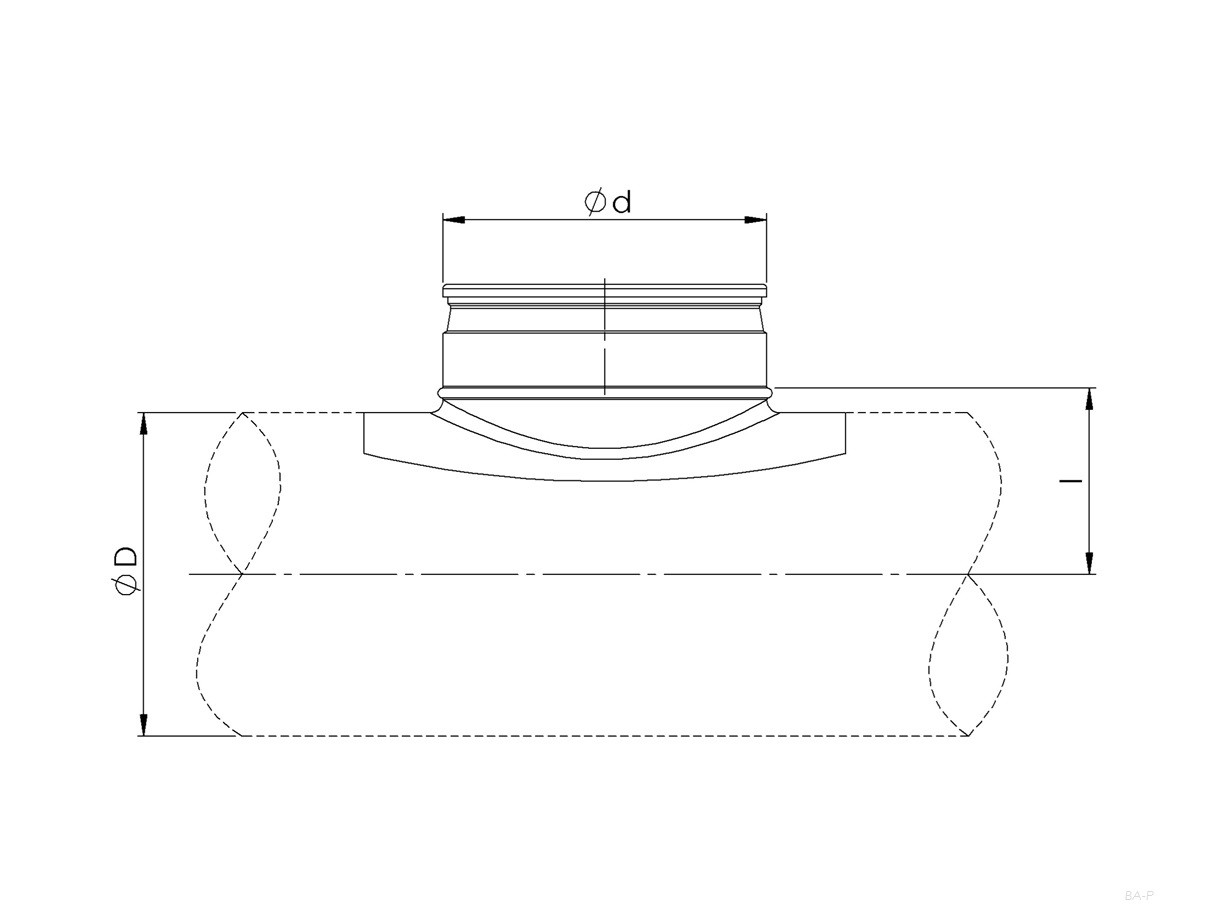

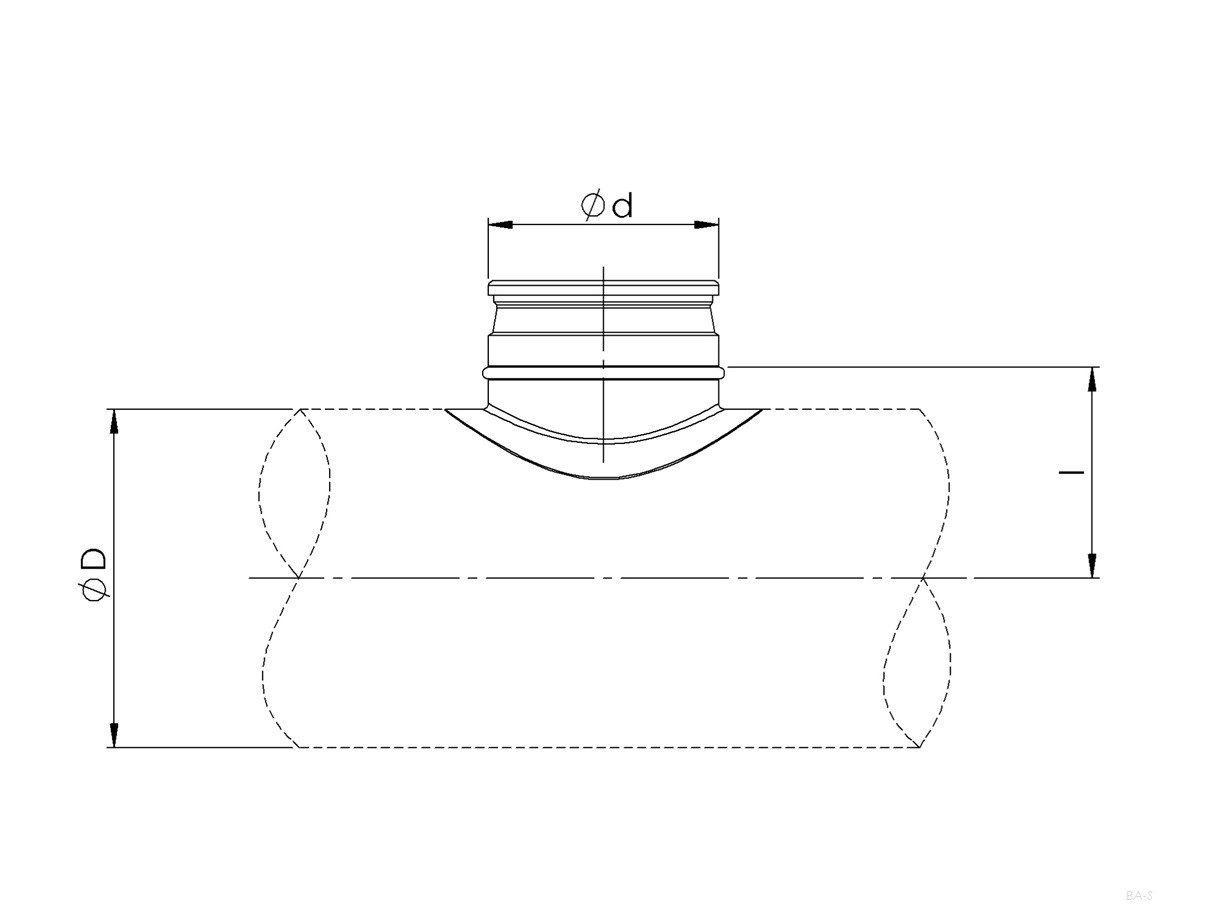

Type

ØD

[mm]

Ød

[mm]

l
[mm]
m
[kg]
BA80-80* 80 80 54 0,10
BA100-80*  100 80 64 0,11
BA100-100* 100 100 71 0,16
BA125-80 125 80 75 0,08
BA125-100* 125 100 79 0,14
BA125-125* 125 125 82 0,19
BA150-80 150 80 85 0,08
BA150-100 150 100 85 0,10
BA150-125 150 125 85 0,14
BA150-150 150 150 85 0,21
BA160-80 160 80 90 0,08
BA160-100* 160 100 97 0,13
BA160-125* 160 125 99 0,18
BA160-150 160 150 90 0,19
BA160-160* 160 160 99 0,32
BA180-80 180 80 100 0,08
BA180-100 180 100 100 0,10
BA180-125 180 125 100 0,14
BA180-150 180 150 100 0,18
BA180-160 180 160 100 0,20
BA180-180 180 180 100 0,28
BA200-80 200 80 110 0,07
BA200-100* 200 100 117 0,12
BA200-125* 200 125 118 0,16
BA200-150 200 150 110 0,17
BA200-160* 200 160 129 0,32
BA200-180 200 180 110 0,24
BA200-200 200 200 110 0,32
BA250-80 250 80 135 0,07
BA250-100* 250 100 146 0,11
BA250-125* 250 125 149 0,16
BA250-150 250 150 135 0,17
BA250-160* 250 160 154 0,28
BA250-180 250 180 135 0,22
BA250-200 250 200 135 0,26
BA250-250 250 250 135 0,48
BA315-80 315 80 168 0,07
BA315-100 315 100 168 0,10
BA315-125 315 125 168 0,13
BA315-150 315 150 168 0,15
BA315-160 315 160 168 0,18
BA315-180 315 180 168 0,21
BA315-200 315 200 168 0,22
BA315-250 315 250 168 0,35
BA315-315 315 315 168 0,63
*Pressed.
Bends can be manufactured in other diameters by choice.
