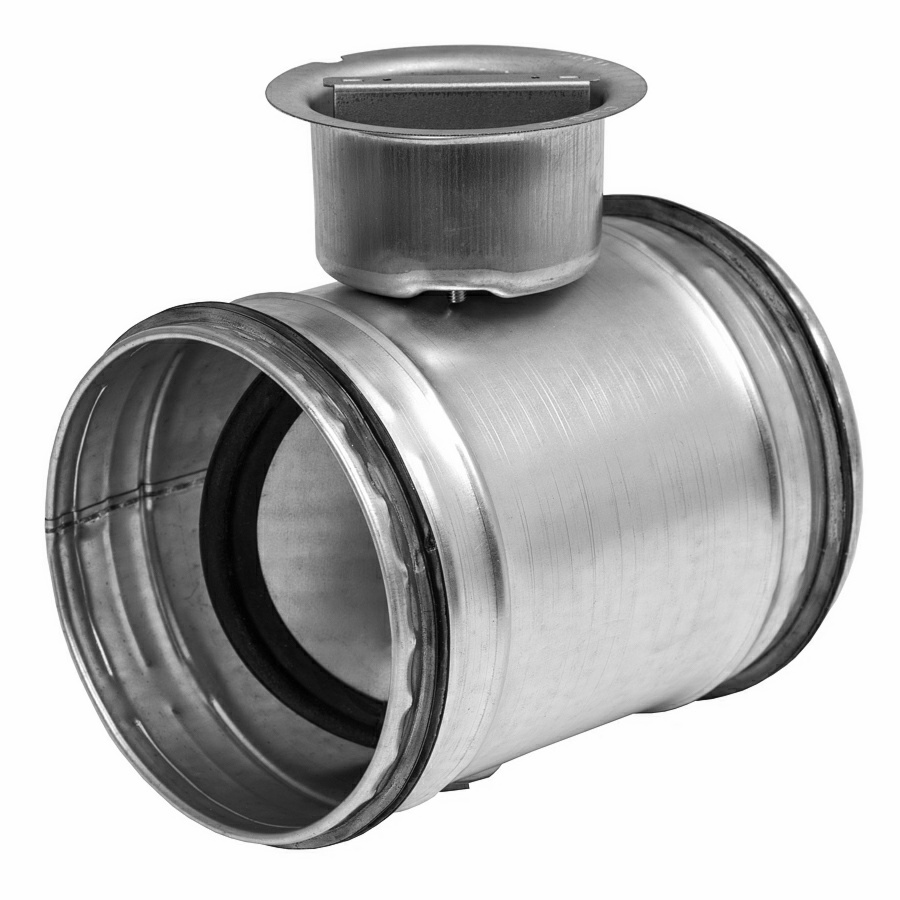

shut-off dampers SKN
Construction:
- Material galvanized steel or other metal
- EPDM seals
- The circular blade is manually adjustable 0–90°
- Metal handle
- Polyamide bushings
Instalation:

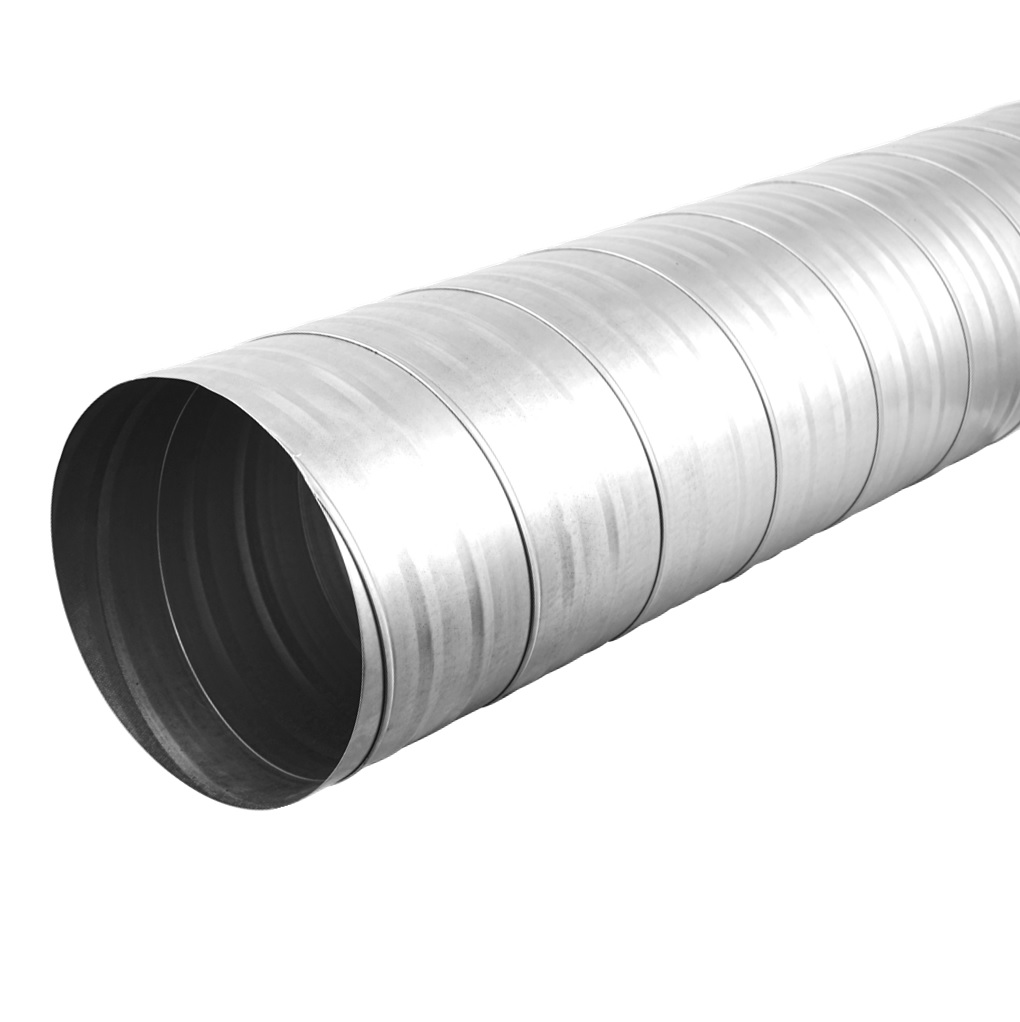

- Instalation in a circular air duct system
Shut-off dampers SKN are used for shutting off and controlling air flow. They are easily installed in a circular air duct system. Can be mounted in any position. Dumpers are equipped with EPDM rubber seal which seals against the inside of the damper when closed. The circular blade is manually adjustable 0–90° with metal handle. Equipped with gaskets. Polyamide bushings.
| Article | Description | EAN | Connection | Class | |
|---|---|---|---|---|---|
|
SKN100
|
shut-off damper, Ø100mm with rubber
|
4750492011843
|
Ø 100 mm | M1 |
|
SKN125
|
shut-off damper, Ø125mm with rubber
|
4750492011850
|
Ø 125 mm | M1 |
|
SKN150
|
shut-off damper, Ø150mm with rubber
|
20003884
|
Ø 150 mm | M1 |
|
SKN160
|
shut-off damper, Ø160mm with rubber
|
4750492011867
|
Ø 160 mm | M1 |
|
SKN180
|
shut-off damper, Ø180mm with rubber
|
20003885
|
Ø 180 mm | M1 |
|
SKN200
|
shut-off damper, Ø200mm with rubber
|
4750492011874
|
Ø 200 mm | M1 |
|
SKN250
|
shut-off damper, Ø250mm with rubber
|
4750492011881
|
Ø 250 mm | M1 |
|
SKN315
|
shut-off damper, Ø315mm with rubber
|
4750492011898
|
Ø 315 mm | M1 |

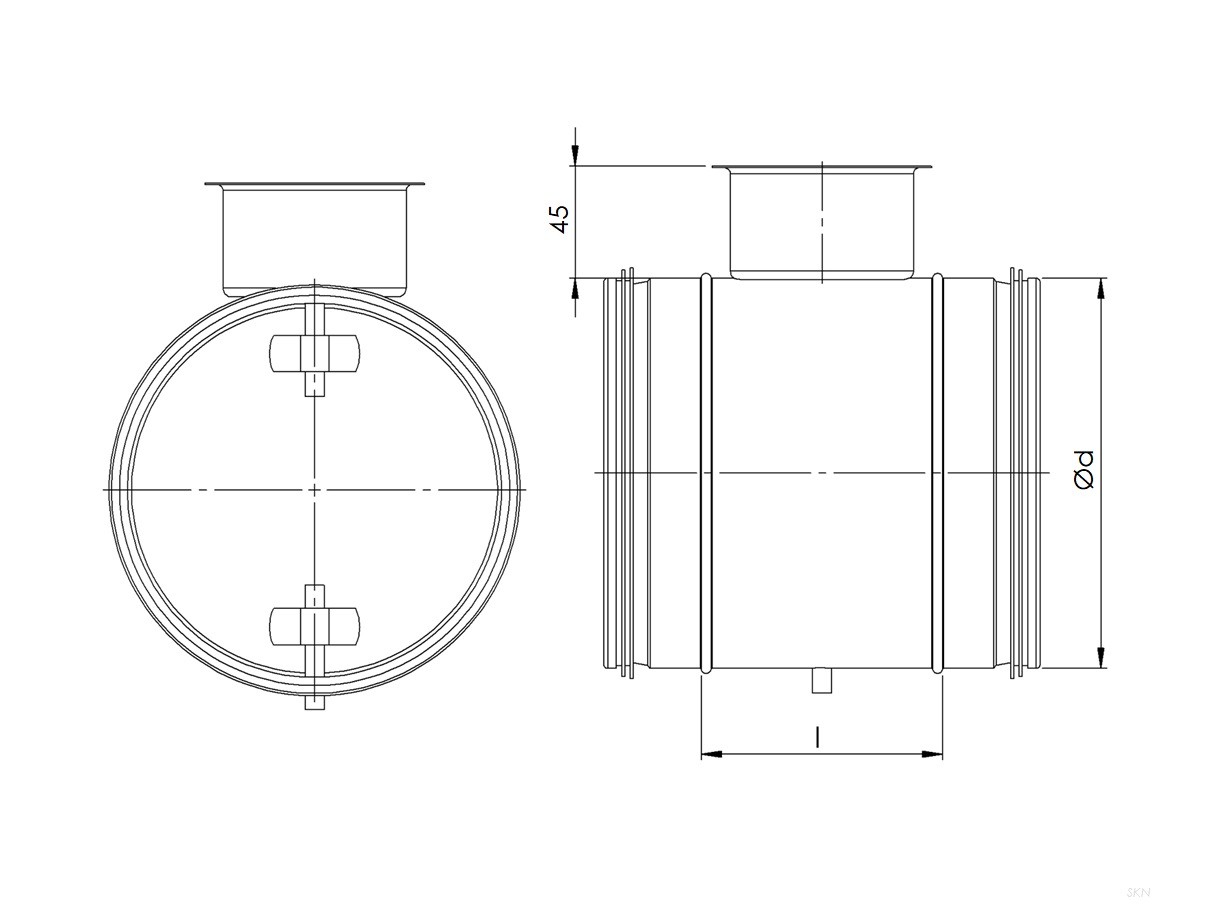

| Type | Ød1 nom [mm] |
l [mm] |
m [kg] |
| SKN80 | 80 | 100 | 0,40 |
| SKN100 | 100 | 100 | 0,45 |
| SKN125 | 125 | 100 | 0,53 |
| SKN150 | 150 | 100 | 0,61 |
| SKN160 | 160 | 100 | 0,65 |
| SKN180 | 180 | 100 | 0,72 |
| SKN200 | 200 | 100 | 0,79 |
| SKN250 | 250 | 100 | 1,1 |
| SKN315 | 315 | 100 | 1,5 |
