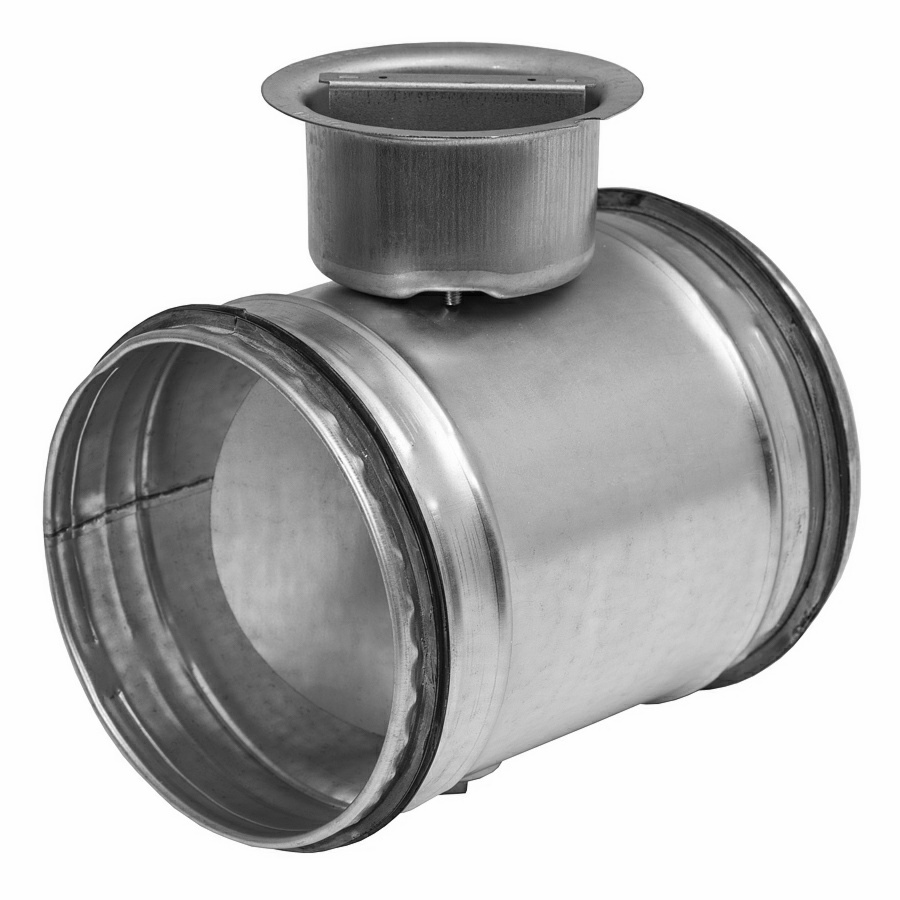

volume control damper SK
Construction:
- Material galvanized steel or other metal
- The circular blade is manually adjustable 0–90°
- Metal handle
- Polyamide bushings (max +150°C)
Instalation:
- Instalation in a circular air duct system
Damper SK for regulating and shut-off, is a good choice when the ductwork closure does not have to be fully airtight. They are easily installed in a circular air duct system. Can be mounted in any position. The circular blade is manually adjustable 0–90° with metal handle. Polyamide bushings
| Description | Connection | |
|---|---|---|
SK100
|
shut-off damper metal, Ø100mm with rubber
|
Ø 100 mm |
SK125
|
shut-off damper metal, Ø125mm with rubber
|
Ø 125 mm |
SK150
|
shut-off damper metal, Ø150mm with rubber
|
Ø 150 mm |
SK160
|
shut-off damper metal, Ø160mm with rubber
|
Ø 160 mm |
SK180
|
shut-off damper metal, Ø180mm with rubber
|
Ø 180 mm |
SK200
|
shut-off damper metal, Ø200mm with rubber
|
Ø 200 mm |
SK250
|
shut-off damper metal, Ø250mm with rubber
|
Ø 250 mm |
SK315
|
shut-off damper metal, Ø315mm with rubber
|
Ø 315 mm |
SK80
|
shut-off damper metal, Ø80mm with rubber
|
Ø 80 mm |

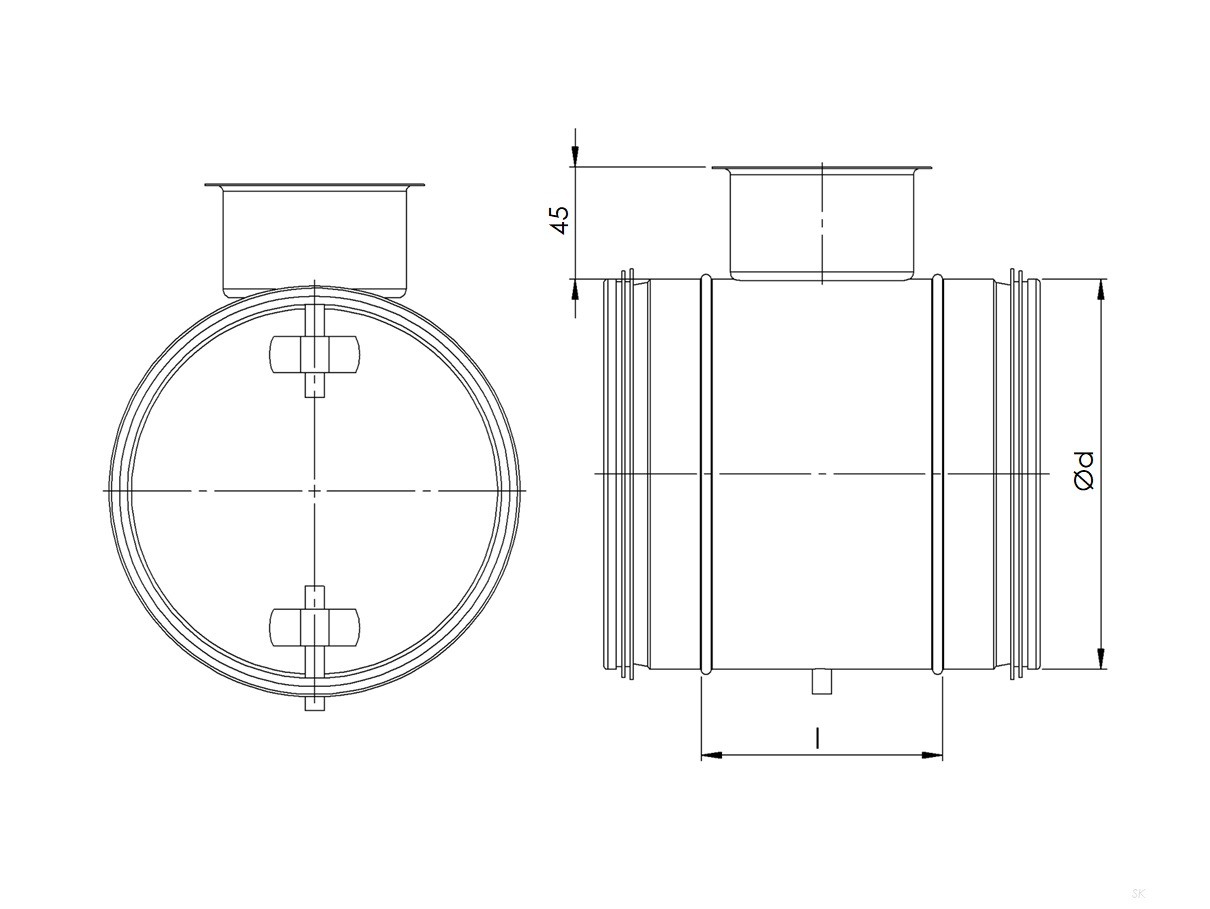

| Type | Ød1 nom [mm] |
l [mm] |
m [kg] |
| SK80 | 80 | 100 | 0,37 |
| SK100 | 100 | 100 | 0,44 |
| SK125 | 125 | 100 | 0,51 |
| SK150 | 150 | 100 | 0,58 |
| SK160 | 160 | 100 | 0,61 |
| SK180 | 180 | 100 | 0,67 |
| SK200 | 200 | 100 | 0,73 |
| SK250 | 250 | 100 | 0,96 |
| SK315 | 315 | 100 | 1,2 |
