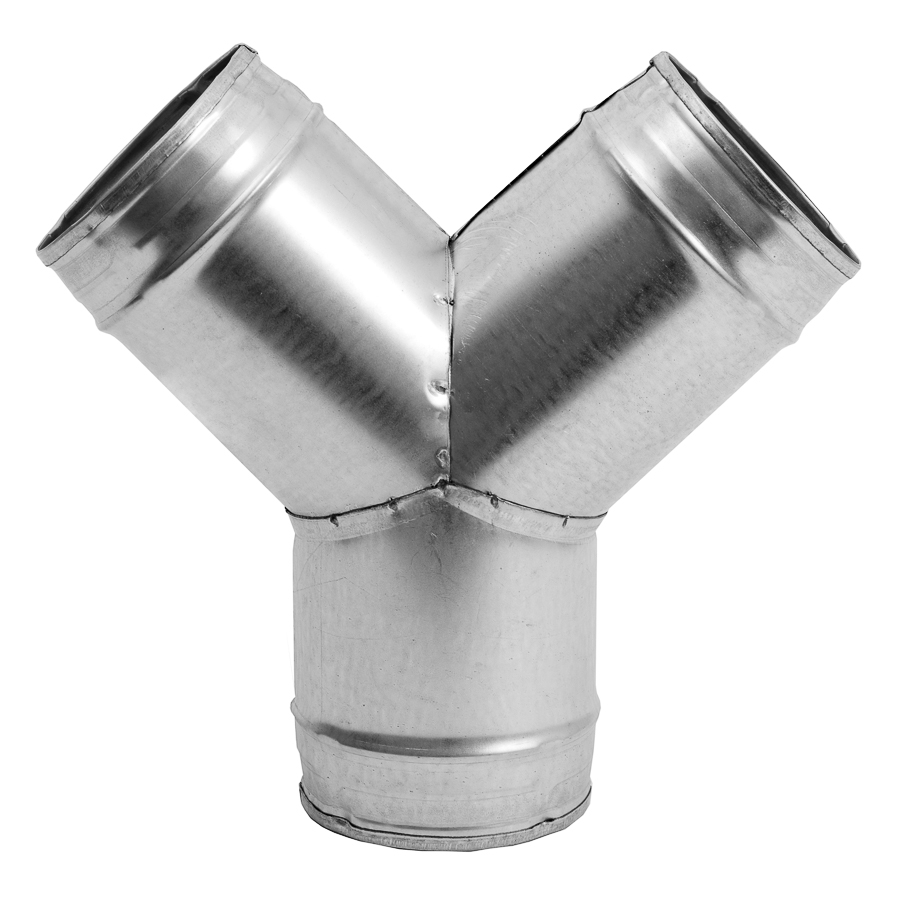

Y-pieces without gaskets YV
Construction:
- Material galvanized steel or other metal
- Segmented
Instalation:
- Easy installation.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
YV100-100-100
|
Y-joint without seal Ø100/Ø100/Ø100mm-45°
|
4750492106365
|
100 mm |
|
YV100-80-80
|
Y-joint without seal Ø100/Ø80/Ø80mm-45°
|
20003131
|
|
|
YV125-100-100
|
Y-joint without seal Ø125/Ø100/Ø100mm-45°
|
4750492211687
|
|
|
YV125-125-125
|
Y-joint without seal Ø125/Ø125/Ø125mm-45°
|
4750492106372
|
125 mm |
|
YV150-100-100
|
Y-joint without seal Ø150/Ø100/Ø100mm-45°
|
20000061
|
|
|
YV150-125-125
|
Y-joint without seal Ø150/Ø125/Ø125mm-45°
|
20000063
|
|
|
YV150-150-150
|
Y-joint without seal Ø150/Ø150/Ø150mm-45°
|
20000064
|
|
|
YV160-100-100
|
Y-joint without seal Ø160/Ø100/Ø100mm-45°
|
20003202
|
|
|
YV160-125-125
|
Y-joint without seal Ø160/Ø125/Ø125mm-45°
|
4750492106402
|
|
|
YV160-160-160
|
Y-joint without seal Ø160/Ø160/Ø160mm-45°
|
4750492106389
|
160 mm |

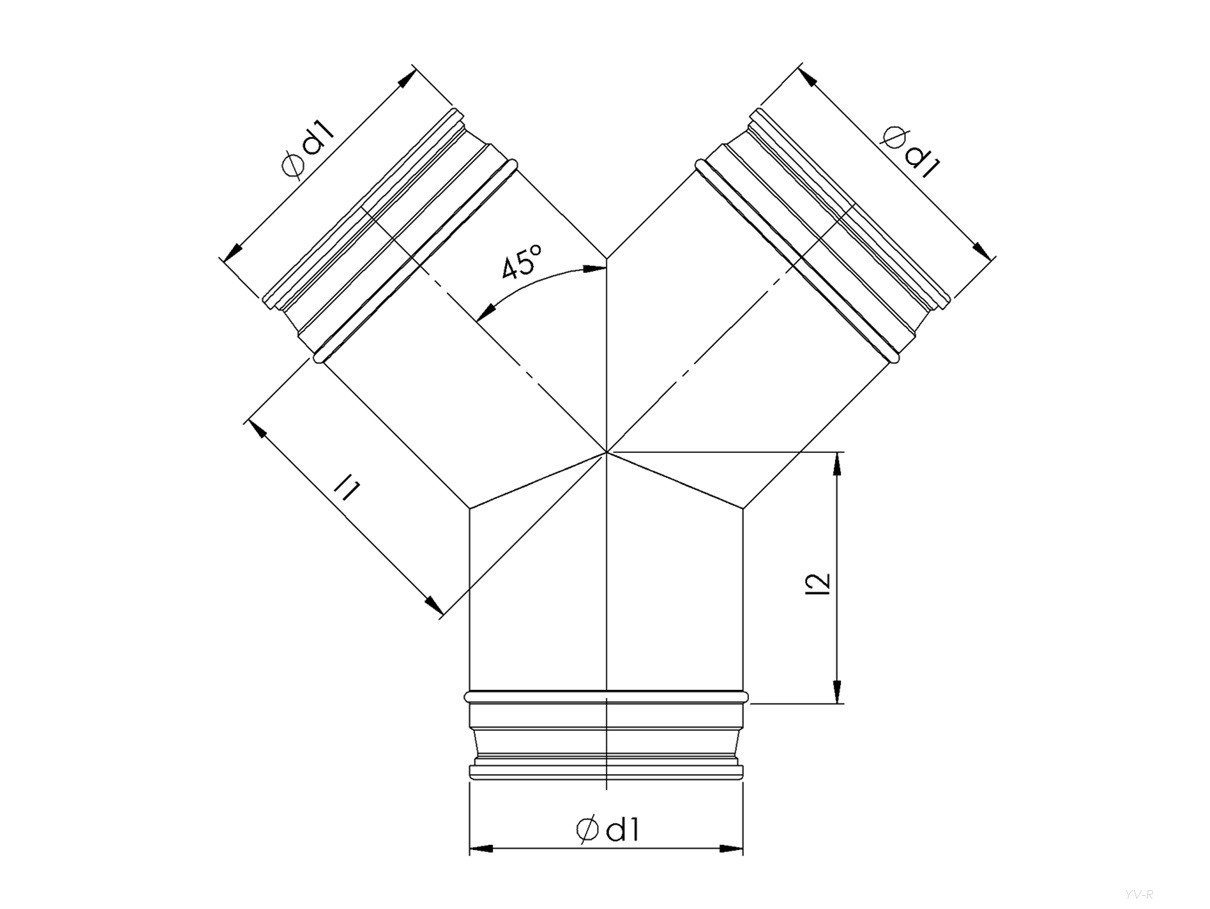

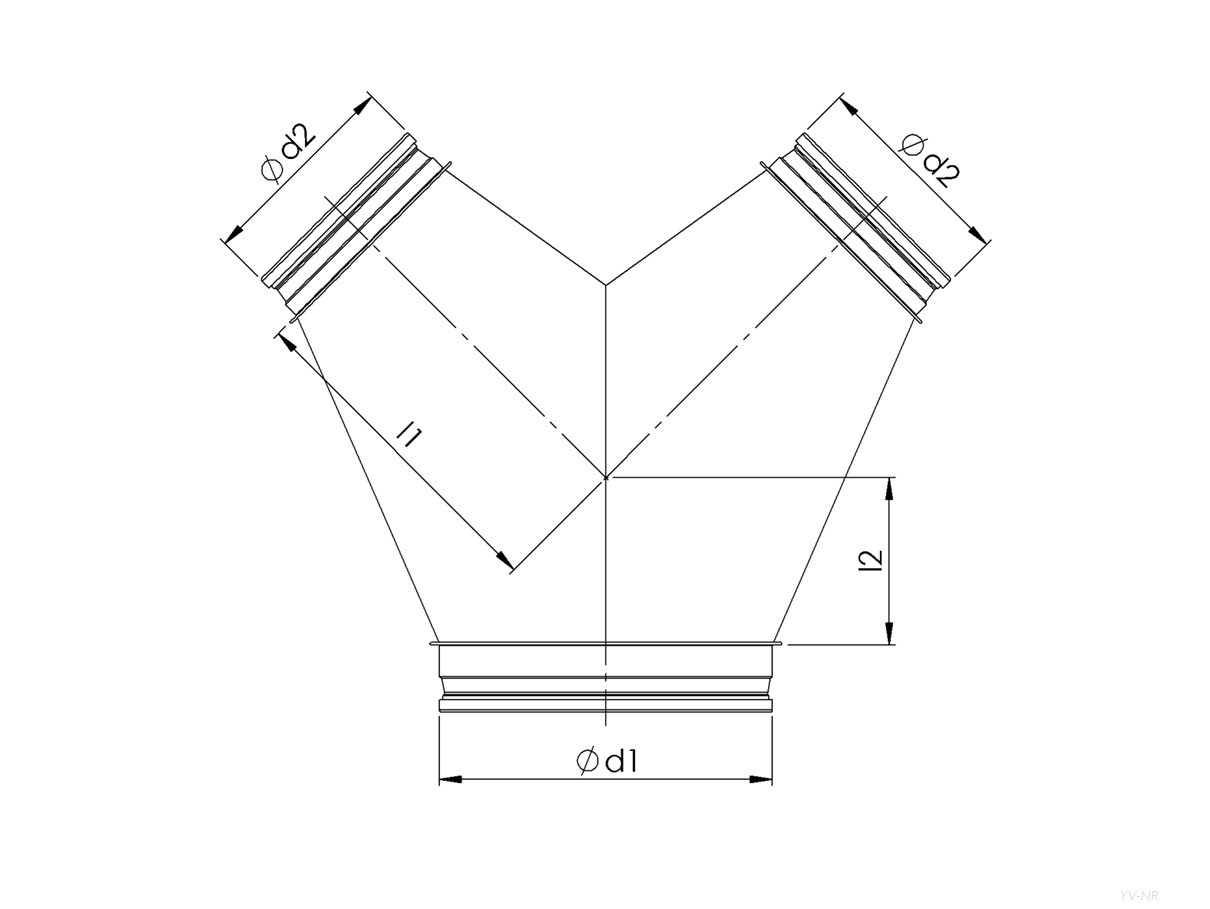

| Type |
Ød1 [mm] |
Ød2 [mm] |
l1 [mm] |
l2 [mm] |
m [kg] |
| YV80-80-80 | 80 | - | 90 | 66,6 | 0,29 |
| YV100-80-80 | 100 | 80 | 125 | 50 | 0,35 |
| YV100-100-100 | 100 | - | 100 | 70,7 | 0,40 |
| YV125-100-100 | 125 | 100 | 125 | 62,5 | 0,50 |
| YV125-125-125 | 125 | - | 112,5 | 76 | 0,50 |
| YV150-100-100 | 150 | 100 | 150 | 75 | 0,55 |
| YV150-125-125 | 150 | 125 | 150 | 75 | 0,56 |
| YV150-150-150 | 150 | - | 125 | 81 | 0,64 |
| YV160-100-100 | 160 | 100 | 160 | 80 | 0,61 |
| YV160-125-125 | 160 | 125 | 160 | 80 | 0,63 |
| YV160-160-160 | 160 | - | 130 | 83 | 0,69 |
| YV180-125-125 | 180 | 125 | 180 | 90 | 0,77 |
| YV180-150-150 | 180 | 150 | 180 | 90 | 0,79 |
| YV180-160-160 | 180 | 160 | 180 | 90 | 0,80 |
| YV180-180-180 | 180 | - | 140 | 83 | 0,81 |
| YV200-125-125 | 200 | 125 | 200 | 100 | 0,93 |
| YV200-150-150 | 200 | 150 | 200 | 100 | 0,95 |
| YV200-160-160 | 200 | 160 | 200 | 100 | 0,96 |
| YV200-200-200 | 200 | - | 150 | 91,5 | 0,94 |
| YV250-125-125 | 250 | 125 | 250 | 125 | 1,40 |
| YV250-160-160 | 250 | 160 | 250 | 125 | 1,50 |
| YV250-200-200 | 250 | 200 | 250 | 125 | 1,50 |
| YV250-250-250 | 250 | - | 185 | 112 | 1,50 |
| YV315-125-125 | 315 | 125 | 315 | 157,5 | 2,10 |
| YV315-160-160 | 315 | 160 | 315 | 157,5 | 2,20 |
| YV315-200-200 | 315 | 200 | 315 | 157,5 | 2,30 |
| YV315-250-250 | 315 | 250 | 315 | 157,5 | 2,30 |
| YV315-315-315 | 315 | - | 217,5 | 125 | 2,00 |
Y-joints can be manufactured in other diameters by choice.
