bends without gaskets BF45°

Construction:

  • Material galvanized steel or other metal
  • Pressed
  • Segmented



Instalation:

  • Easy installation.



Information: Bends can be manufactured in other diameters by choice.

Bends are used for installation of spiral ducts and plain ducts.

Connection

Sort by

Article Description EAN Connection
BF45-100
BF45-100
elbow metal, 45°- Ø100mm without rubber, extruded
4750492210499
100 mm
BF45-125
BF45-125
elbow metal, 45°- Ø125mm without rubber, extruded
4750492210451
125 mm
BF45-150
BF45-150
elbow metal, 45°- Ø150mm without rubber
20000447
150 mm
BF45-160
BF45-160
elbow metal, 45°- Ø160mm without rubber
4750492210468
160 mm
BF45-180
BF45-180
elbow metal, 45°- Ø180mm without rubber
20003307
180 mm
BF45-200
BF45-200
elbow metal, 45°- Ø200mm without rubber
4750492106341
200 mm
BF45-250
BF45-250
elbow metal, 45°- Ø250mm without rubber
4750492210475
250 mm
BF45-315
BF45-315
elbow metal, 45°- Ø315mm without rubber
4750492210482
315 mm
BF45-80
BF45-80
elbow metal, 45°- Ø80mm without rubber, extruded
4750492220191
80 mm

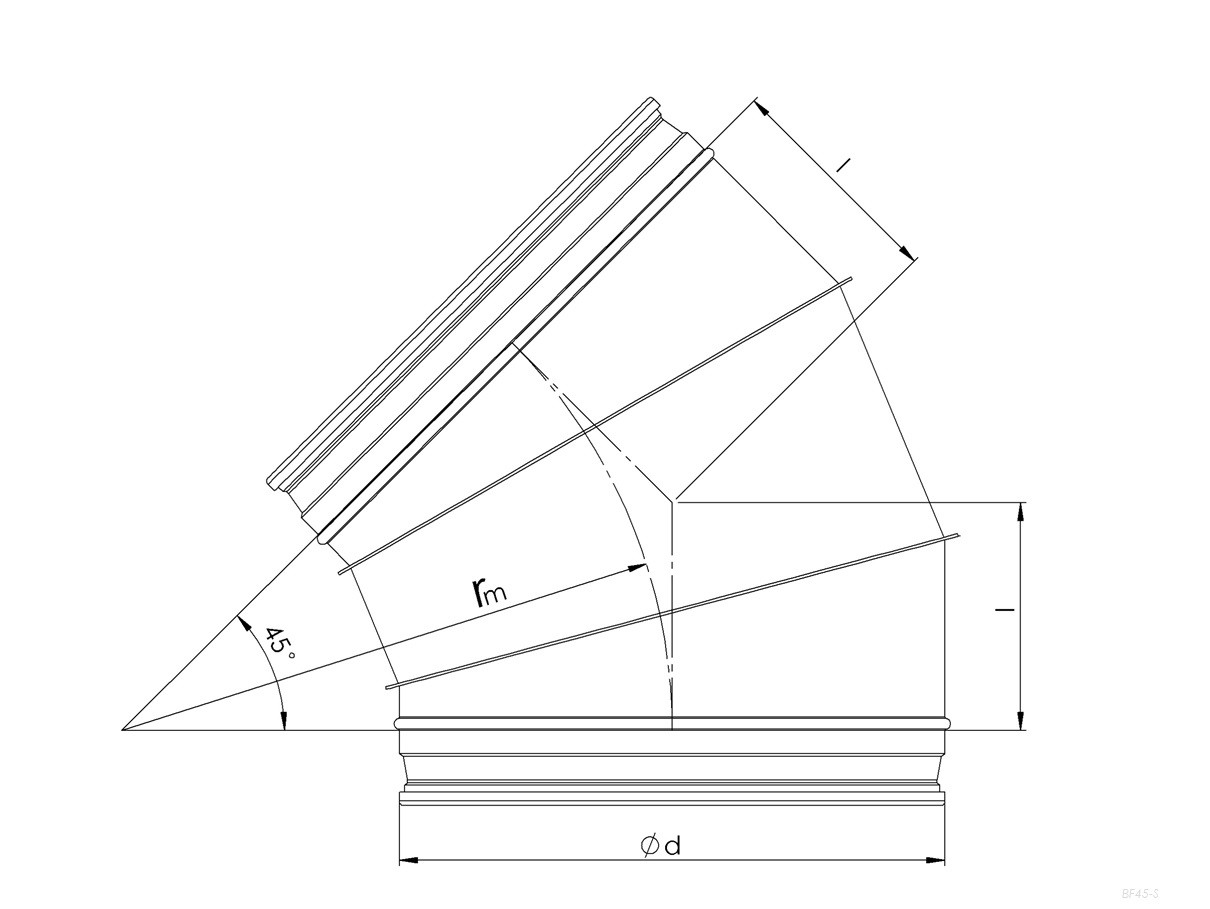

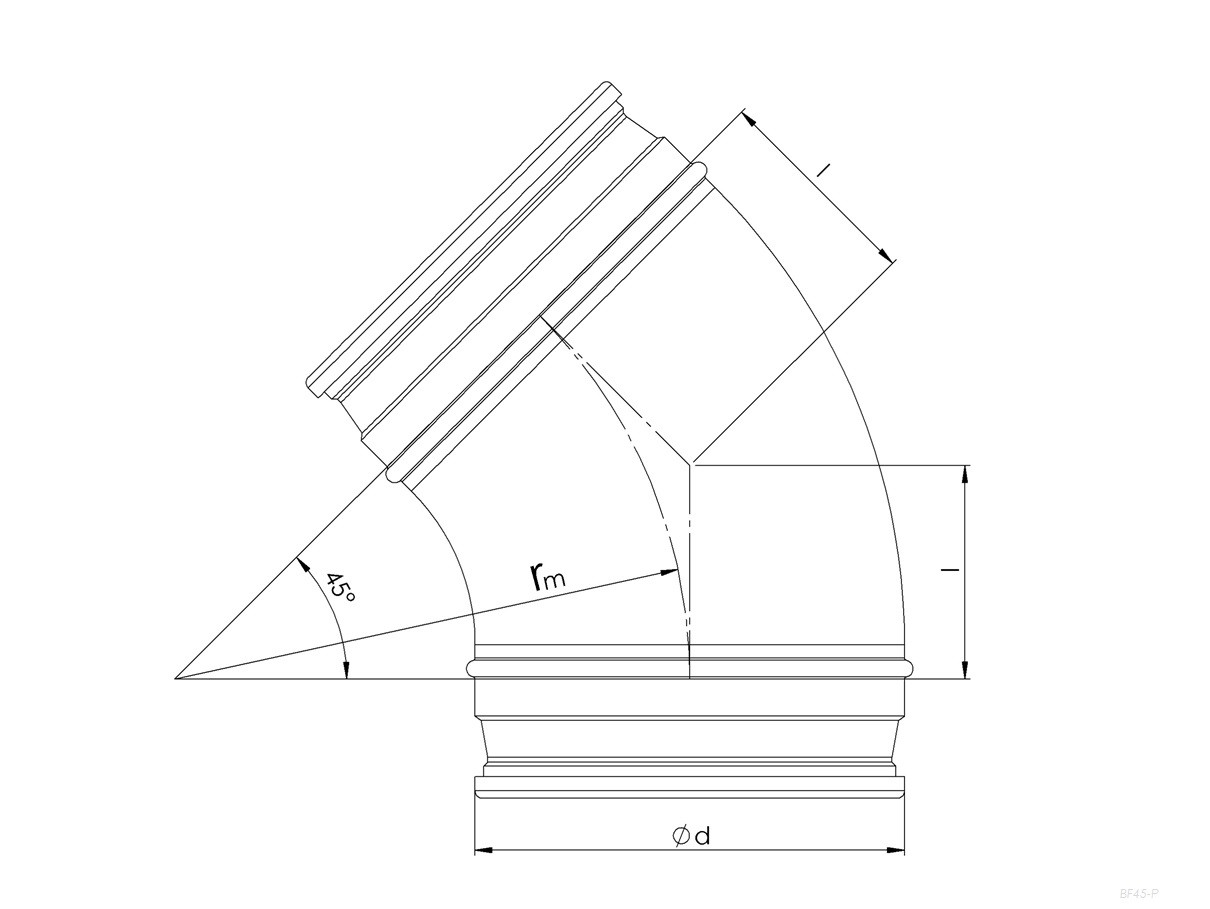

Type Ød nom
[mm]
rm
[mm]
l
[mm]
m
[kg]
BF45-80* 80 100 41 0,17
BF45-100* 100 100 41 0,23
BF45-125* 125 125 52 0,30
BF45-150 150 150 62 0,45
BF45-160 160 160 66 0,50
BF45-180 180 180 74 0,60
BF45-200 200 200 82 0,71
BF45-250 250 250 103 1,1
BF45-300 300 300 123 1,1
BF45-315 315 315 129 1,6
BF45-355 355 355 146 3,2
BF45-400 400 400 164 3,9
BF45-450 450 450 185 4,8
BF45-500 500 500 205 5,8
BF45-560 560 560 230 7,1
BF45-630 630 630 258 8,7
*Pressed.
Bends can be manufactured in other diameters by choice.
