bends without gaskets BF60°
Construction:
- Material galvanized steel or other metal
- Pressed
- Segmented
Instalation:
- Easy installation.
Information: Bends can be manufactured in other diameters by choice.
Bends are used for installation of spiral ducts and plain ducts.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
BF60-100
|
elbow metal, 60°- Ø100mm without rubber
|
4750492106426
|
100 mm |
|
BF60-125
|
elbow metal, 60°- Ø125mm without rubber
|
4750492106419
|
125 mm |
|
BF60-150
|
elbow metal, 60°- Ø150mm without rubber
|
20000467
|
150 mm |
|
BF60-160
|
elbow metal, 60°- Ø160mm without rubber
|
4750492106358
|
160 mm |
|
BF60-180
|
elbow metal, 60°- Ø180mm without rubber
|
20003300
|
180 mm |
|
BF60-200
|
elbow metal, 60°- Ø200mm without rubber
|
4750492210505
|
200 mm |
|
BF60-250
|
elbow metal, 60°- Ø250mm without rubber
|
4750492210512
|
250 mm |
|
BF60-315
|
elbow metal, 60°- Ø315mm without rubber
|
4750492210529
|
315 mm |
|
BF60-80
|
elbow metal, 60°- Ø80mm without rubber, extruded
|
20000477
|
80 mm |

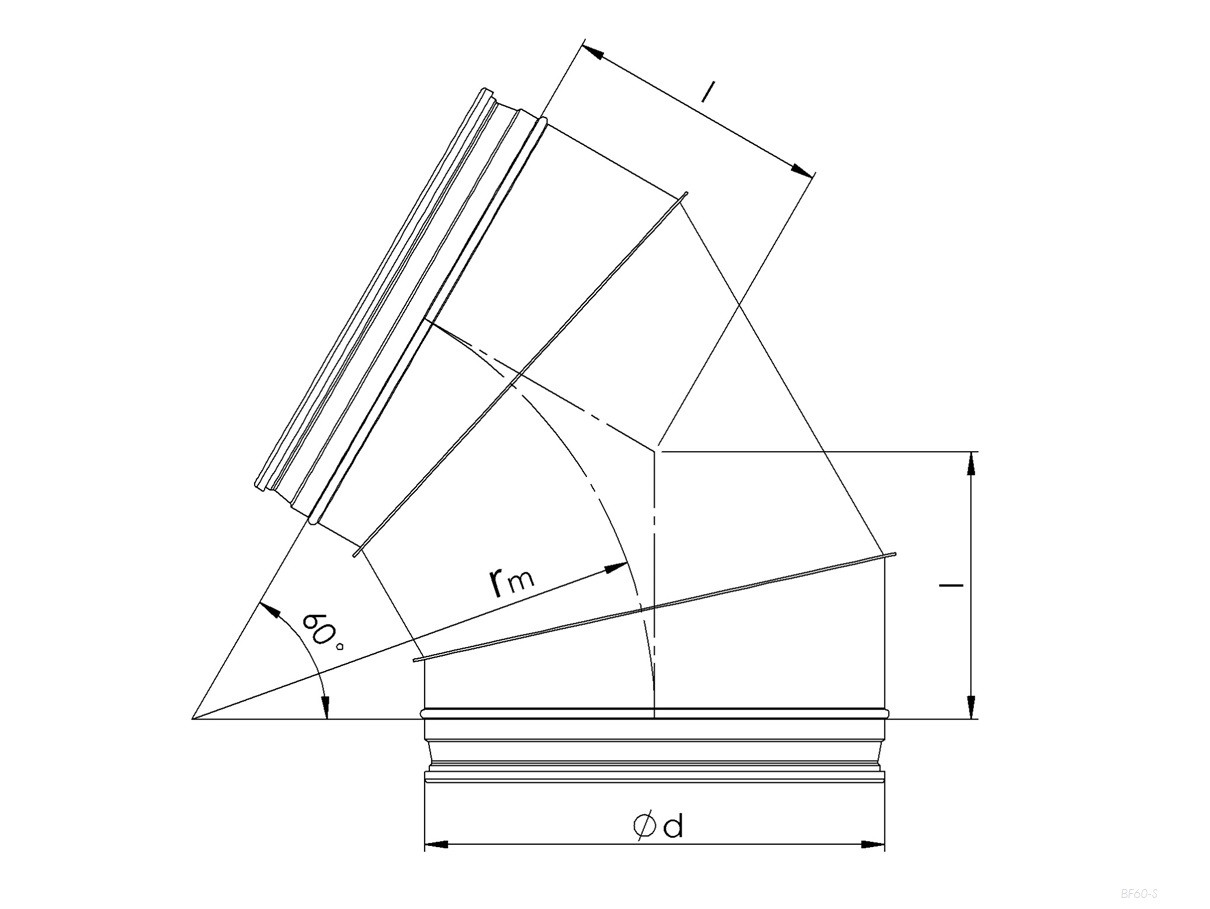

| Type | Ød nom [mm] |
rm [mm] |
l [mm] |
m [kg] |
| BF60-80* | 80 | 100 | 58 |
0,20 |
| BF60-100 | 100 | 100 | 58 | 0,29 |
| BF60-125 | 125 | 125 | 72 | 0,44 |
| BF60-150 | 150 | 150 | 87 | 0,63 |
| BF60-160 | 160 | 160 | 92 | 0,70 |
| BF60-180 | 180 | 180 | 104 | 0,85 |
| BF60-200 | 200 | 200 | 115 | 0,96 |
| BF60-250 | 250 | 250 | 144 | 1,1 |
| BF60-315 | 315 | 315 | 182 | 2,2 |

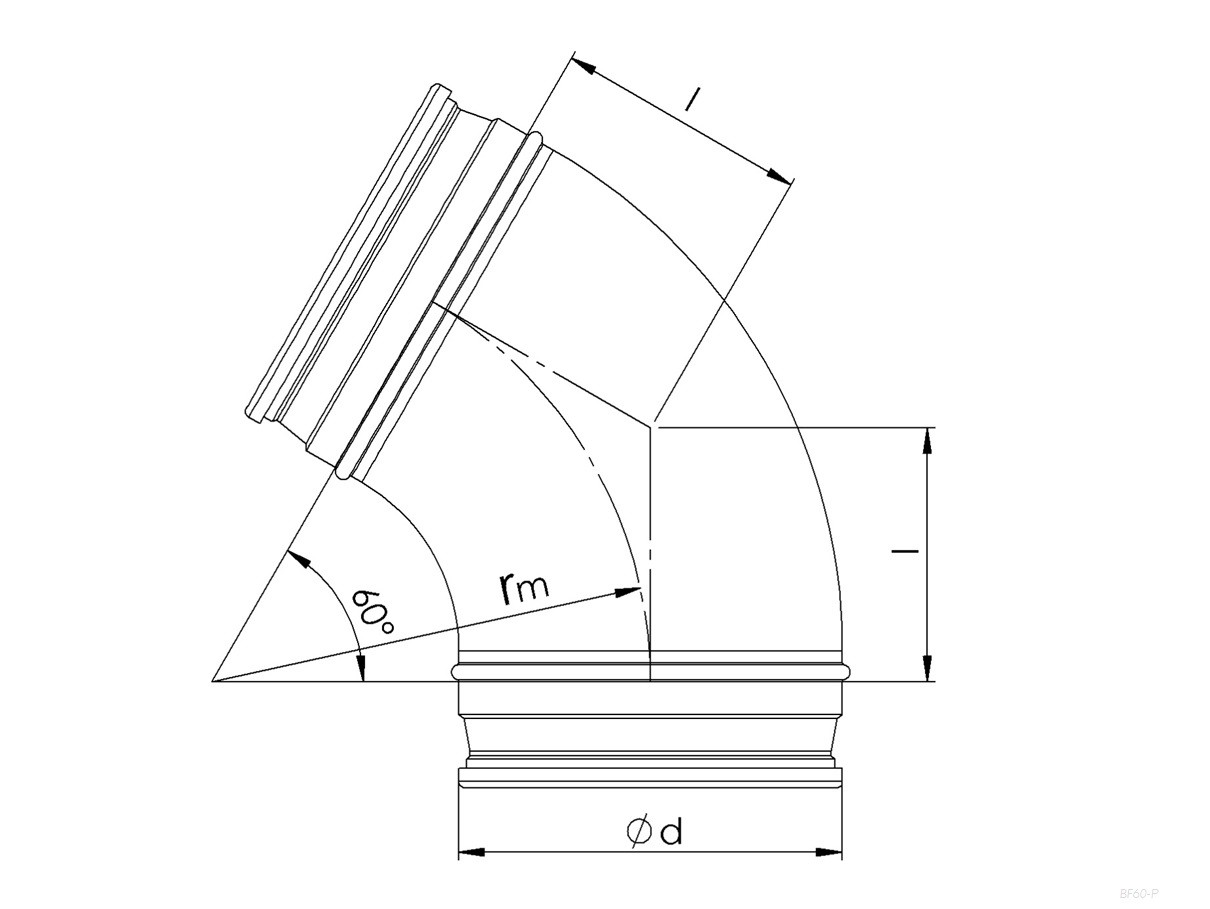

*Pressed.
Bends can be manufactured in other diameters by choice
