Construction:
Instalation:
Information: Bends can be manufactured in other diameters by choice.

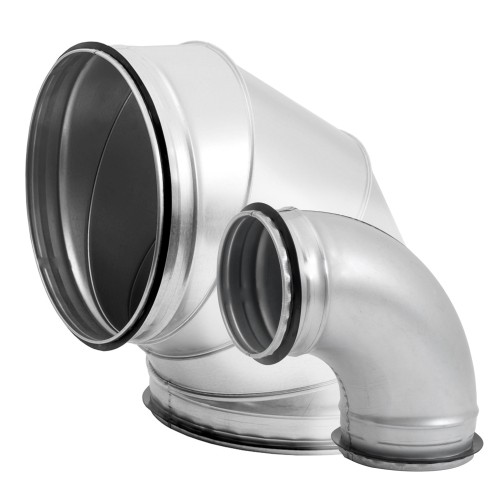

Bends are used for installation of spiral ducts and plain ducts.
Description | Connection | Class | |
---|---|---|---|
![]() BFS90-100
|

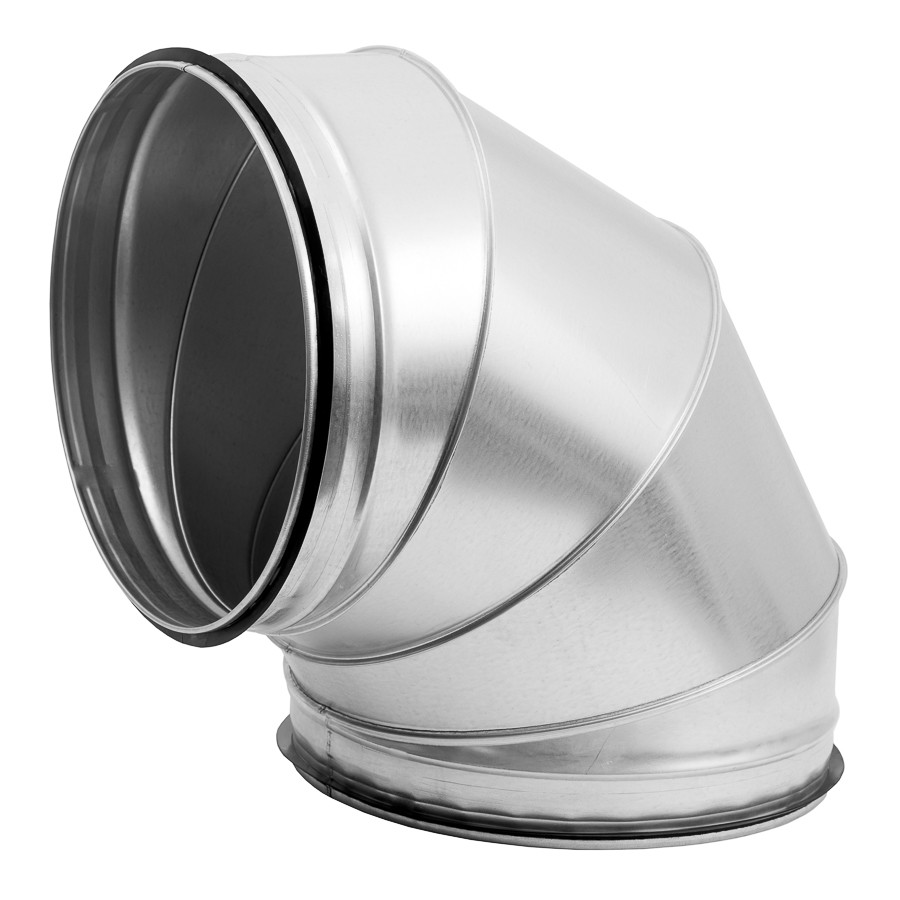

elbow metal, 90°- Ø100mm with rubber, extruded
|
100 mm | M1;D |
![]() BFS90-125
|
elbow metal, 90°- Ø125mm with rubber, extruded
|
125 mm | M1;D |
![]() BFS90-150
|

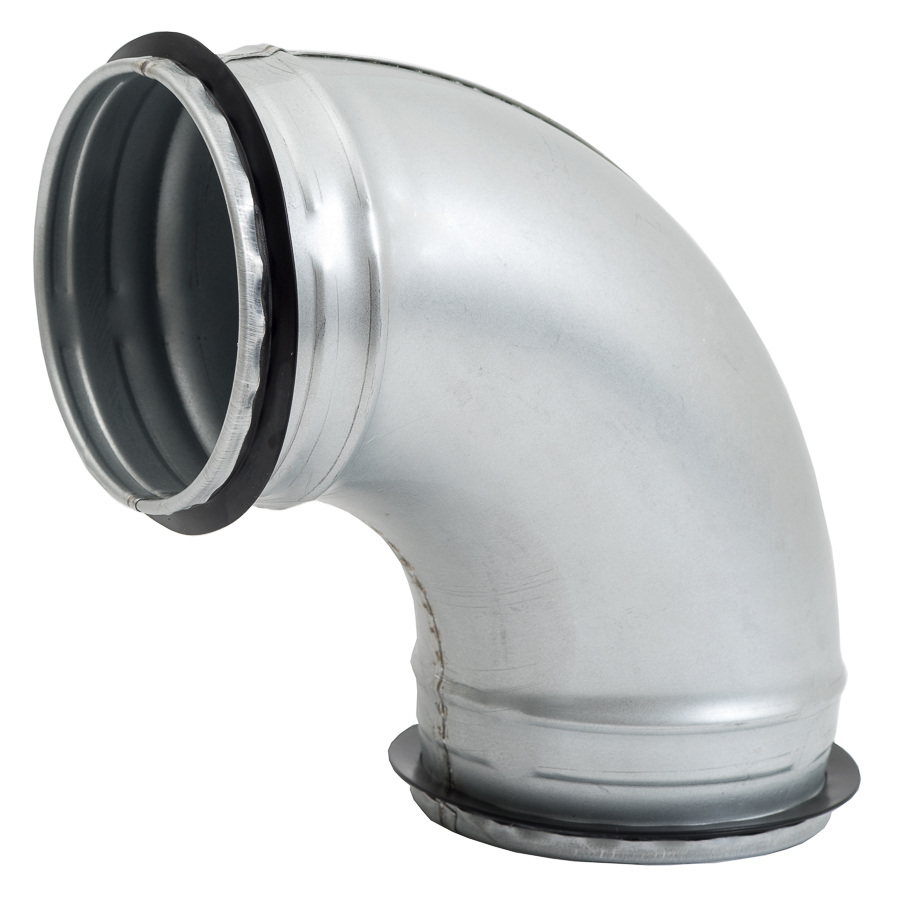

elbow metal, 90°- Ø150mm with rubber
|
150 mm | M1;D |
![]() BFS90-160
|
elbow metal, 90°- Ø160mm with rubber
|
160 mm | M1;D |
![]() BFS90-180
|
elbow metal, 90°- Ø180mm with rubber
|
180 mm | M1;D |
![]() BFS90-200
|
elbow metal, 90°- Ø200mm with rubber
|
200 mm | M1;D |
![]() BFS90-250
|
elbow metal, 90°- Ø250mm with rubber
|
250 mm | M1 |
![]() BFS90-315
|
elbow metal, 90°- Ø315mm with rubber
|
315 mm | M1 |
![]() BFS90-80
|
elbow metal, 90°- Ø80mm with rubber, extruded
|
80 mm | M1 |

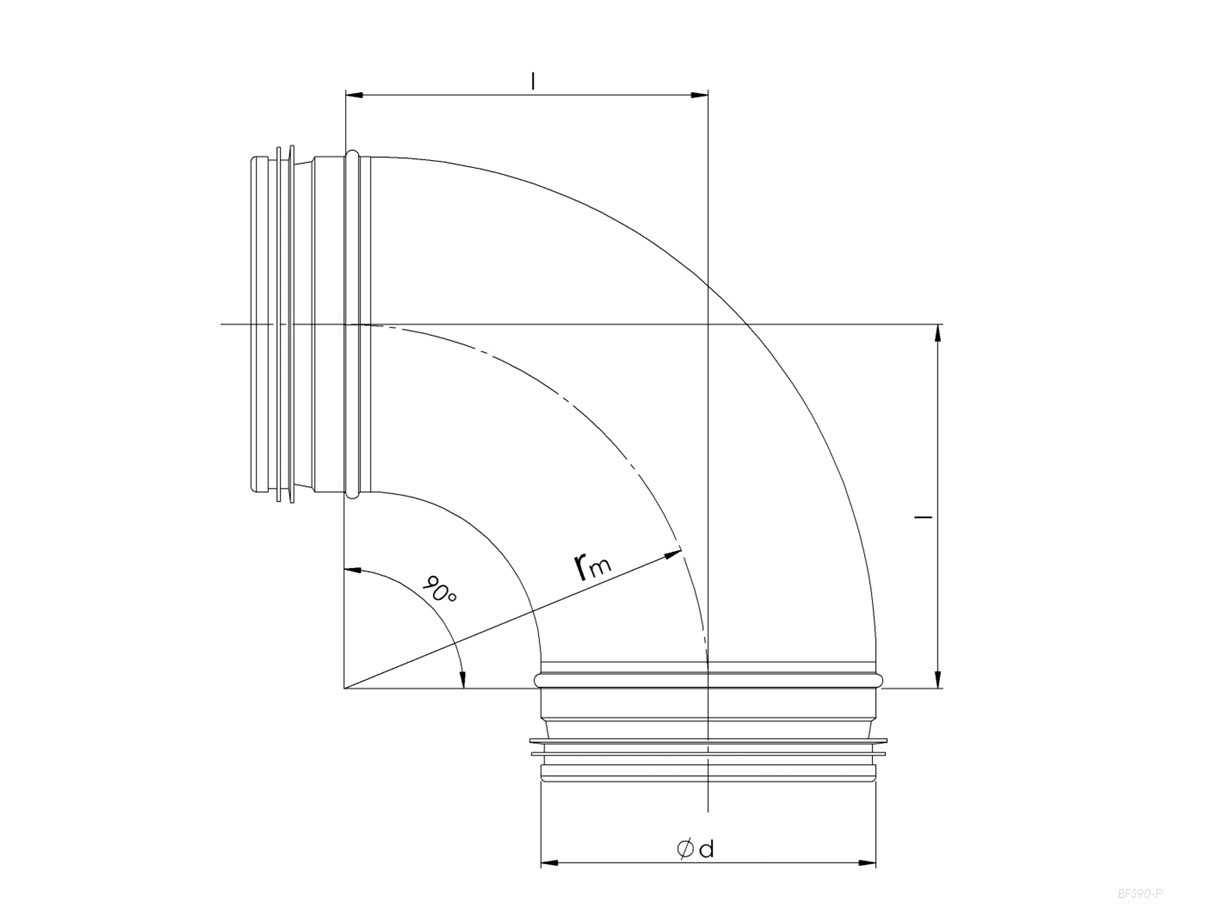

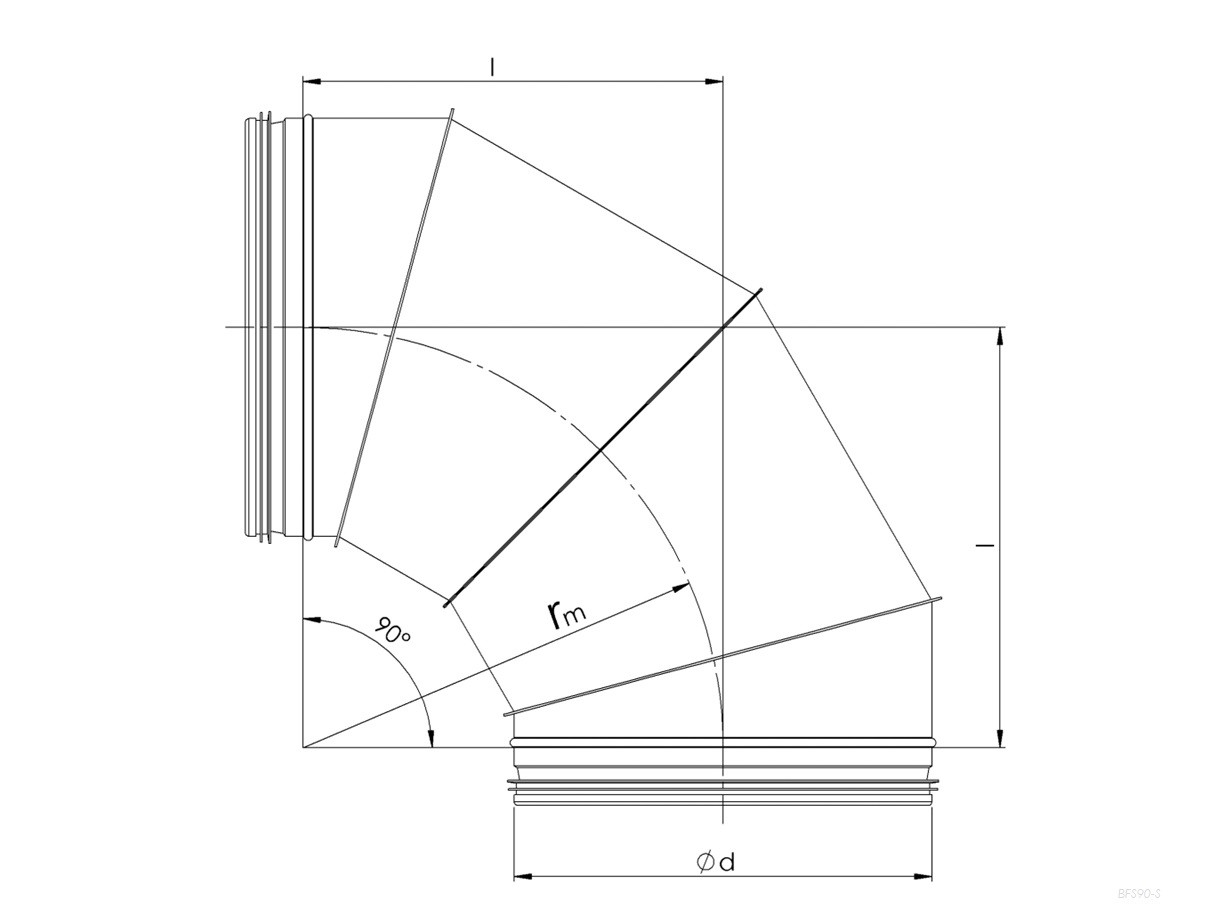

Type | Ød nom [mm] |
rm [mm] |
l [mm] |
m [kg] |
BFS90-80* | 80 | 100 | 100 |
0,24 |
BFS90-100* | 100 | 100 | 100 | 0,31 |
BFS90-125* | 125 | 125 | 125 | 0,46 |
BFS90-150 | 150 | 150 | 150 | 0,65 |
BFS90-160 | 160 | 160 | 160 | 0,72 |
BFS90-180 | 180 | 180 | 180 | 0,88 |
BFS90-200 | 200 | 200 | 200 | 1,05 |
BFS90-250 | 250 | 250 | 250 | 1,6 |
BFS90-315 | 315 | 315 | 315 | 2,4 |
