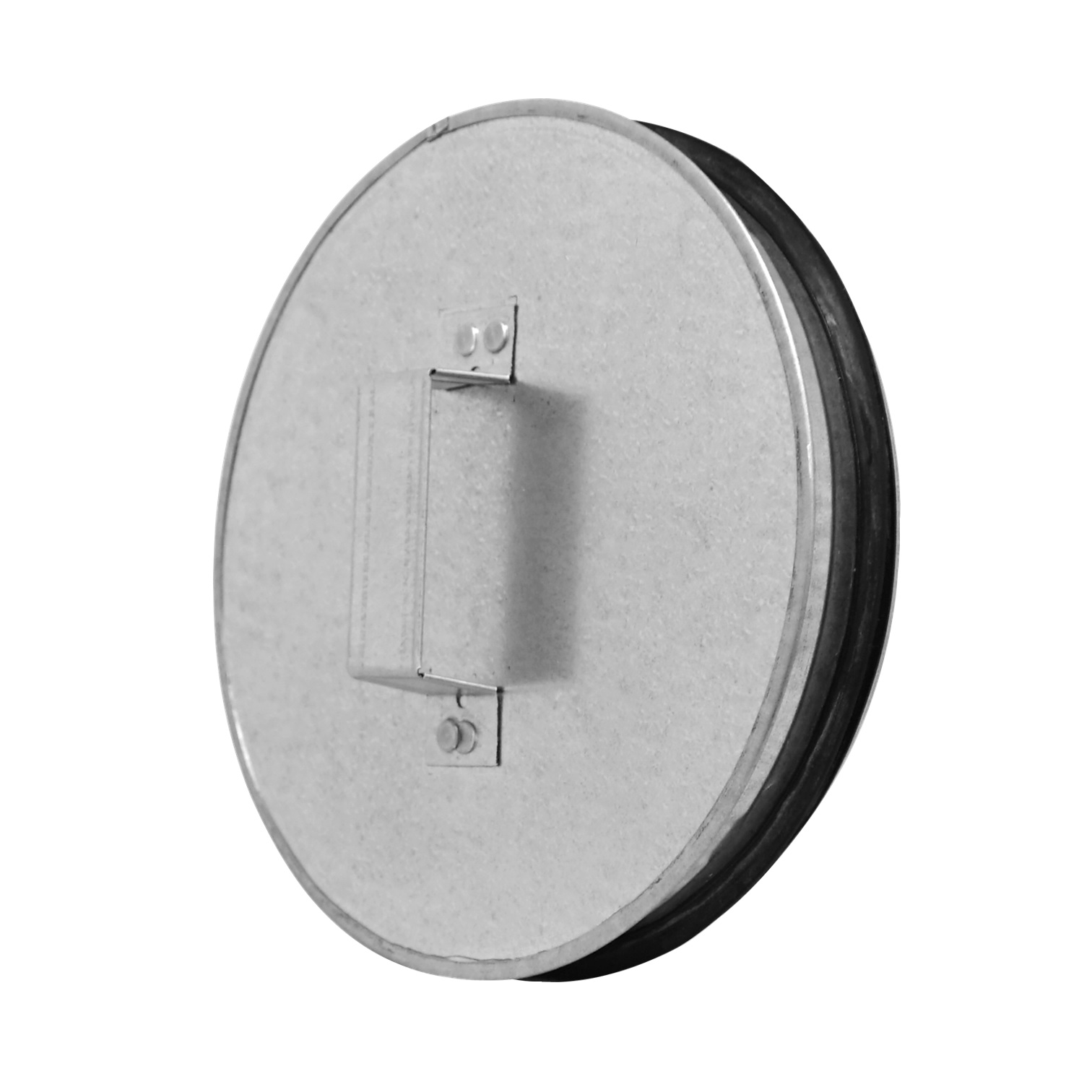

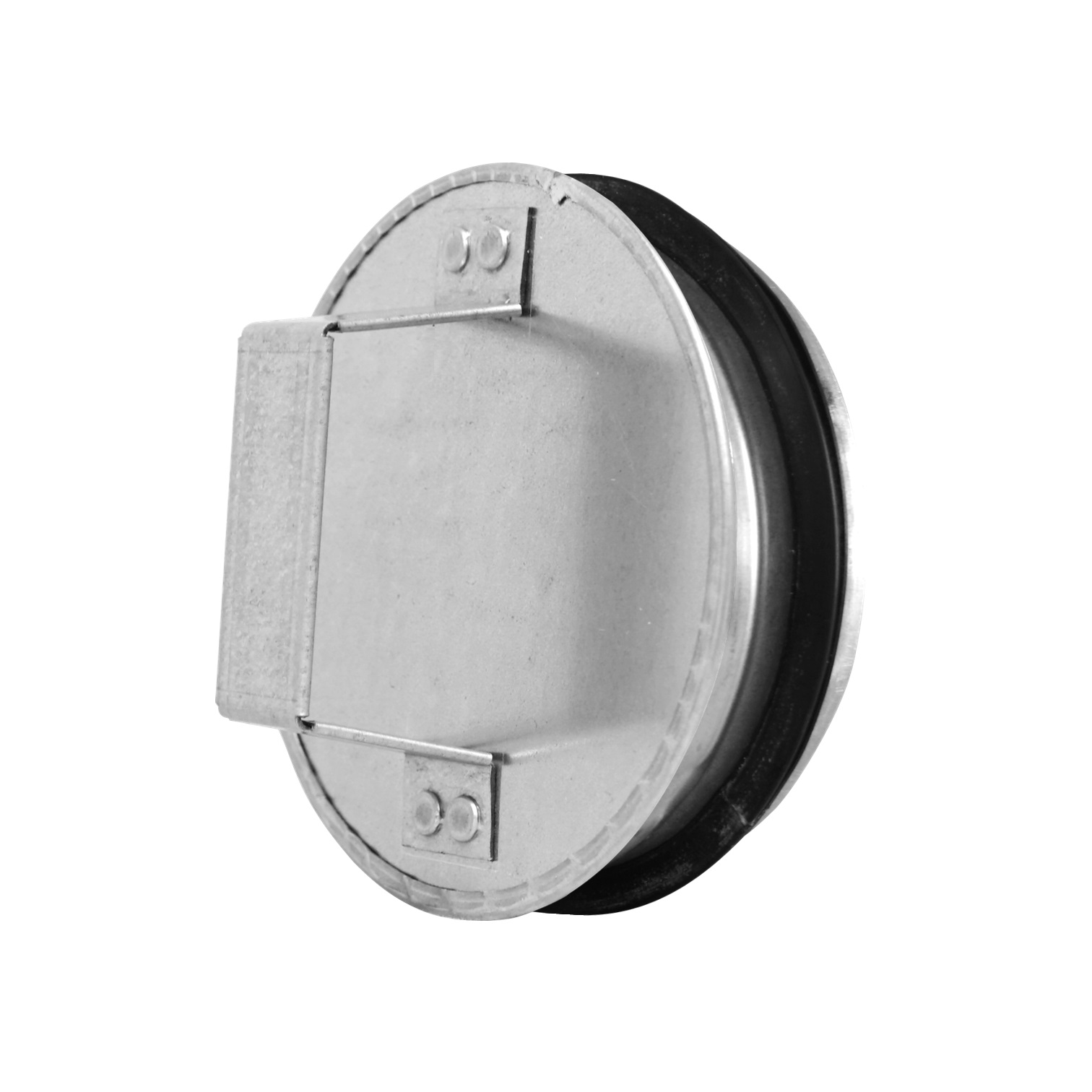

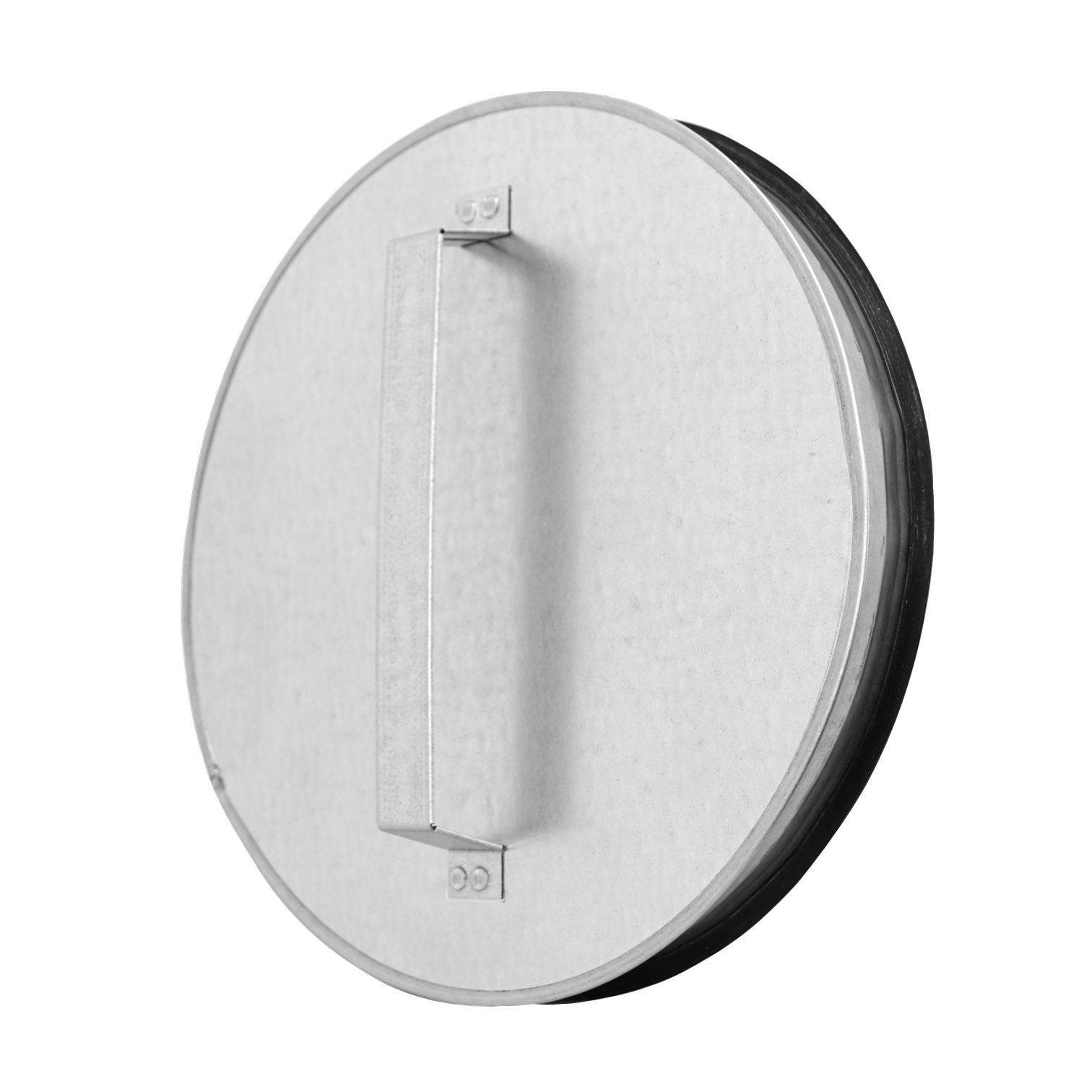

end caps for ducts with handle with gaskets ESHS
Construction:
- Material galvanized steel or other metal
- EPDM rubber seal
Instalation:
- Male type end connection
Information: Standard insertion length 33 mm and 43 mm, optionaly can be ordered in other lengths.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
ESHS100
|
end cap for ducts with handle, metal, Ø100mm, with gaskets
|
4750492022566
|
100 mm |
|
ESHS125
|
end cap for ducts with handle, metal, Ø125mm, with gaskets
|
4750492022573
|
125 mm |
|
ESHS150
|
end cap for ducts with handle, metal, Ø150mm, with gaskets
|
20201056
|
150 mm |
|
ESHS160
|
end cap for ducts with handle, metal, Ø160mm, with gaskets
|
4750492022580
|
160 mm |
|
ESHS180
|
end cap for ducts with handle, metal, Ø180mm, with gaskets
|
20201058
|
180 mm |
|
ESHS200
|
end cap for ducts with handle, metal, Ø200mm, with gaskets
|
4750492022597
|
200 mm |
|
ESHS250
|
end cap for ducts with handle, metal, Ø250mm, with gaskets
|
20201060
|
250 mm |
|
ESHS315
|
end cap for ducts with handle, metal, Ø315mm, with gaskets
|
20201062
|
315 mm |
|
ESHS80
|
end cap for ducts with handle, metal, Ø80mm, with gaskets
|
20201054
|
80 mm |

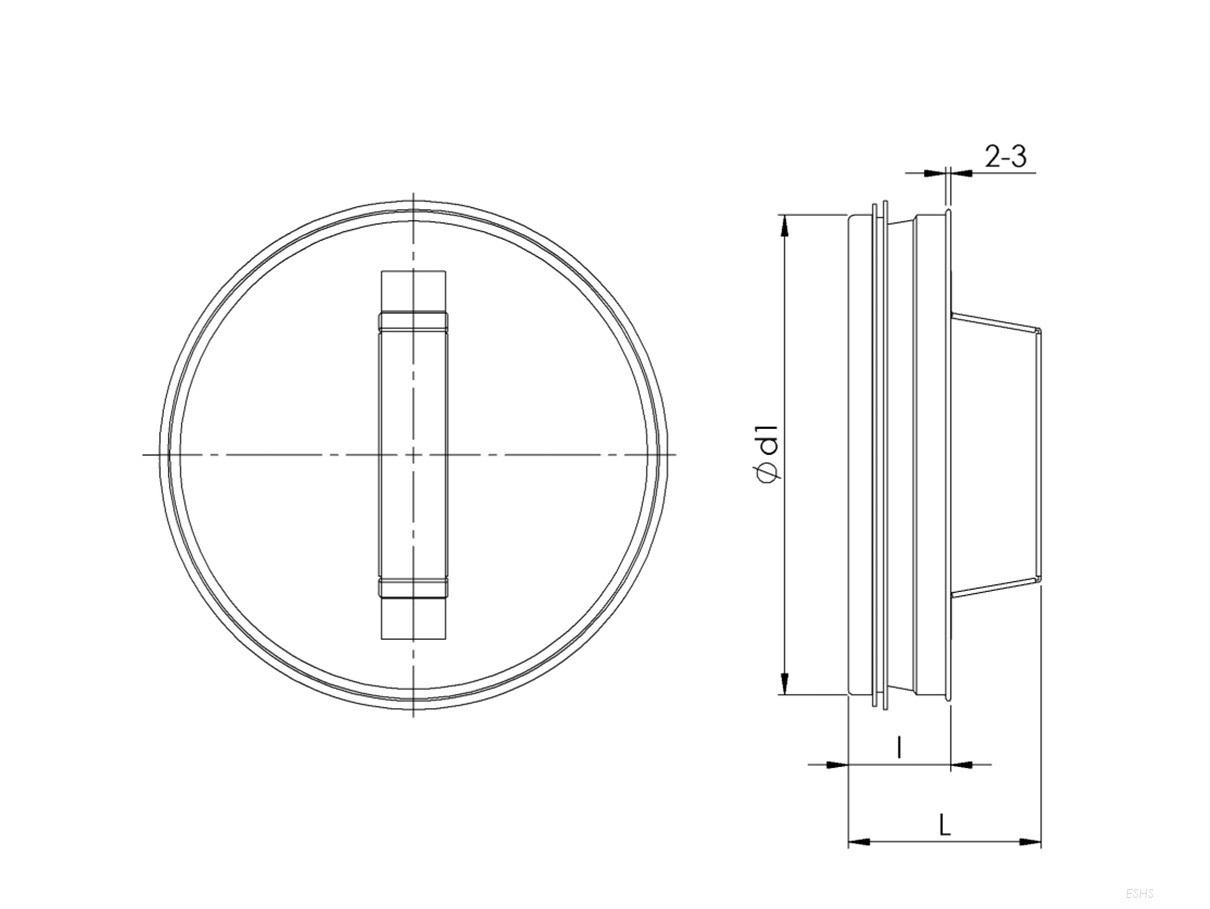

| Type | Ød nom [mm] |
l [mm] |
L [mm] |
m [kg] |
| ESHS80 | 80 | 33 |
63 |
0,10 |
| ESHS100 | 100 | 33 |
63 |
0,12 |
| ESHS125 | 125 | 33 | 63 | 0,16 |
| ESHS150 | 150 | 33 | 63 | 0,20 |
| ESHS160 | 160 | 33 | 63 | 0,21 |
| ESHS180 | 180 | 33 | 63 | 0,24 |
| ESHS200 | 200 | 33 | 63 | 0,28 |
| ESHS250 | 250 | 43 | 73 | 0,43 |
| ESHS315 | 315 | 43 | 73 | 0,58 |
