metal ventilation adapters with gaskets MVAS
Construction:
- Material galvanized steel or other metal
- EPDM seals
- Manufactured according "D" class
Instalation:
- Easy installation.
Information: Adapters can be manufactured in other diameters by choice.
Color: White, Metal

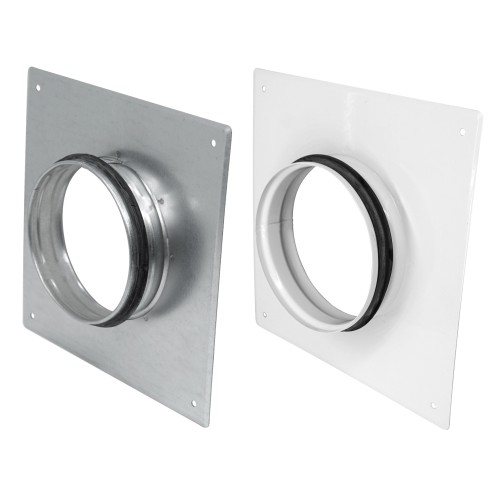

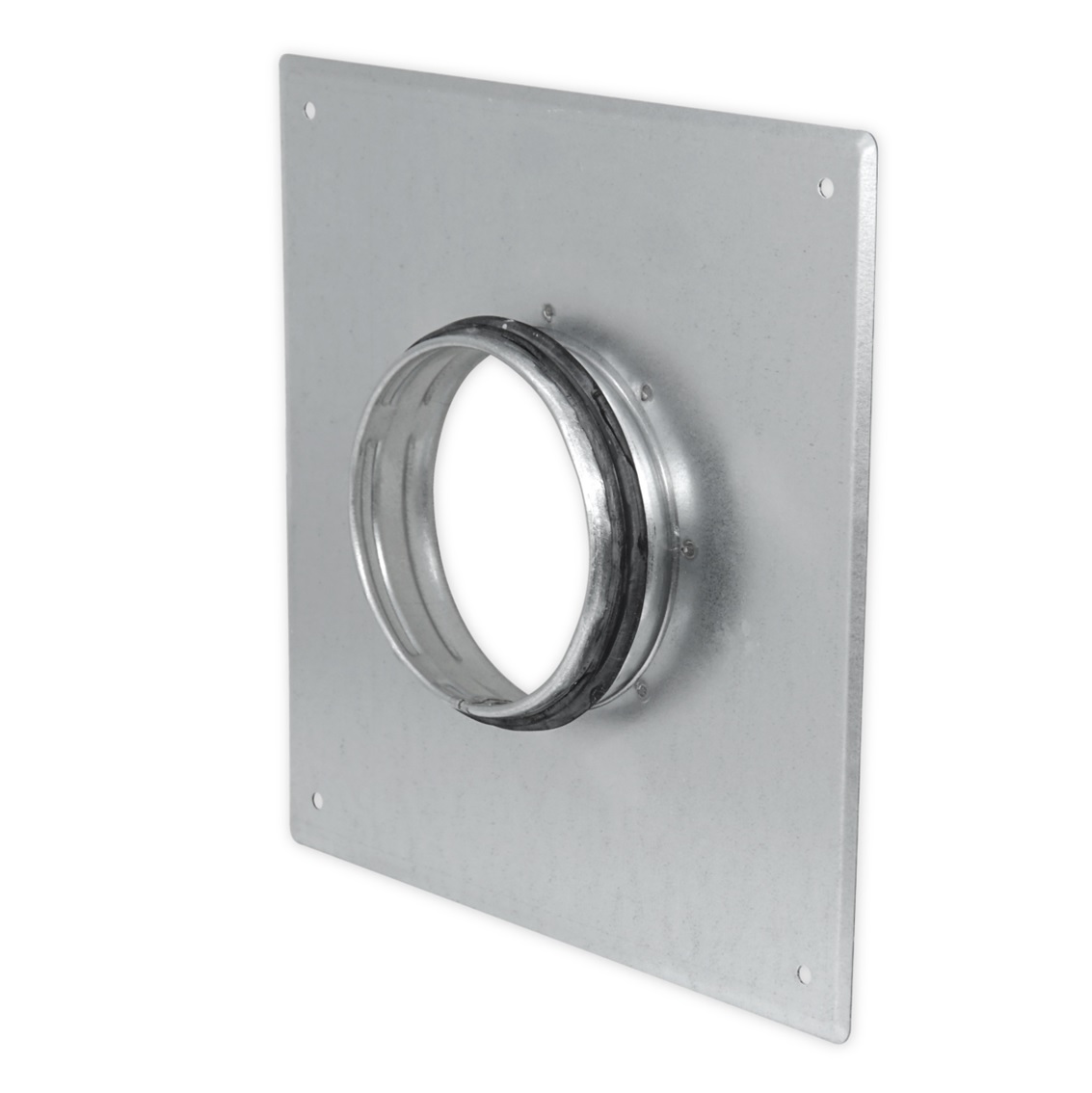

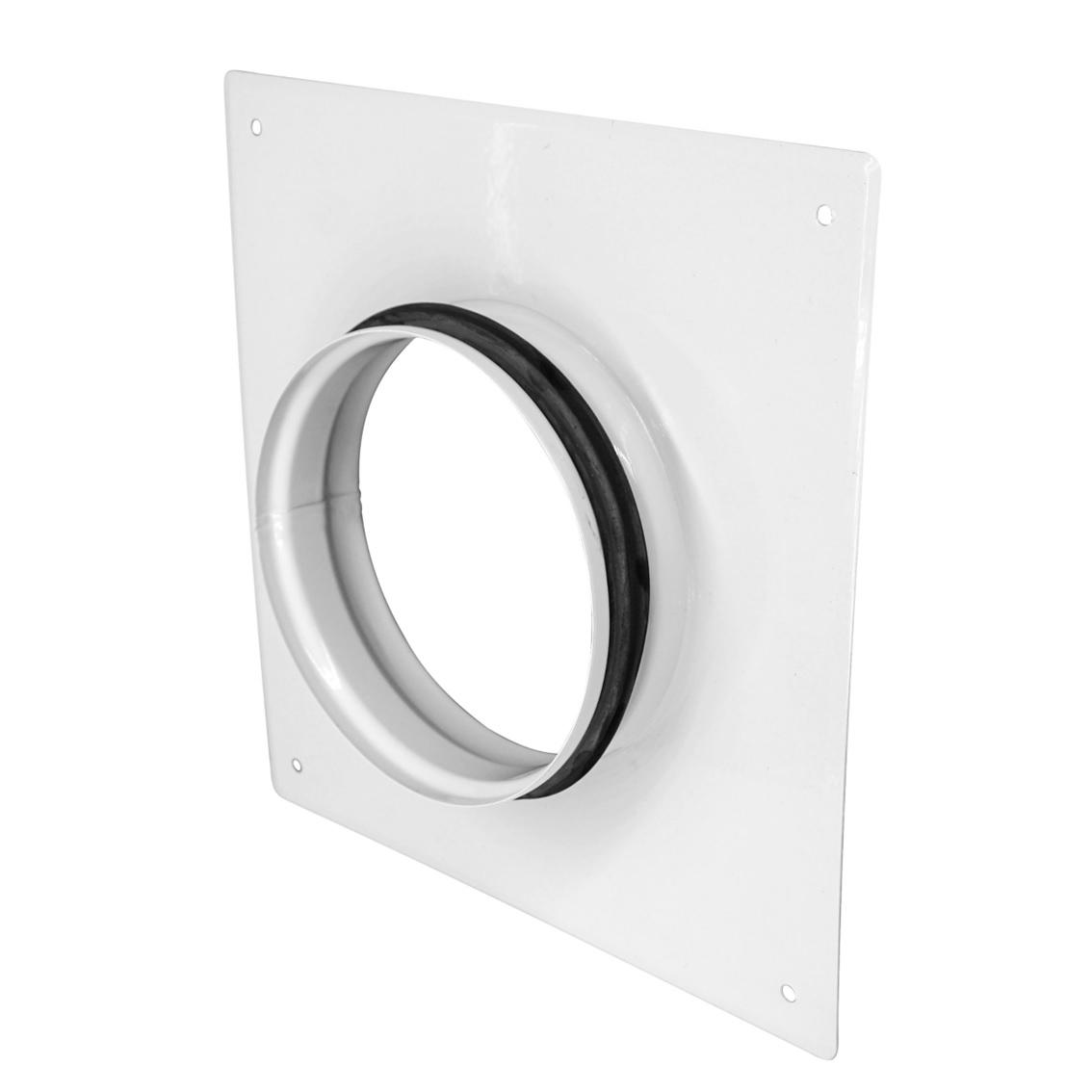

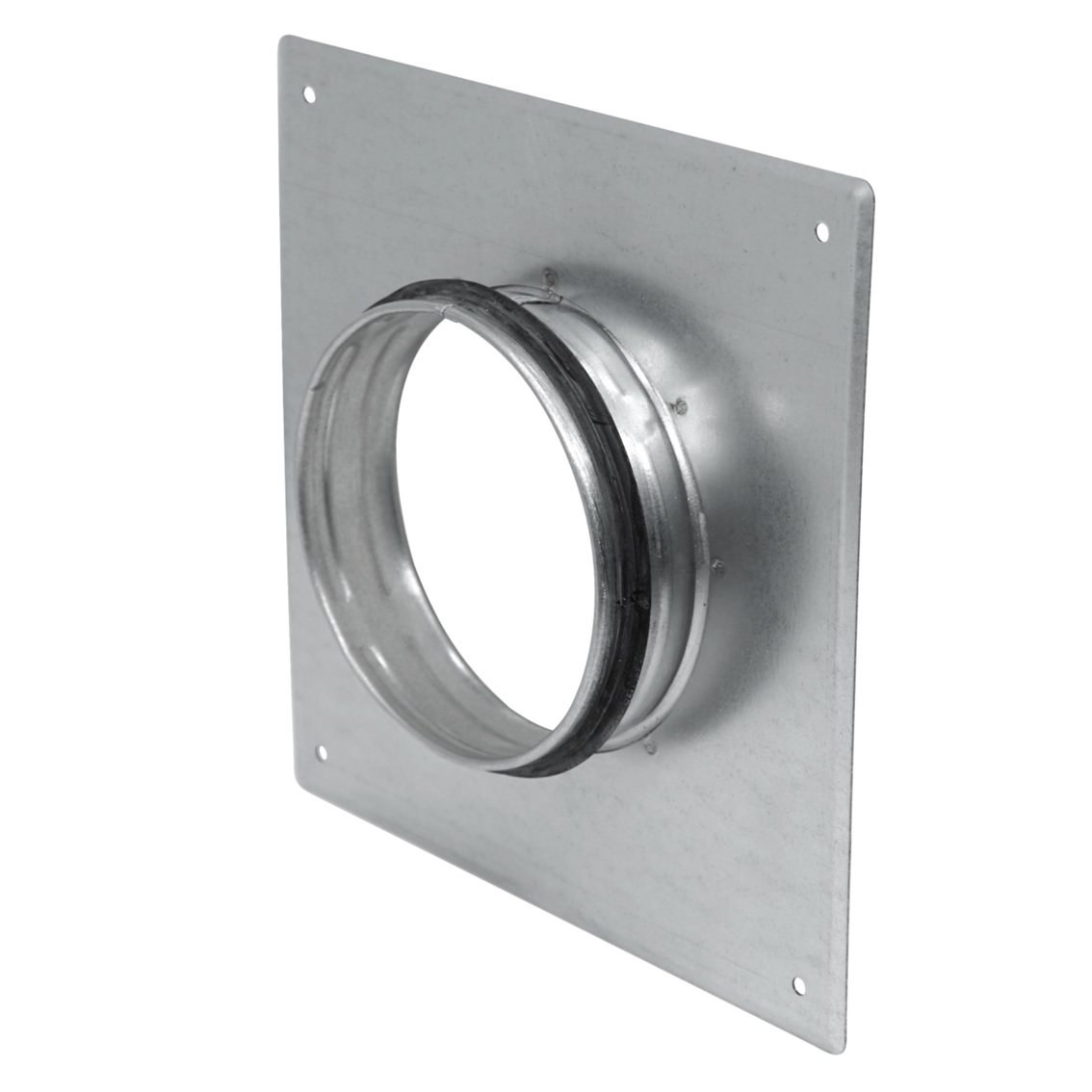

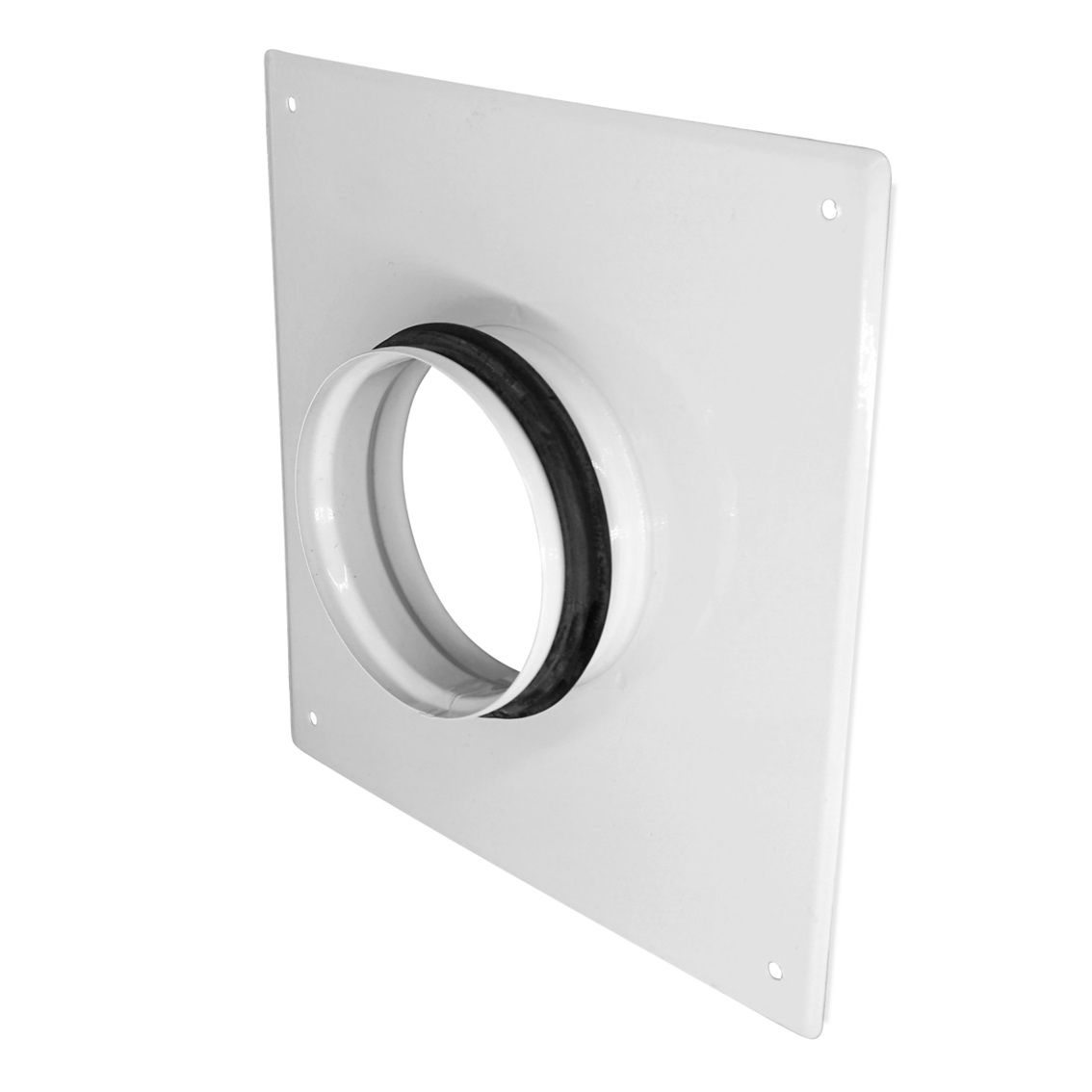

MVAS male fitting spigot plates are made from galvanized steel sheet where round end is provided with EPDM sealing. Fitting spigot plates available in unpainted and in powder coating version in white color. Intended to be connected to air ducts of various sizes, starting from Ø80mm up to Ø250mm connection. Other sizes and colors are available on request. Designed to mount onto walls, ceilings and panels to terminate ducting. Square mounting wall plate with centrally mounted hole with pre-drilled mounting holes for easy fitting.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
MVAS100
|
metal ventilation adapter Ø100mm, with gasket
|
4750492024973
|
100 mm |
|
MVAS100W
|
metal ventilation adapter Ø100mm, with gasket, white
|
20201298
|
100 mm |
|
MVAS125
|
metal ventilation adapter Ø125mm, with gasket
|
4750492024980
|
125 mm |
|
MVAS125W
|
metal ventilation adapter Ø125mm, with gasket, white
|
20201299
|
|
|
MVAS150
|
metal ventilation adapter Ø150mm, with gasket
|
20201219
|
|
|
MVAS150W
|
metal ventilation adapter Ø150mm, with gasket, white
|
20201300
|
|
|
MVAS160
|
metal ventilation adapter Ø160mm, with gasket
|
4750492024997
|
160 mm |
|
MVAS160W
|
metal ventilation adapter Ø160mm, with gasket, white
|
20201301
|
|
|
MVAS180
|
metal ventilation adapter Ø180mm, with gasket
|
20201221
|
|
|
MVAS180W
|
metal ventilation adapter Ø180mm, with gasket, white
|
20201302
|

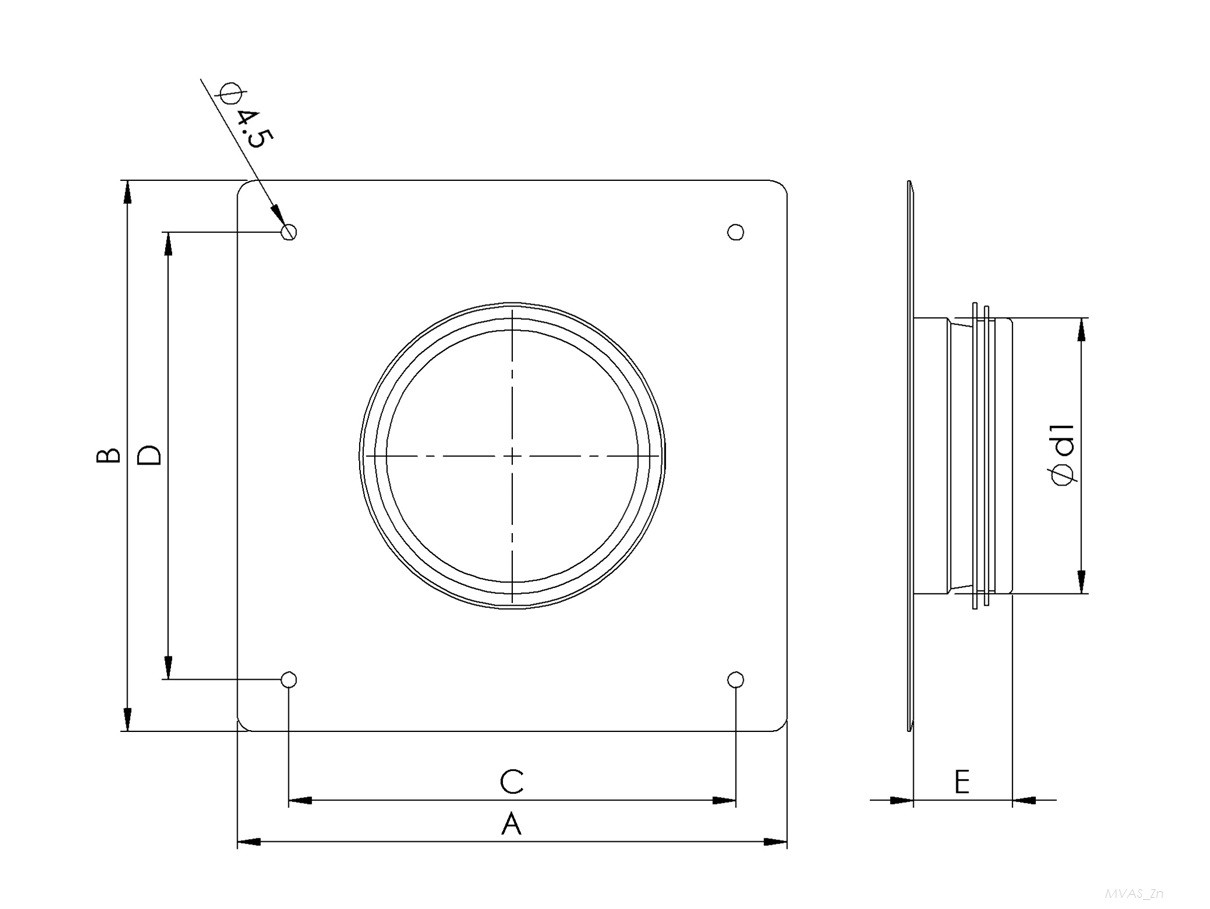

| Type |
A [mm] |
B [mm] |
C [mm] |
D [mm] |
Ød1 nom [mm] |
E [mm] |
m [kg] |
| MVAS80 | 160 | 160 | 130 | 130 | 80 | 30 | 0,17 |
| MVAS100 | 225 | 225 | 195 | 195 | 100 | 30 | 0,30 |
| MVAS125 | 225 | 225 | 195 | 195 | 125 | 30 | 0,30 |
| MVAS150 | 255 | 255 | 225 | 225 | 150 | 30 | 0,37 |
| MVAS160 | 255 | 255 | 225 | 225 | 160 | 30 | 0,37 |
| MVAS180 | 320 | 320 | 290 | 290 | 180 | 30 | 0,56 |
| MVAS200 | 320 | 320 | 290 | 290 | 200 | 30 | 0,54 |
| MVAS250 | 320 | 320 | 290 | 290 | 250 | 40 | 0,51 |
| MVAS315 | 380 | 380 | 350 | 350 | 315 | 40 | 0,64 |
