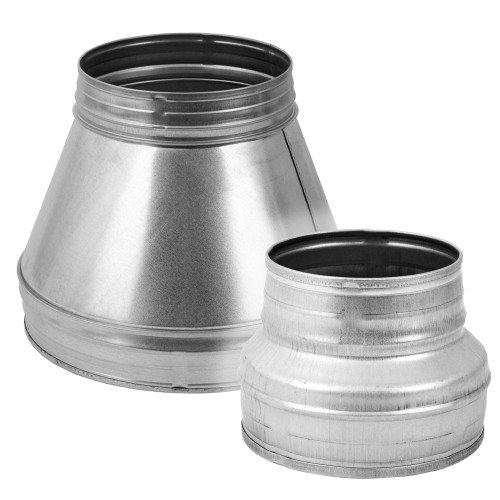

reducers concentric without gaskets RCL
Construction:
- Material galvanized steel or other metal

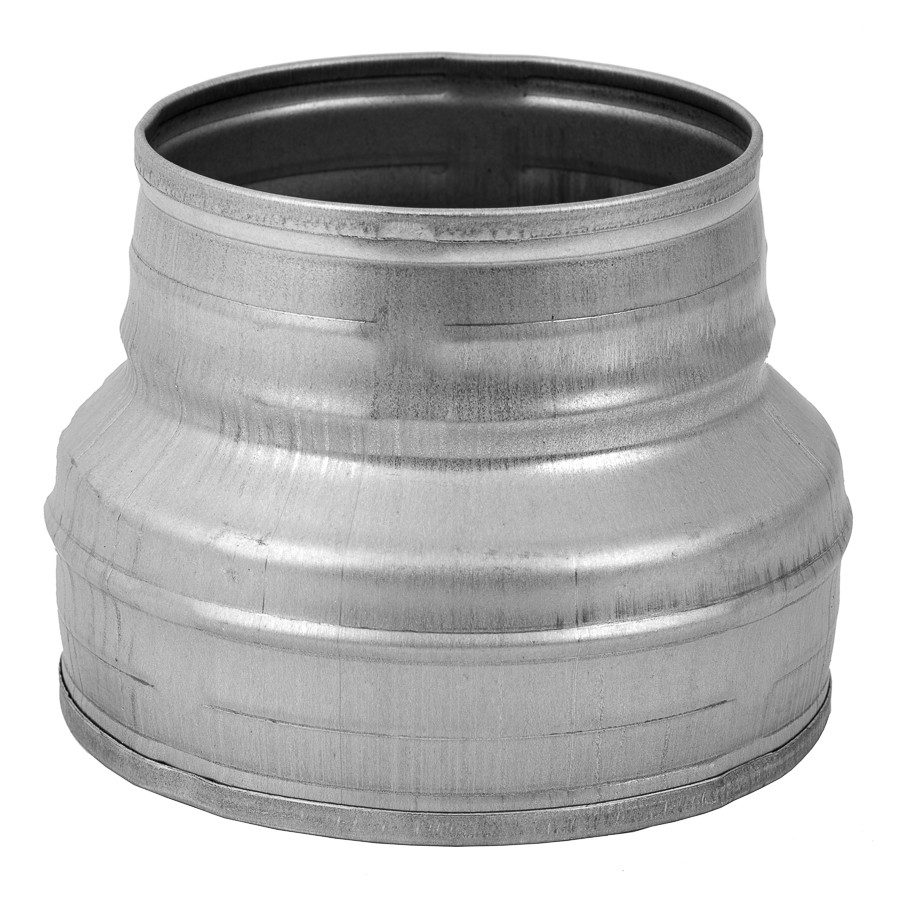

- Pressed

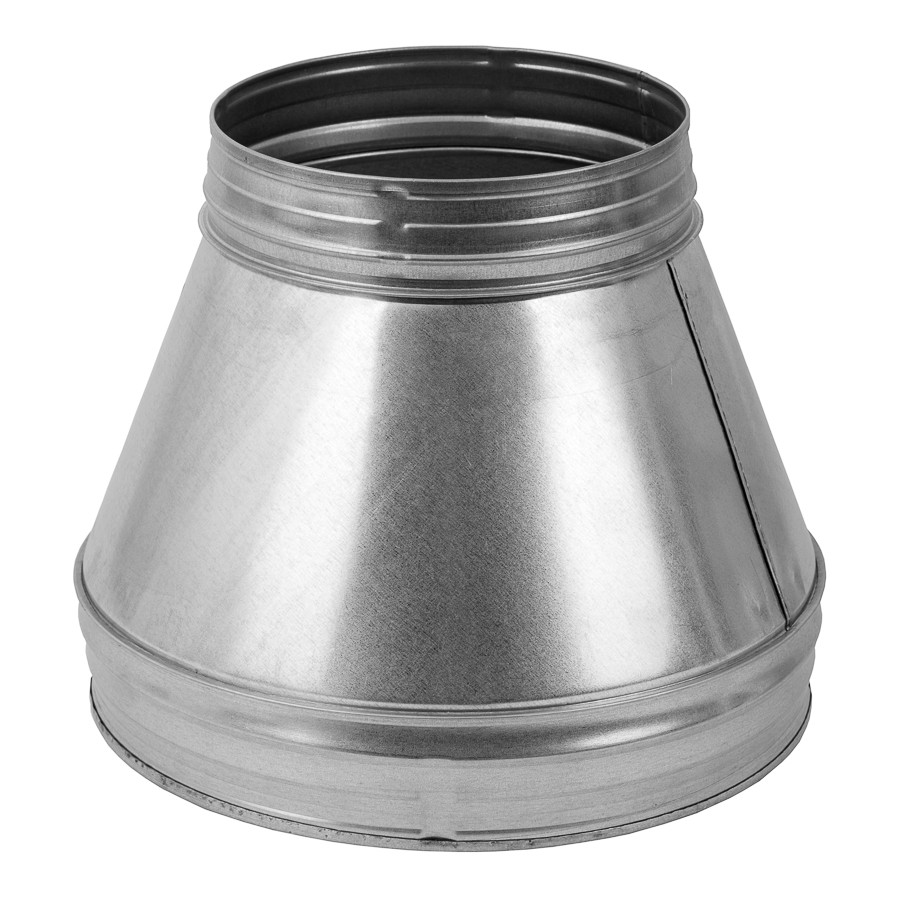

- Segmented
Instalation:
- Easy installation.
Information: Reducers can be manufactured in other diameters by choice.
RCL reducers is a fitting used in ventilation systems between two pipes of different diameters they provide the perfect fitting when you need to change from one size duct to another size.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
RCL100-80
|
transition joint metal, Ø100-Ø80mm without rubber, extruded
|
4750492106594
|
100-80 mm |
|
RCL120-100
|
transition joint metal, Ø120-Ø100mm without rubber
|
4750492001790
|
120-100 mm |
|
RCL120-80
|
transition joint metal, Ø120-Ø80mm without rubber
|
20000640
|
120-80 mm |
|
RCL125-100
|
transition joint metal, Ø125-Ø100mm without rubber, extruded
|
4750492001080
|
125-100 mm |
|
RCL125-80
|
transition joint metal, Ø125-Ø80mm without rubber, extruded
|
20003215
|
125-80 mm |
|
RCL150-100
|
transition joint metal, Ø150-Ø100mm without rubber, extruded
|
4750492001752
|
150-100 mm |
|
RCL150-125
|
transition joint metal, Ø150-Ø125mm without rubber, extruded
|
4750492001769
|
150-125 mm |
|
RCL150-80
|
transition joint metal, Ø150-Ø80mm without rubber
|
20003577
|
150-80 mm |
|
RCL160-100
|
transition joint metal, Ø160-Ø100mm without rubber, extruded
|
4750492001868
|
160-100 mm |
|
RCL160-125
|
transition joint metal, Ø160-Ø125mm without rubber, extruded
|
4750492001097
|
160-125 mm |

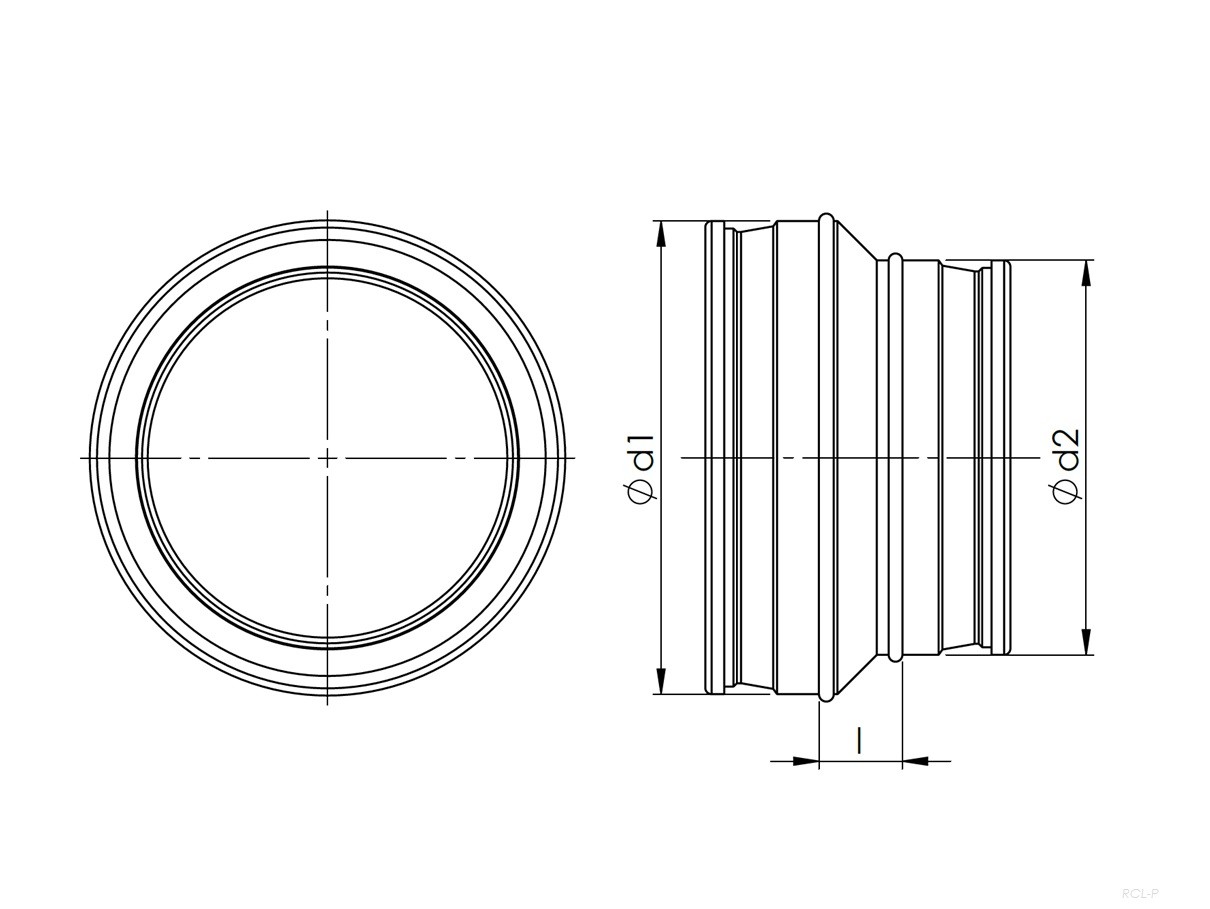

Pressed

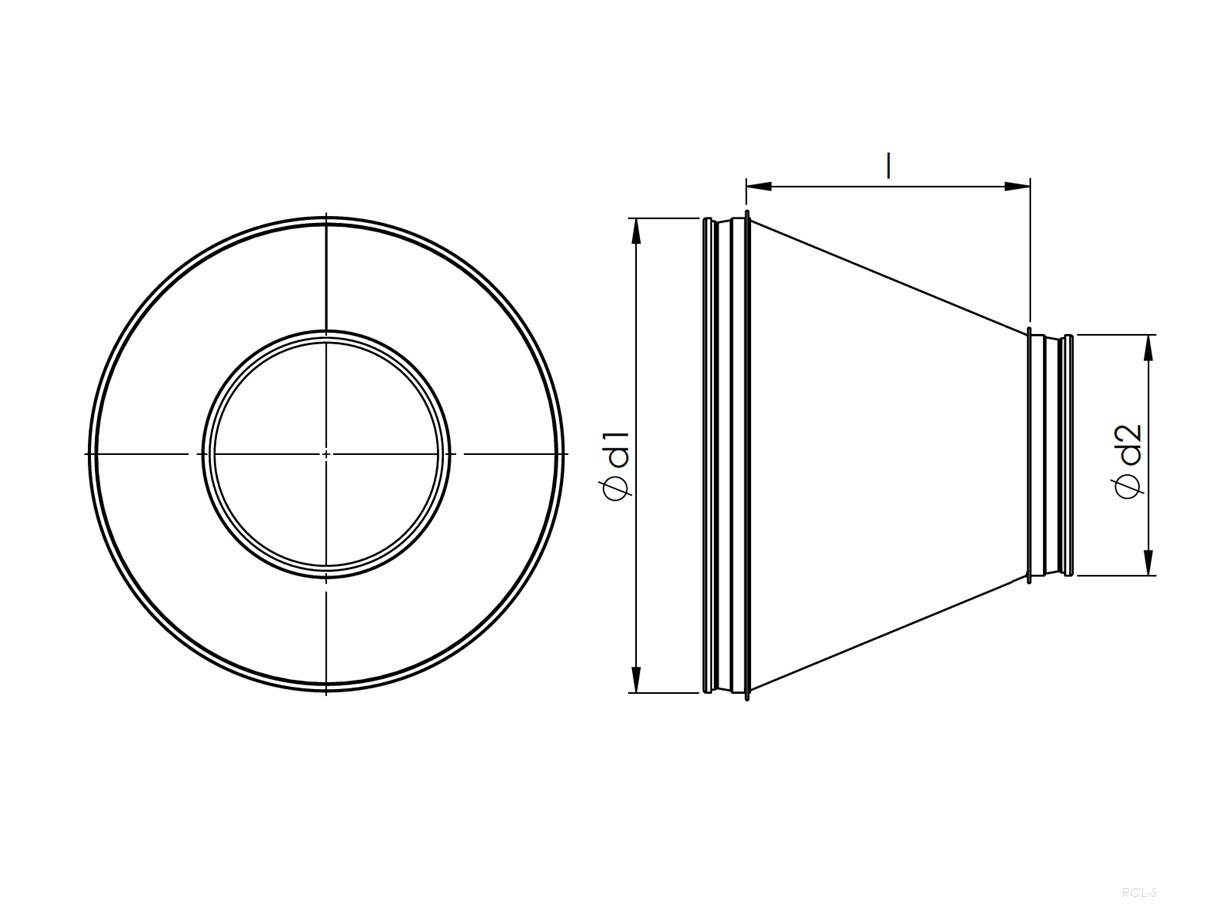

Segmented
| Type | Ød1 nom [mm] |
Ød2 nom [mm] |
l [mm] |
m [kg] |
| RCL100-80* | 100 | 80 | 37 | 0,12 |
| RCL120-100 | 120 | 100 | 25,7 | 0,12 |
| RCL120-80 | 120 | 80 | 43 | 0,14 |
| RCL125-100* | 125 | 100 | 34 | 0,14 |
| RCL125-80* | 125 | 80 | 40 | 0,13 |
| RCL150-80 | 150 | 80 | 69,9 | 0,24 |
| RCL150-100* | 150 | 100 | 49 | 0,22 |
| RCL150-125* | 150 | 125 | 39 | 0,2 |
| RCL160-80 | 160 | 80 | 78,7 | 0,26 |
| RCL160-100* | 160 | 100 | 56 | 0,25 |
| RCL160-125* | 160 | 125 | 45 | 0,2 |
| RCL160-150 | 160 | 150 | 23,7 | 0,3 |
| RCL180-80 | 180 | 80 | 96,4 | 0,32 |
| RCL180-100 | 180 | 100 | 78,7 | 0,31 |
| RCL180-125 | 180 | 125 | 56,6 | 0,29 |
| RCL180-150 | 180 | 150 | 34,5 | 0,27 |
| RCL180-160 | 180 | 160 | 25,7 | 0,26 |
| RCL200-80 | 200 | 80 | 114 | 0,37 |
| RCL200-100* | 200 | 100 | 65 | 0,34 |
| RCL200-125* | 200 | 125 | 57 | 0,32 |
| RCL200-150* | 200 | 150 | 46 | 0,3 |
| RCL200-160* | 200 | 160 | 37 | 0,28 |
| RCL200-180 | 200 | 180 | 25,7 | 0,29 |
| RCL250-100 | 200 | 100 | 140,6 | 0,56 |
| RCL250-125 | 250 | 125 | 118,5 | 0,54 |
| RCL250-150 | 250 | 150 | 96,4 | 0,52 |
| RCL250-160 | 250 | 160 | 87,5 | 0,51 |
| RCL250-180 | 250 | 180 | 69,9 | 0,48 |
| RCL250-200 | 250 | 200 | 52,2 | 0,45 |
| RCL315-100 | 315 | 100 | 198 | 0,82 |
| RCL315-125 | 315 | 125 | 175,9 | 0,8 |
| RCL315-150 | 315 | 150 | 153,8 | 0,78 |
| RCL315-160 | 315 | 160 | 145 | 0,77 |
| RCL315-180 | 315 | 180 | 127,3 | 0,74 |
| RCL315-200 | 315 | 200 | 109,6 | 0,71 |
| RCL315-250 | 315 | 250 | 65,4 | 0,65 |
*Pressed
Bends can be manufactured in other diameters by choice
