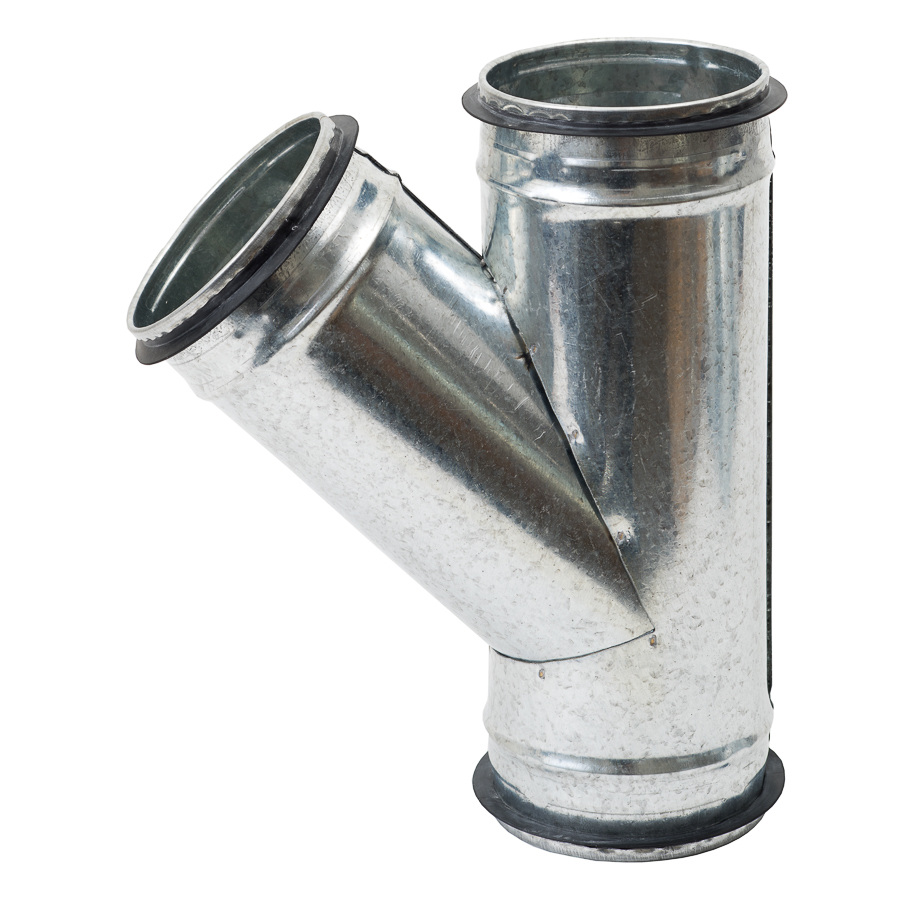

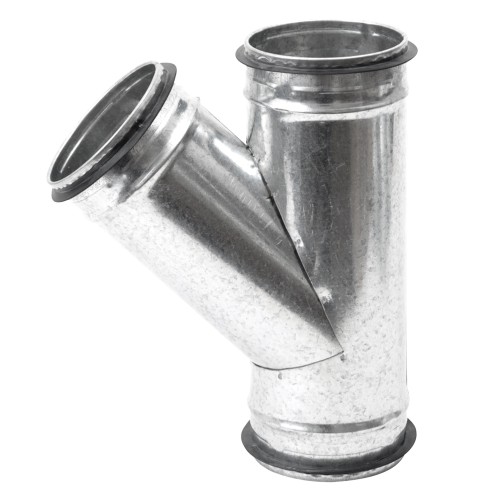

T-pieces with gaskets TVS45°

Construction:

  • Material galvanized steel or other metal
  • EPDM seals
  • Segmented
  • Manufactured according "D" class



Instalation:

  • Easy installation.



Connection

Class

Sort by

Article Description EAN Connection Class
TVS100-80
TVS100-80
T-joint metal, Ø100/Ø80mm-45° with rubber
20001198
TVS125-100
TVS125-100
T-joint metal, Ø125/Ø100mm-45° with rubber
4750492002254
125-100 mm M1
TVS125-125
TVS125-125
T-joint metal, Ø125/Ø125mm-45° with rubber
4750492013908
125 mm M1
TVS125-80
TVS125-80
T-joint metal, Ø125/Ø80mm-45° with rubber
20003168
TVS150-100
TVS150-100
T-joint metal, Ø150/Ø100mm-45° with rubber
20003170
TVS150-125
TVS150-125
T-joint metal, Ø150/Ø125mm-45° with rubber
20003171
TVS150-80
TVS150-80
T-joint metal, Ø150/Ø80mm-45° with rubber
20003169
TVS160-100
TVS160-100
T-joint metal, Ø160/Ø100mm-45° with rubber
20001205
TVS160-125
TVS160-125
T-joint metal, Ø160/Ø125mm-45° with rubber
20001207
TVS160-150
TVS160-150
T-joint metal, Ø160/Ø150mm-45° with rubber
20003173

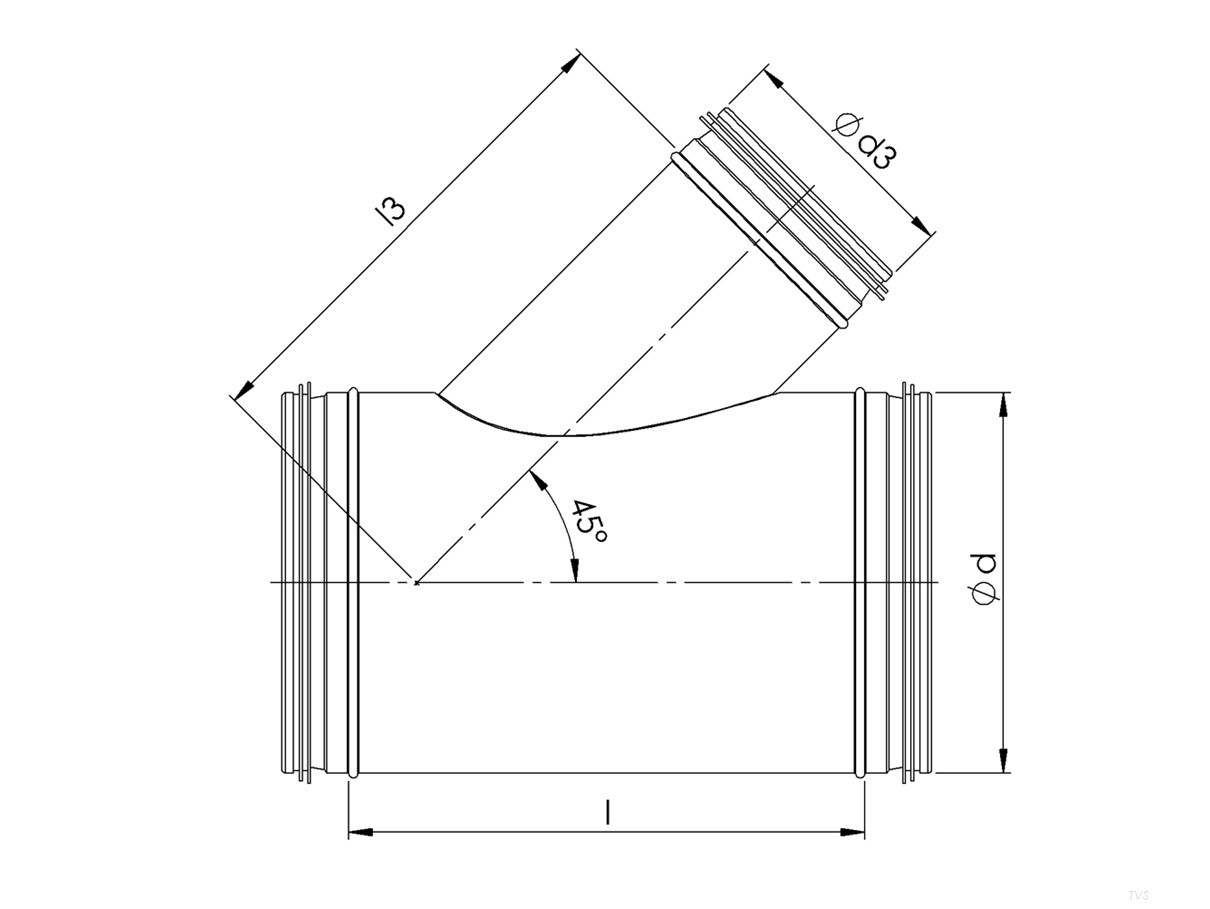

Type

Ød

[mm]

Ød3

[mm]

I3

[mm]

l

[mm]

m
[kg]
TVS80-80 80 80 137 193 0,41
TVS100-80 100 80 151 193 0,47
TVS100-100 100 100 161 222 0,55
TVS125-80 125 80 168 193 0,55
TVS125-100 125 100 178 222 0,65
TVS125-125 125 125 191 257 0,76
TVS150-80 150 80 186 193 0,65
TVS150-100 150 100 196 222 0,74
TVS150-125 150 125 209 257 0,85
TVS150-150 150 150 221 292 0,99
TVS160-80 160 80 193 193 0,68
TVS160-100 160 100 203 222 0,77
TVS160-125 160 125 216 257 0,89
TVS160-150 160 150 228 292 1,04
TVS160-160 160 160 233 306 1,10
TVS180-80 180 80 207 193 0,75
TVS180-100 180 100 217 222 0,86
TVS180-125 180 125 230 257 0,98
TVS180-150 180 150 242 292 1,12
TVS180-160 180 160 247 306 1,18
TVS180-180 180 180 257 335 1,31
TVS200-100 200 100 231 222 0,93
TVS200-125 200 125 244 257 1,06
TVS200-150 200 150 256 292 1,22
TVS200-160 200 160 262 306 1,27
TVS200-200 200 200 282 363 1,53
TVS250-100 250 100 267 222 1,19
TVS250-125 250 125 279 257 1,34
TVS250-150 250 150 292 292 1,52
TVS250-160 250 160 297 306 1,61
TVS250-200 250 200 317 363 1,86
TVS250-250 250 250 342 434 2,29
TVS315-100 315 100 313 222 1,45
TVS315-125 315 125 325 257 1,65
TVS315-150 315 150 338 292 1,84
TVS315-160 315 160 343 306 1,92
TVS315-200 315 200 363 363 2,27
TVS315-250 315 250 388 434 2,69
TVS315-315 315 315 420 526 3,31

T-joints can be manufactured in other diameters by choice.
