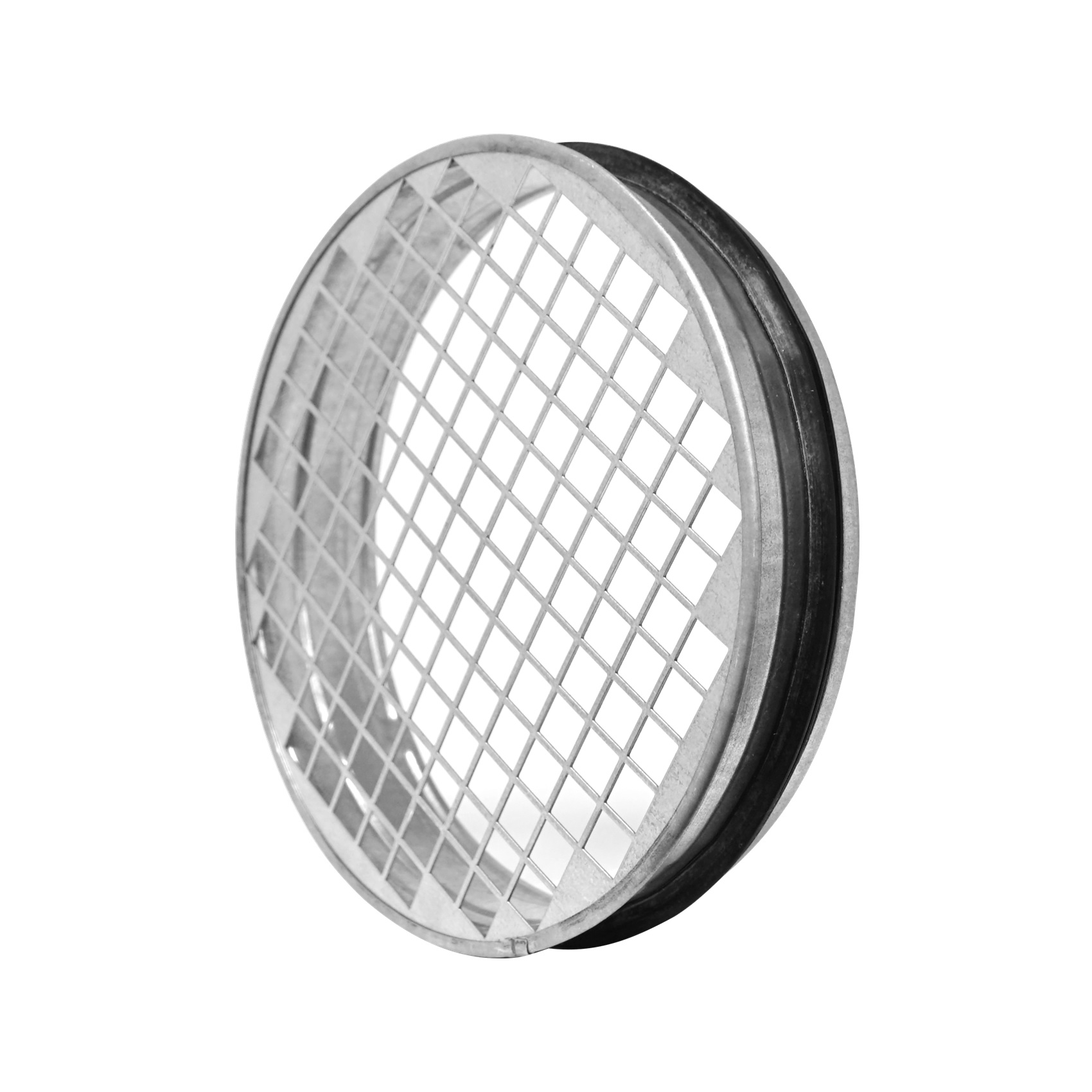

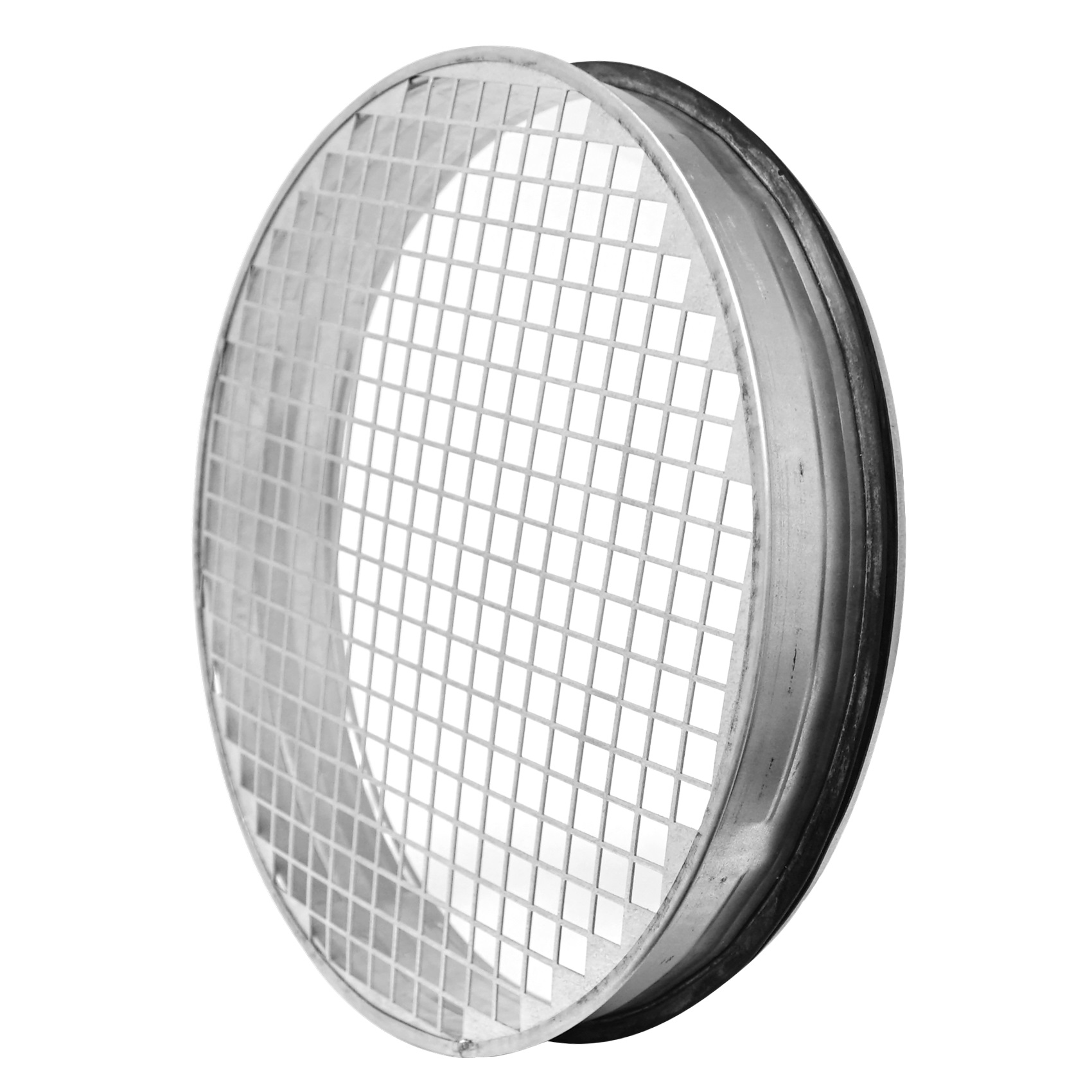

take-offs for ducts with mesh with gaskets ESNS
Construction:
- Material galvanized steel or other metal
- EPDM rubber seal
Instalation:
- Male type end connection
Information: Standard insertion length 33 mm and 43 mm, optionaly can be ordered in other lengths.
Metal air duct take off with mesh Male type end connection.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
ESNS100
|
take-off for ducts with mesh, metal, Ø100mm, with gaskets
|
4750492022603
|
100 mm |
|
ESNS125
|
take-off for ducts with mesh, metal, Ø125mm, with gaskets
|
4750492022610
|
125 mm |
|
ESNS150
|
take-off for ducts with mesh, metal, Ø150mm, with gaskets
|
20003432
|
150 mm |
|
ESNS160
|
take-off for ducts with mesh, metal, Ø160mm, with gaskets
|
4750492022627
|
160 mm |
|
ESNS180
|
take-off for ducts with mesh, metal, Ø180mm, with gaskets
|
20003434
|
180 mm |
|
ESNS200
|
take-off for ducts with mesh, metal, Ø200mm, with gaskets
|
4750492022634
|
200 mm |
|
ESNS250
|
take-off for ducts with mesh, metal, Ø250mm, with gaskets
|
20003438
|
250 mm |
|
ESNS315
|
take-off for ducts with mesh, metal, Ø315mm, with gaskets
|
20003454
|
315 mm |
|
ESNS80
|
take-off for ducts with mesh, metal, Ø80mm, with gaskets
|
20003484
|
80 mm |

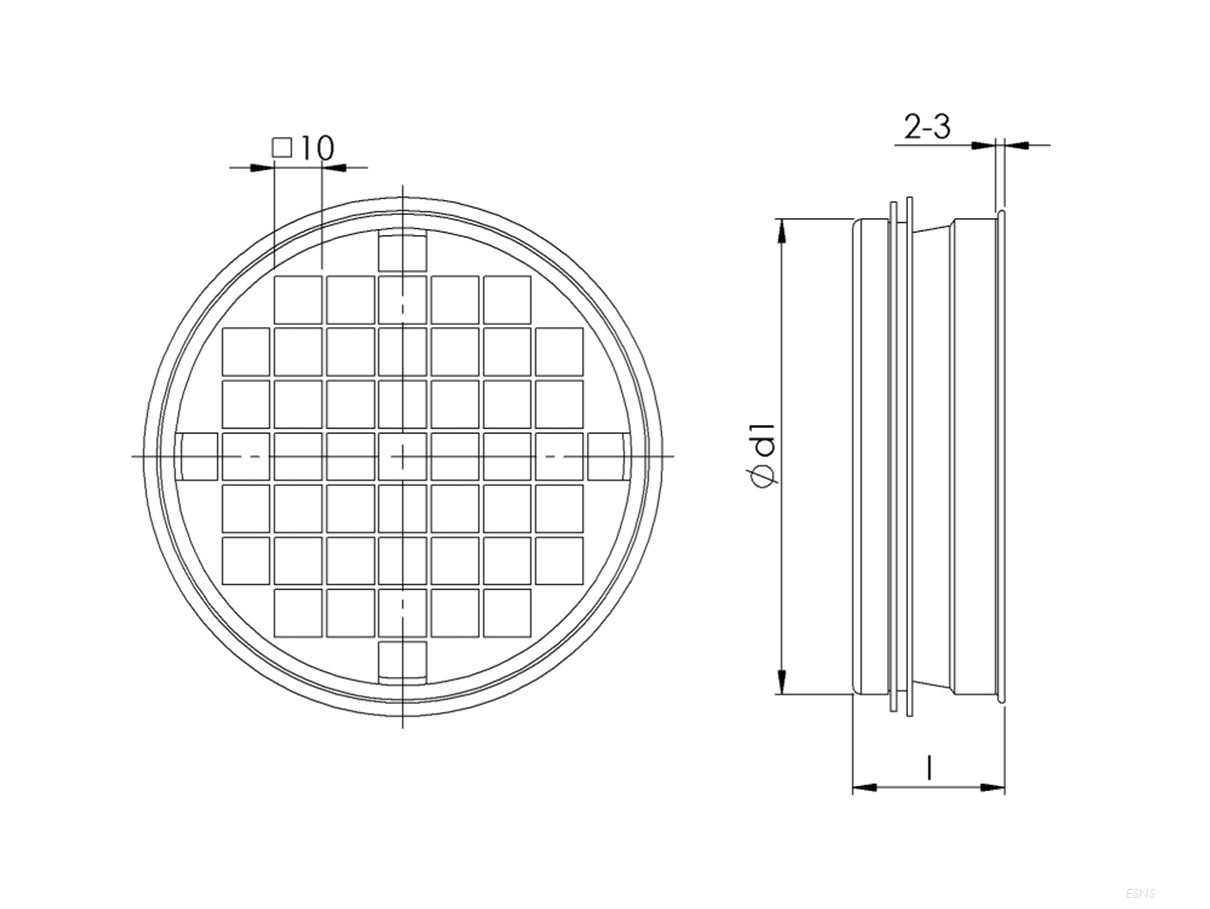

| Type | Ød nom [mm] |
l [mm] |
m [kg] |
| ESNS80 | 80 | 33 |
0,05 |
| ESNS100 | 100 | 33 | 0,06 |
| ESNS125 | 125 | 33 | 0,08 |
| ESNS150 | 150 | 33 | 0,10 |
| ESNS160 | 160 | 33 | 0,11 |
| ESNS180 | 180 | 33 | 0,12 |
| ESNS200 | 200 | 33 | 0,14 |
| ESNS250 | 250 | 43 | 0,21 |
| ESNS315 | 315 | 43 | 0,28 |
