reducers concentric for duct-fitting with gasket RCFS
Construction:
- Material galvanized steel or other metal
- EPDM seals
- Pressed
- Fulfils tightness class C
- Corrosion class – C2
Installation:
- Sleeve-nipple

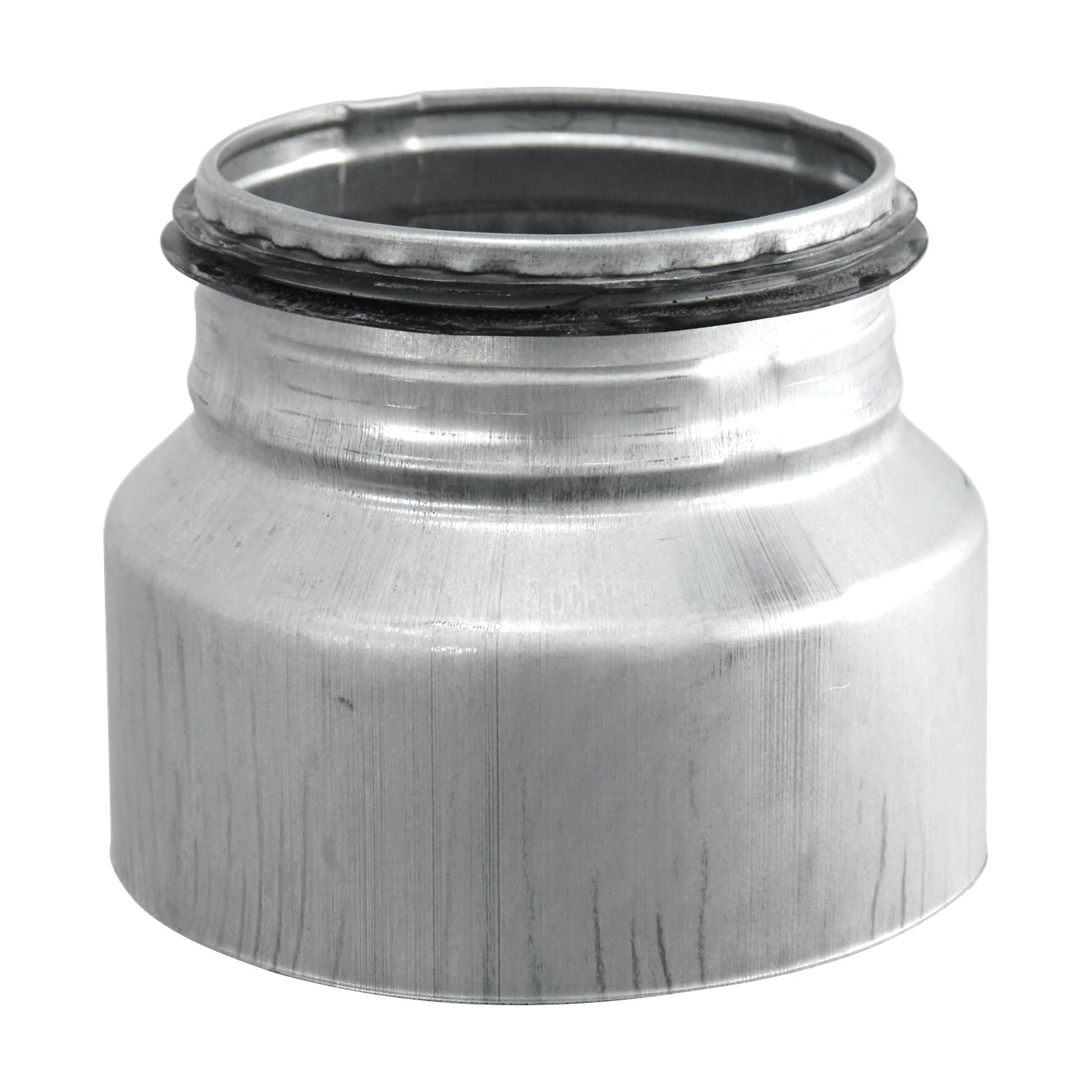

Concentric reducer, duct/fitting. Equipped with rubber gaskets. The larger end is female without a gasket to fit over ducts, T-pieces and the bends.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
RCFS100-80
|
reducer metal, concentric, duct/fitting, Ø100-Ø80mm with rubber, extruded
|
20003153
|
100-80 mm |
|
RCFS125-100
|
reducer metal, concentric, duct/fitting, Ø125-Ø100mm with rubber, extruded
|
20003154
|
125-100 mm |
|
RCFS160-100
|
reducer metal, concentric, duct/fitting, Ø160-Ø100mm with rubber, extruded
|
20003155
|
160-100 mm |
|
RCFS160-125
|
reducer metal, concentric, duct/fitting, Ø160-Ø125mm with rubber, extruded
|
20003156
|
160-125 mm |
|
RCFS200-125
|
reducer metal, concentric, duct/fitting, Ø200-Ø125mm with rubber, extruded
|
20003157
|
200-125 mm |
|
RCFS200-160
|
reducer metal, concentric, duct/fitting, Ø200-Ø160mm with rubber, extruded
|
20003158
|
200-160 mm |

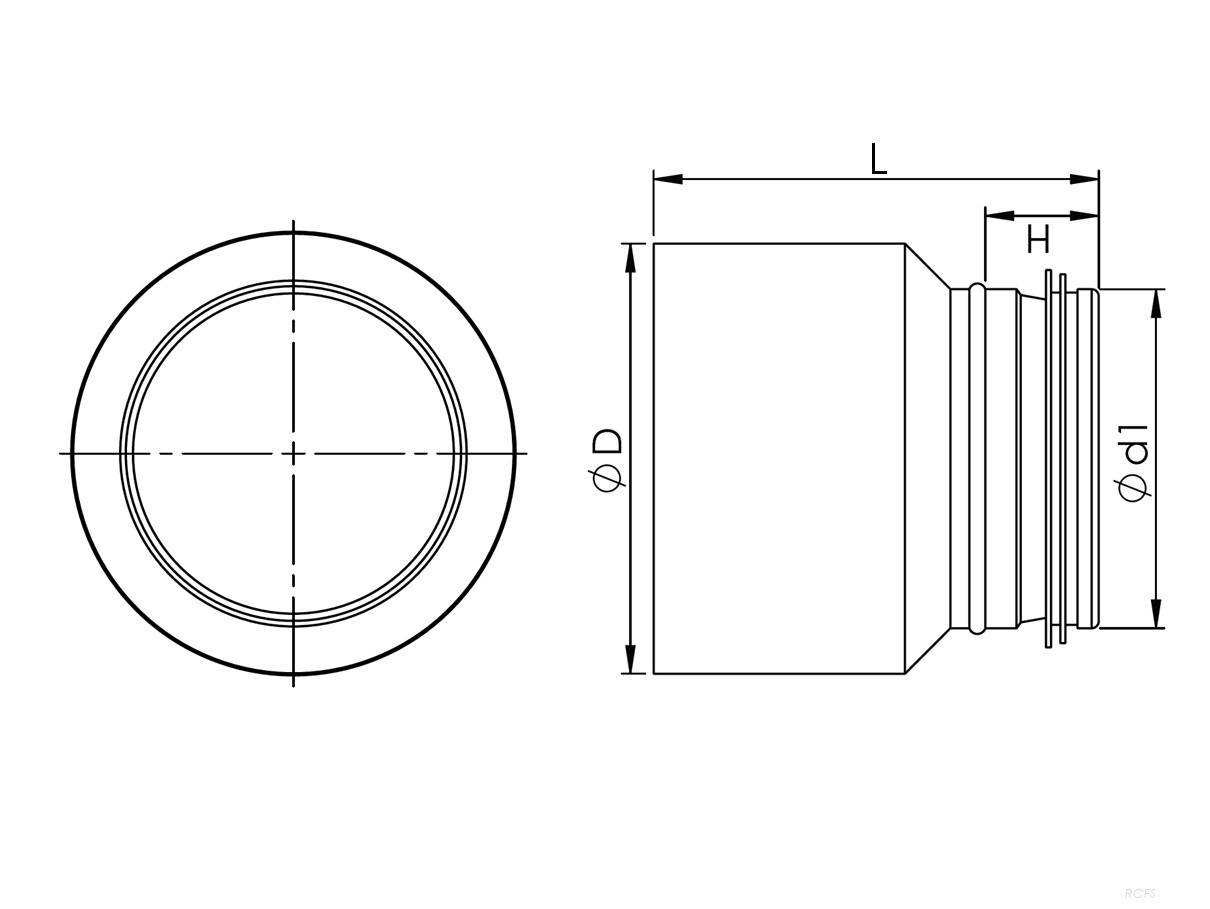

| Type | Ød2 [mm] |
l [mm] |
ØD [mm] |
m [kg] |
| RCFS100-80 | 80 | 20 | 100 | 0,11 |
| RCFS125-100 | 100 | 30 | 125 | 0,16 |
| RCFS160-100 | 100 | 40 | 160 | 0,23 |
| RCFS160-125 | 125 | 30 | 160 | 0,21 |
| RCFS200-125 | 125 | 45 | 200 | 0,30 |
| RCFS200-160 | 160 | 35 | 200 | 0,29 |
