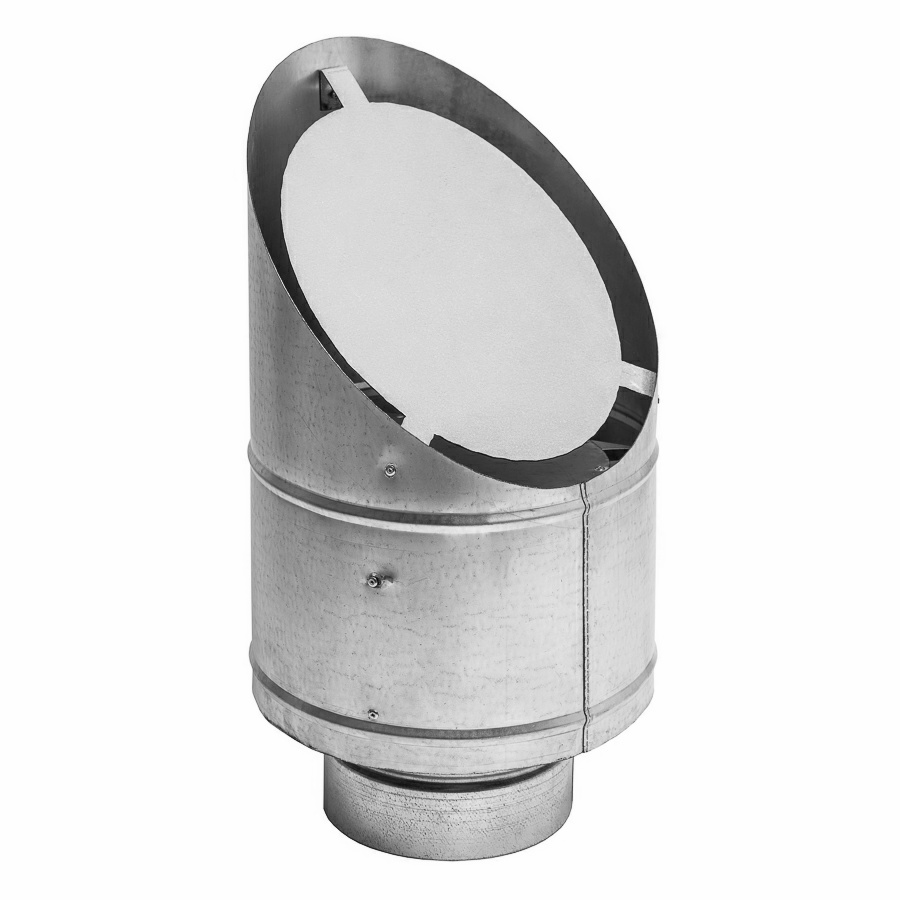

roof hoods VHD
Construction:
- Material galvanized steel or other metal
Instalation:
- Easy installation.
| Article | Description | EAN | |
|---|---|---|---|
|
VHD100
|
roof hood Ø100mm
|
4750492016527
|
|
VHD125
|
roof hood Ø125mm
|
4750492016534
|
|
VHD150
|
roof hood Ø150mm
|
4750492016541
|
|
VHD160
|
roof hood Ø160mm
|
4750492016558
|
|
VHD180
|
roof hood Ø180mm
|
4750492016565
|
|
VHD200
|
roof hood Ø200mm
|
4750492016572
|
|
VHD250
|
roof hood Ø250mm
|
4750492016589
|
|
VHD315
|
roof hood Ø315mm
|
20003423
|
|
VHD80
|
roof hood Ø80mm
|
20003414
|

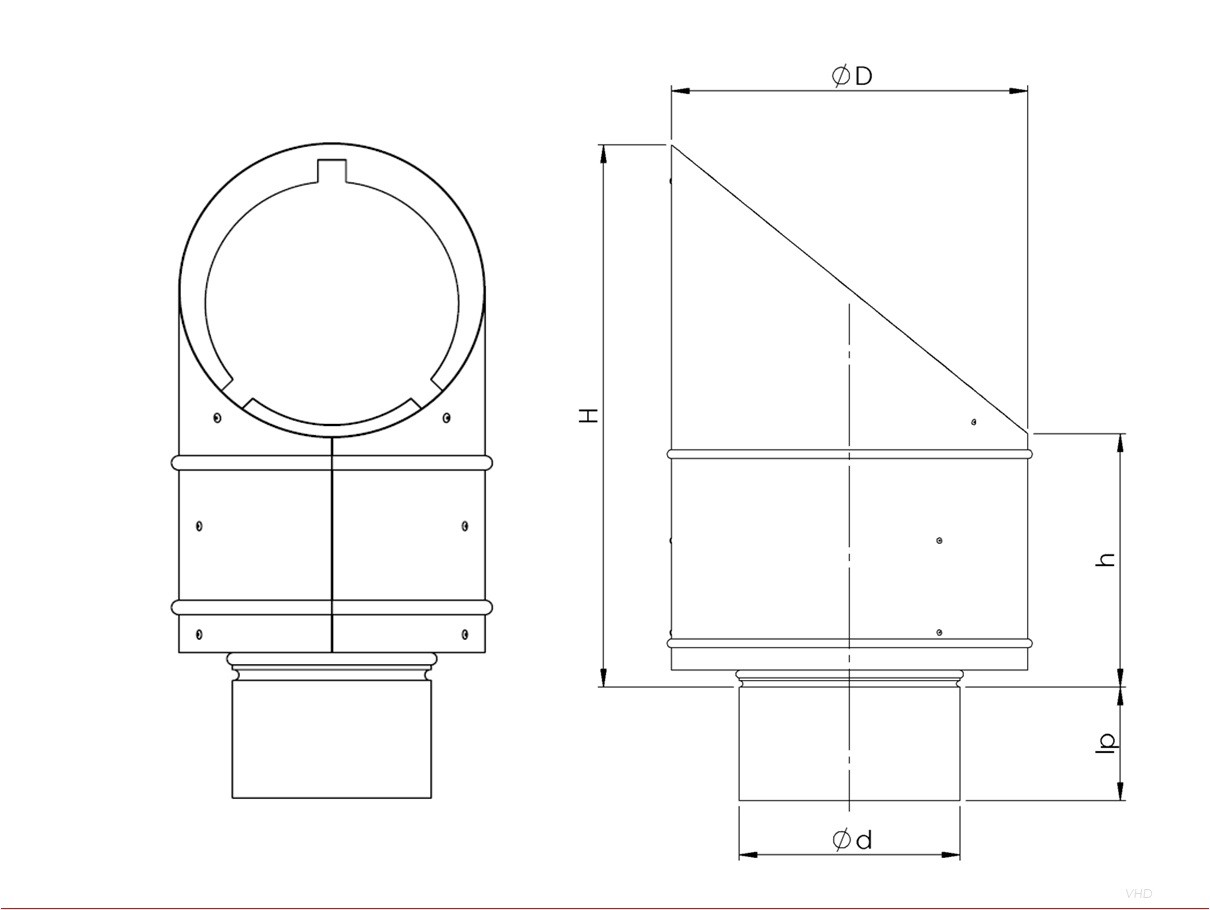

| Type |
Ød [mm] |
ØD [mm] |
H [mm] |
h [mm] |
lp [mm] |
m [kg] |
| VHD80 | 80 | 130 | 235 | 105 | 60 | 0,80 |
| VHD100 | 100 | 163 | 298 | 135 | 65 | 0,87 |
| VHD125 | 125 | 203 | 358 | 155 | 90 | 1,23 |
| VHD150 | 150 | 245 | 400 | 155 | 95 | 1,73 |
| VHD160 | 160 | 260 | 414 | 180 | 95 | 1,90 |
| VHD180 | 180 | 293 | 457 | 211 | 105 | 2,66 |
| VHD200 | 200 | 330 | 502 | 235 | 105 | 2,74 |
| VHD250 | 250 | 410 | 579 | 270 | 120 | 4,11 |
| VHD315 | 315 | 515 | 749 | 375 | 150 | 7,75 |
