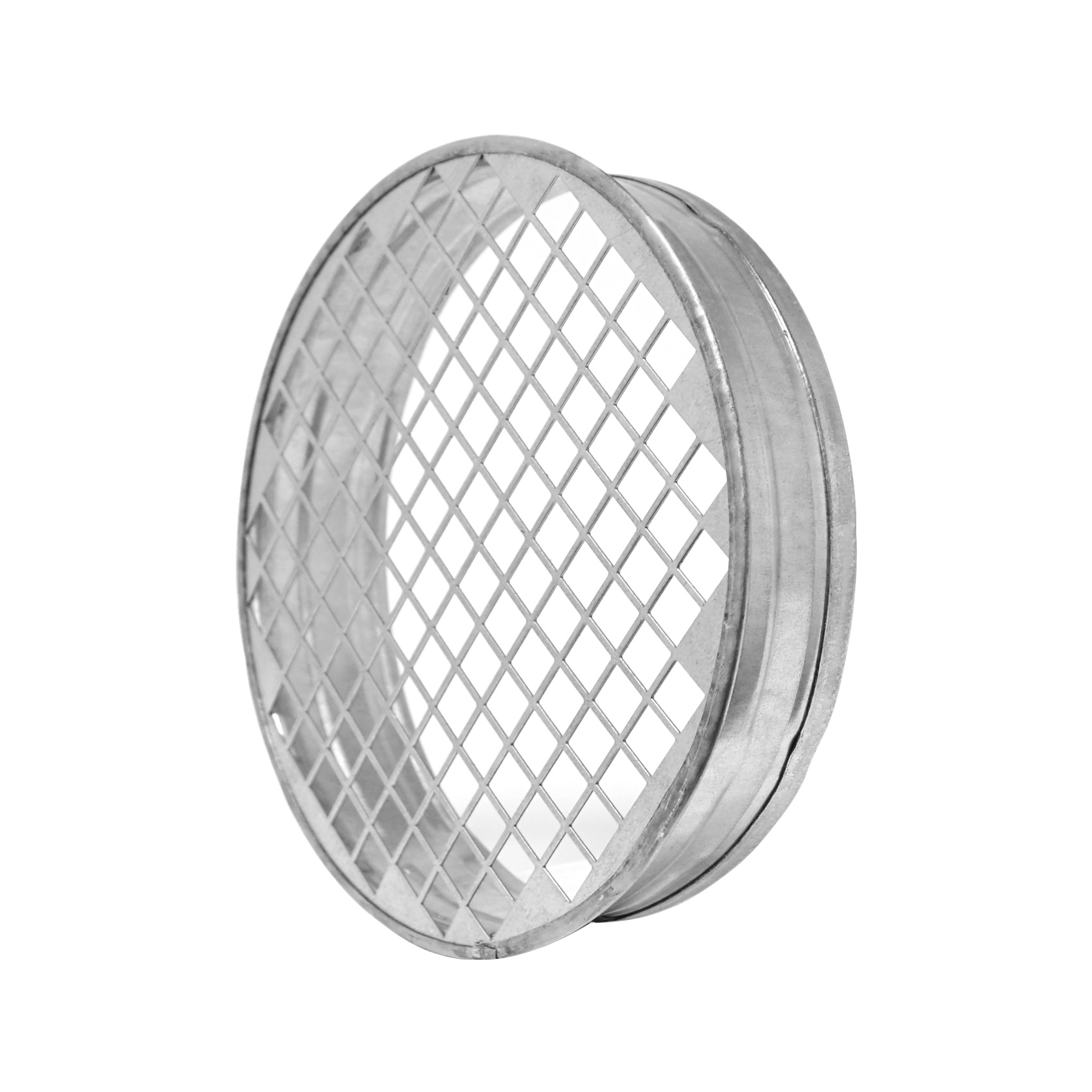

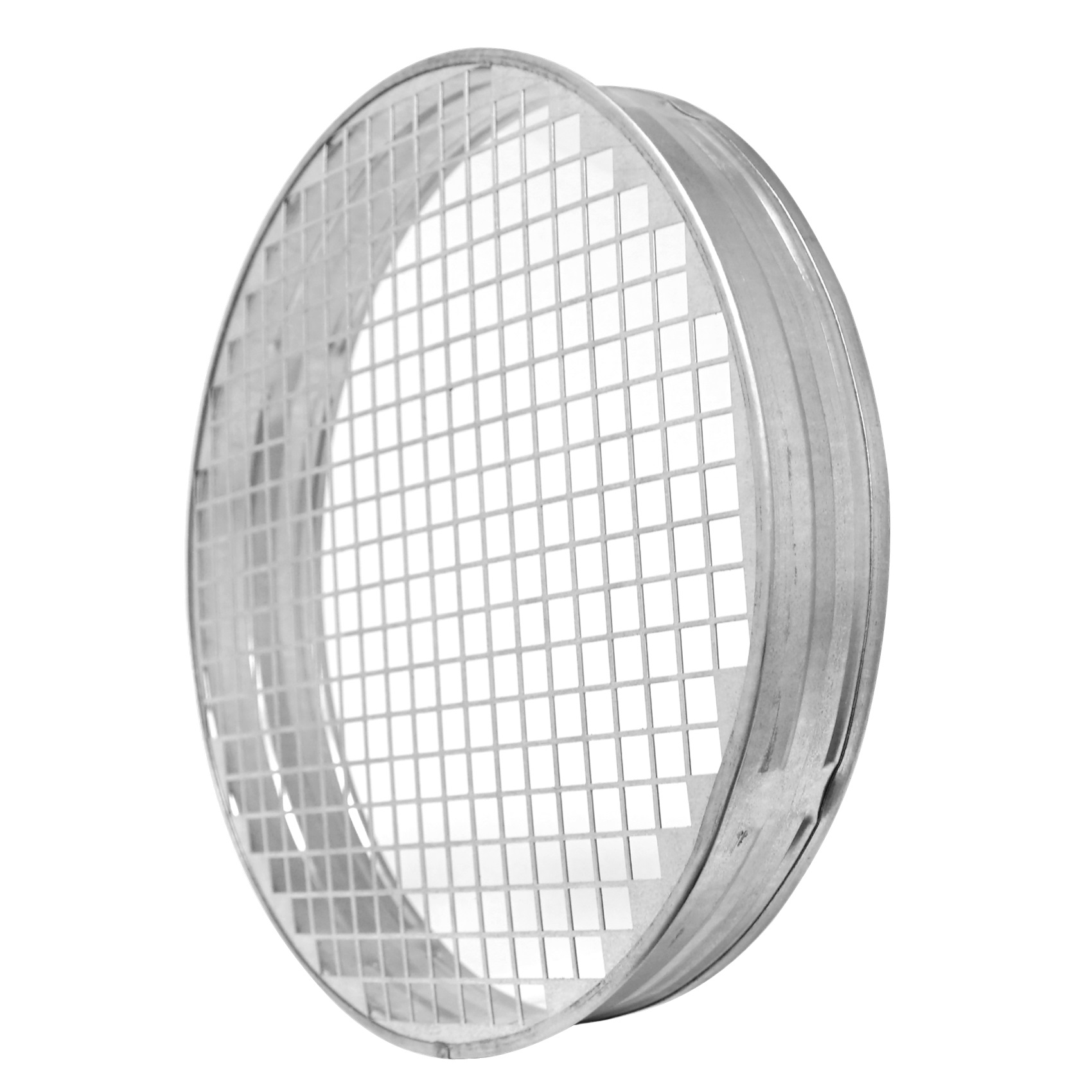

take-offs for ducts with mesh without gaskets ESN
Construction:
- Material galvanized steel or other metal
Instalation:
- Male type end connection
Information: Standard insertion length 33 mm and 43 mm, optionaly can be ordered in other lengths.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
ESN100
|
take-off for ducts with mesh, metal, Ø100mm, without gaskets
|
20003479
|
100 mm |
|
ESN125
|
take-off for ducts with mesh, metal, Ø125mm, without gaskets
|
20003483
|
125 mm |
|
ESN150
|
take-off for ducts with mesh, metal, Ø150mm, without gaskets
|
20003455
|
150 mm |
|
ESN160
|
take-off for ducts with mesh, metal, Ø160mm, without gaskets
|
20003475
|
160 mm |
|
ESN180
|
take-off for ducts with mesh, metal, Ø180mm, without gaskets
|
20003480
|
180 mm |
|
ESN200
|
take-off for ducts with mesh, metal, Ø200mm, without gaskets
|
20003474
|
200 mm |
|
ESN250
|
take-off for ducts with mesh, metal, Ø250mm, without gaskets
|
20003476
|
250 mm |
|
ESN315
|
take-off for ducts with mesh, metal, Ø315mm, without gaskets
|
20003477
|
315 mm |
|
ESN80
|
take-off for ducts with mesh, metal, Ø80mm, without gaskets
|
20003482
|
80 mm |

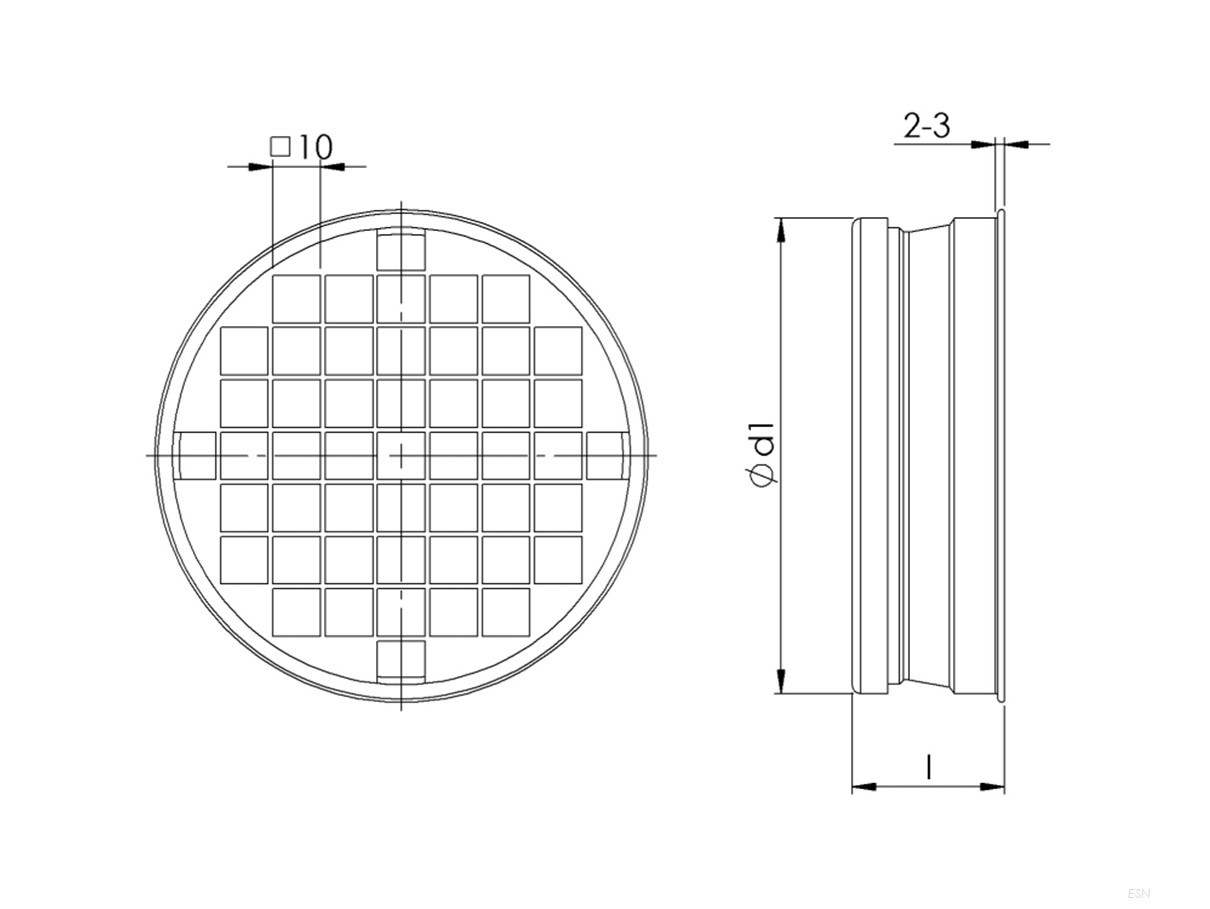

| Type | Ød nom [mm] |
l [mm] |
m [kg] |
| ESN80 | 80 | 33 |
0,04 |
| ESN100 | 100 | 33 | 0,05 |
| ESN125 | 125 | 33 | 0,07 |
| ESN150 | 150 | 33 | 0,085 |
| ESN160 | 160 | 33 | 0,09 |
| ESN180 | 180 | 33 | 0,10 |
| ESN200 | 200 | 33 | 0,12 |
| ESN250 | 250 | 43 | 0,19 |
| ESN315 | 315 | 43 | 0,27 |
