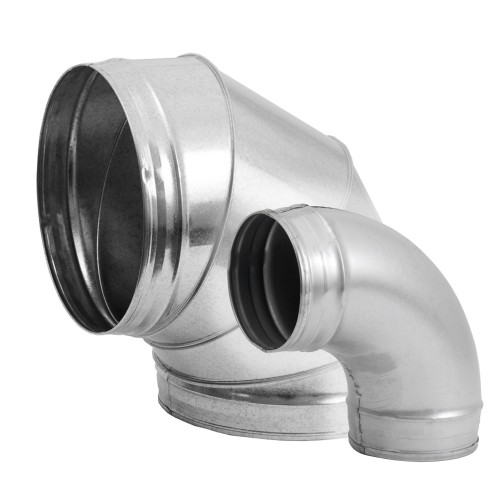

bends without gaskets BF90°

Construction:

  • Material galvanized steel or other metal
  • Pressed
  • Segmented



Instalation:

  • Easy installation.



Information: Bends can be manufactured in other diameters by choice.

Bends are used for installation of spiral ducts and plain ducts.

Connection

Sort by

Article Description EAN Connection
BF90-100
BF90-100
elbow metal, 90°- Ø100mm without rubber, extruded
4750492106310
100 mm
BF90-125
BF90-125
elbow metal, 90°- Ø125mm without rubber, extruded
4750492106327
125 mm
BF90-150
BF90-150
elbow metal, 90°- Ø150mm without rubber
4750492025178
150 mm
BF90-160
BF90-160
elbow metal, 90°- Ø160mm without rubber
4750492106303
160 mm
BF90-180
BF90-180
elbow metal, 90°- Ø180mm without rubber
20000484
180 mm
BF90-200
BF90-200
elbow metal, 90°- Ø200mm without rubber
4750492106334
200 mm
BF90-250
BF90-250
elbow metal, 90°- Ø250mm without rubber
4750492106815
250 mm
BF90-315
BF90-315
elbow metal, 90°- Ø315mm without rubber
4750492106822
315 mm
BF90-80
BF90-80
elbow metal, 90°- Ø80mm without rubber, extruded
4750492220207
80 mm

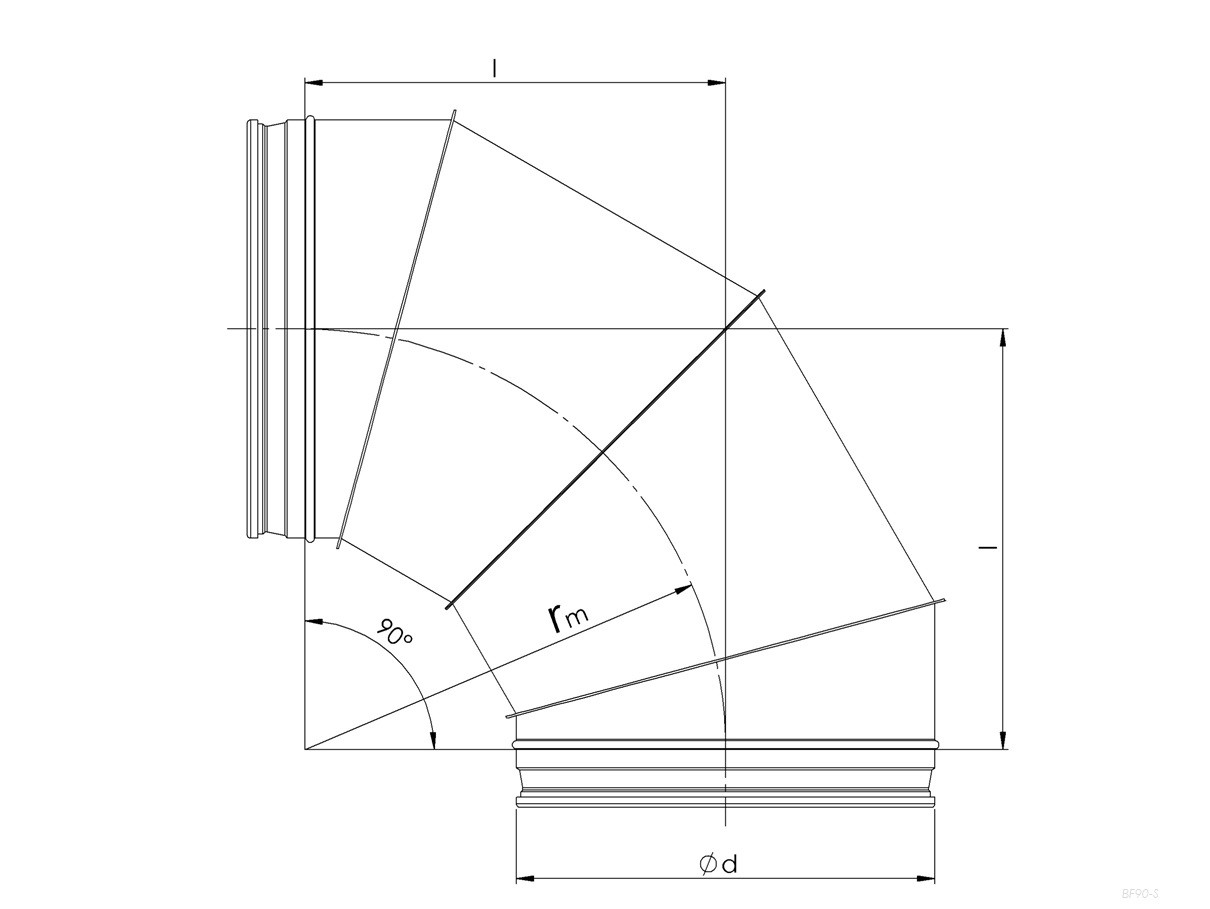

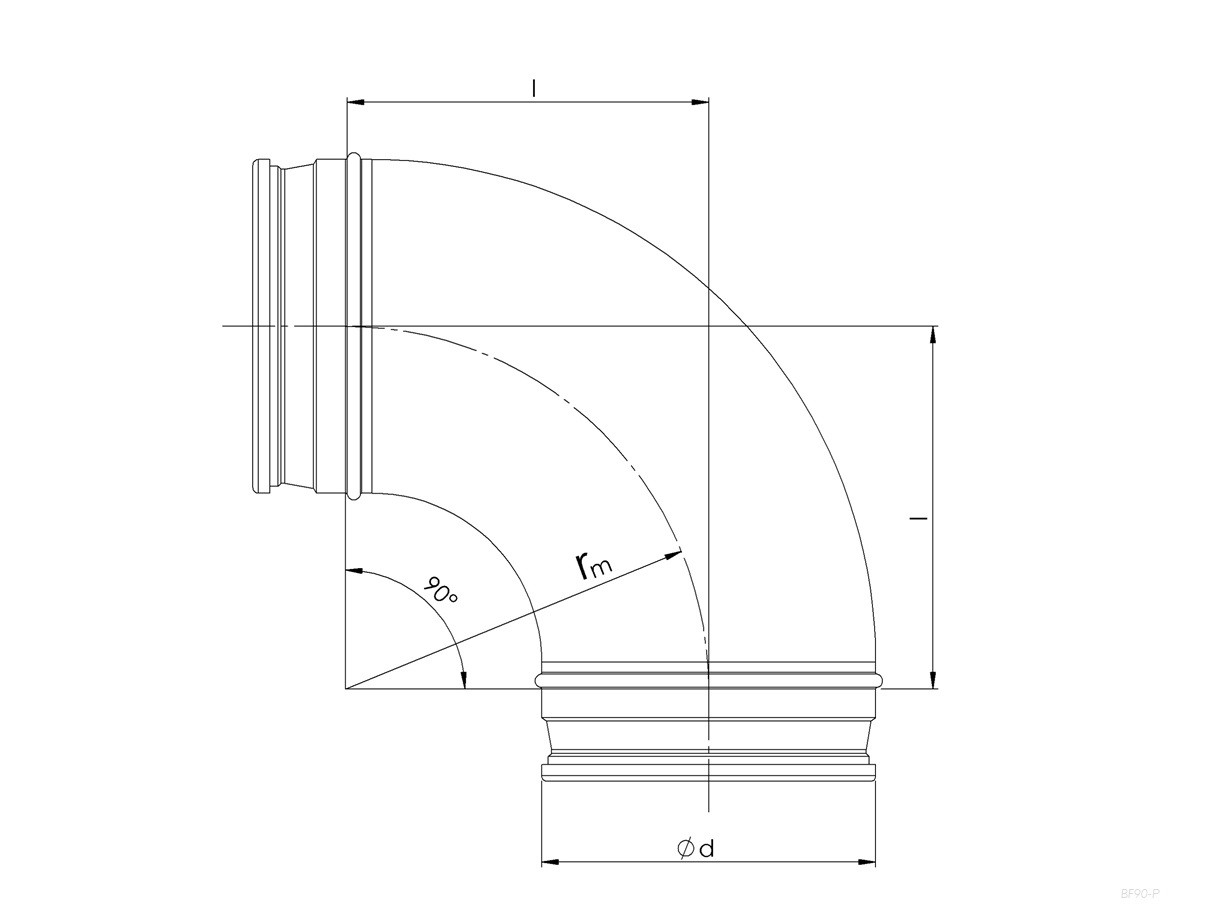

Type Ød nom
[mm]
rm
[mm]
l
[mm]
m
[kg]
BF90-80* 80 100 100 0,23
BF90-100* 100 100 100 0,29
BF90-125* 125 125 125 0,42
BF90-150 150 150 150 0,62
BF90-160 160 160 160 0,69
BF90-180 180 180 180 0,94
BF90-200 200 200 200 1,01
BF90-250 250 250 250 1,54
BF90-300 300 300 300 2,1
BF90-315 315 315 315 2,3
BF90-355 355 355 355 4,6
BF90-400 400 400 400 5,7
BF90-450 450 450 450 7,0
BF90-500 500 500 500 8,5
BF90-560 560 560 560 10,5
BF90-630 630 630 630 13,0
*Pressed.
Bends can be manufactured in other diameters by choice.
