bends with gaskets BFS45°
Construction:
- Material galvanized steel or other metal
- EPDM seals
- Pressed
- Segmented
- Manufactured according "D" class
Instalation:
- Easy installation.
Information: Bends can be manufactured in other diameters by choice.
Bends with seling are used for installation of spiral ducts and plain ducts. Bends with EPDM seals are manufactured according "D" class according to EN 12237.
| Article | Description | EAN | Connection | Class | |
|---|---|---|---|---|---|
|
BFS45-100
|
elbow metal, 45°- Ø100mm with rubber, extruded
|
4750492106792
|
100 mm | M1;D |
|
BFS45-125
|
elbow metal, 45°- Ø125mm with rubber, extruded
|
4750492106754
|
125 mm | M1;D |
|
BFS45-150
|
elbow metal, 45°- Ø150mm with rubber
|
20000446
|
150 mm | M1;D |
|
BFS45-160
|
elbow metal, 45°- Ø160mm with rubber
|
4750492106761
|
160 mm | M1;D |
|
BFS45-180
|
elbow metal, 45°- Ø180mm with rubber
|
20000448
|
180 mm | M1;D |
|
BFS45-200
|
elbow metal, 45°- Ø200mm with rubber
|
4750492106808
|
200 mm | M1;D |
|
BFS45-250
|
elbow metal, 45°- Ø250mm with rubber
|
4750492210543
|
250 mm | M1;D |
|
BFS45-315
|
elbow metal, 45°- Ø315mm with rubber
|
4750492210536
|
315 mm | M1;D |
|
BFS45-80
|
elbow metal, 45°- Ø80mm with rubber, extruded
|
4750492220252
|
80 mm | M1;D |
| Type | Ød nom [mm] |
rm [mm] |
l [mm] |
m [kg] |

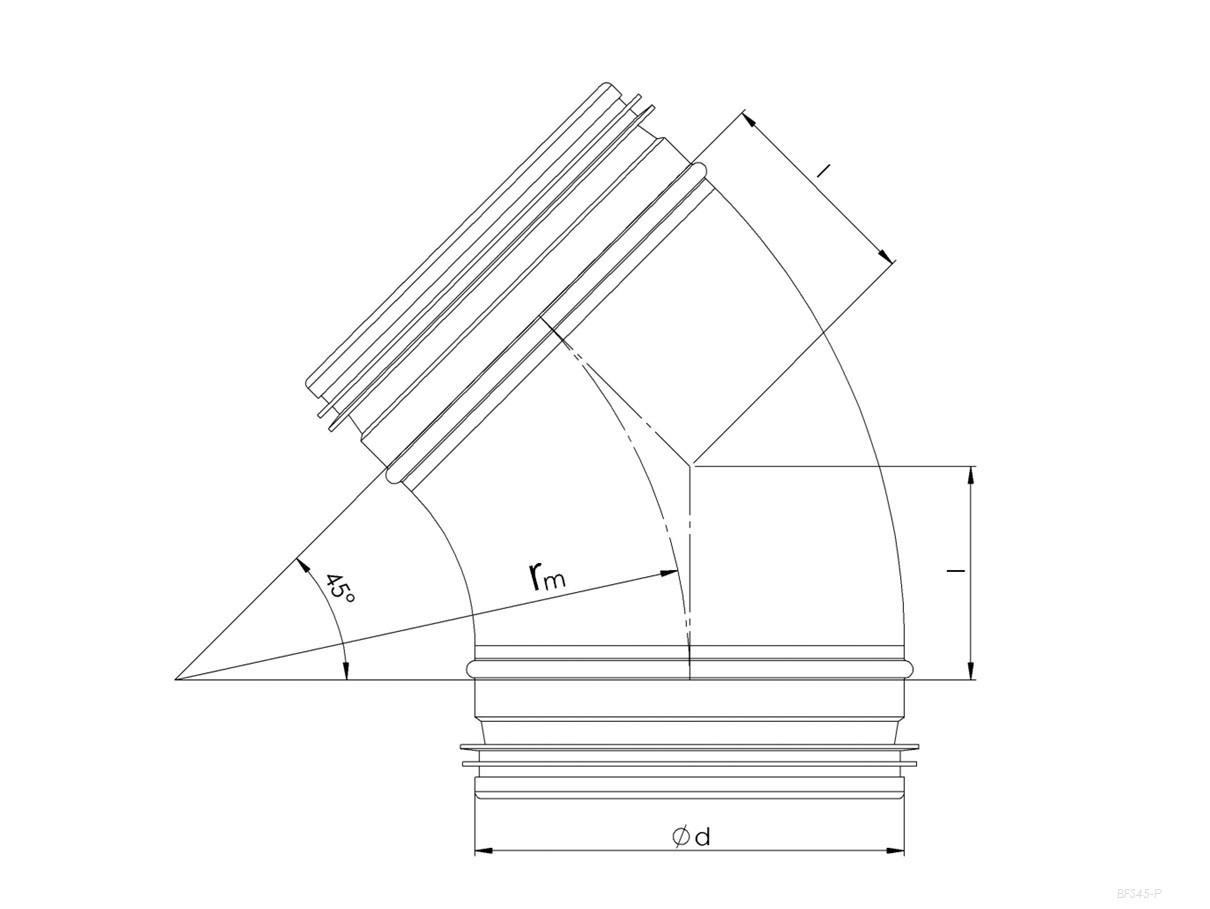

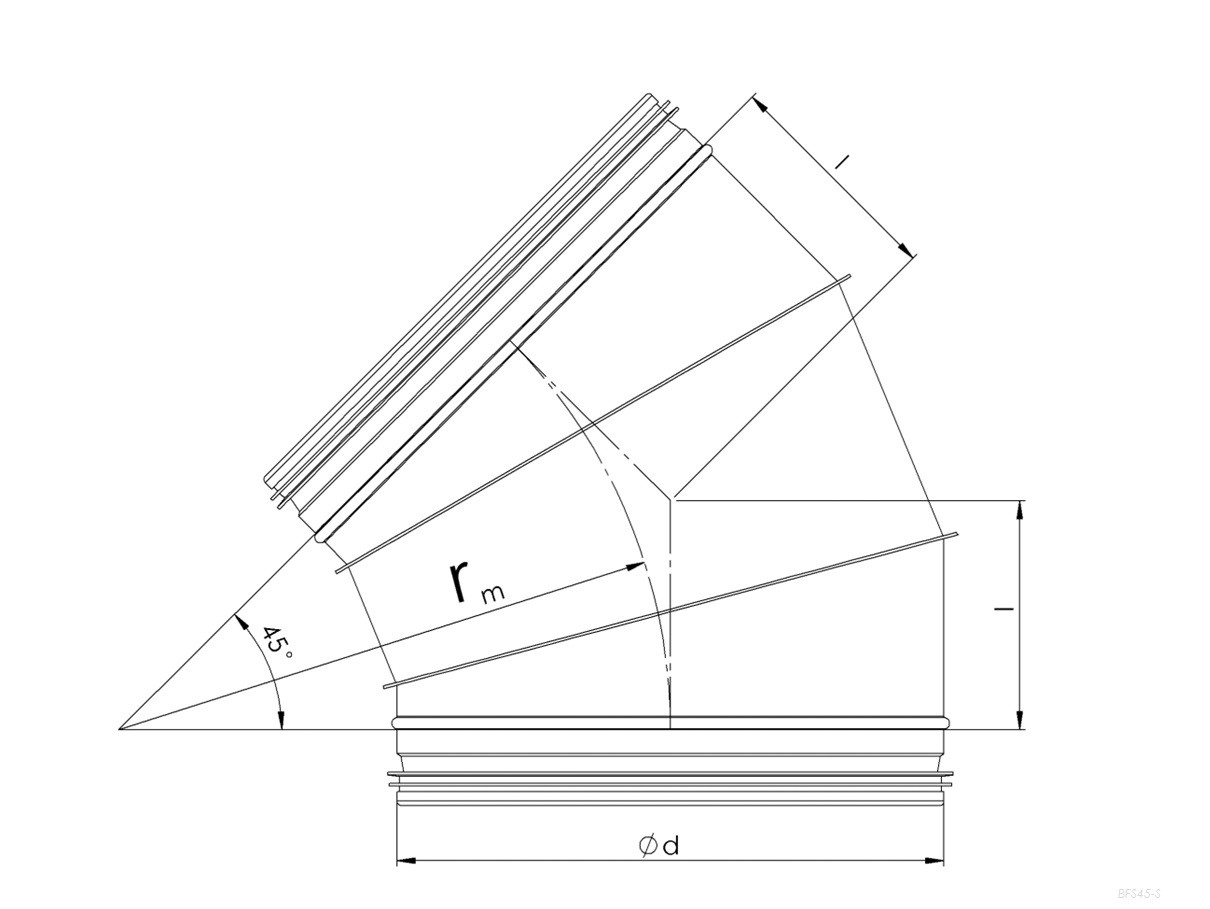

| BFS45-80* | 80 | 100 | 41 | 0,17 |
| BFS45-100* | 100 | 100 | 41 | 0,23 |
| BFS45-125* | 125 | 125 | 52 | 0,30 |
| BFS45-150 | 150 | 150 | 62 | 0,45 |
| BFS45-160 | 160 | 160 | 66 | 0,50 |
| BFS45-180 | 180 | 180 | 74 | 0,60 |
| BFS45-200 | 200 | 200 | 82 | 0,71 |
| BFS45-250 | 250 | 250 | 103 | 1,1 |
| BFS45-315 | 315 | 315 | 129 | 1,6 |
*Pressed.
Bends can be manufactured in other diameters by choice.
