bends with gaskets BFS60°
Construction:
- Material galvanized steel or other metal
- EPDM rubber seal
- Pressed
- Segmented
- Manufactured according "D" class
Instalation:
- Easy installation.
Information: Bends can be manufactured in other diameters by choice.
Bends are used for installation of spiral ducts and plain ducts.
| Article | Description | EAN | Connection | Class | |
|---|---|---|---|---|---|
|
BFS60-100
|
elbow metal, 60°- Ø100mm with rubber
|
4750492001011
|
100 mm | M1;D |
|
BFS60-125
|
elbow metal, 60°- Ø125mm with rubber
|
4750492001028
|
125 mm | M1;D |
|
BFS60-150
|
elbow metal, 60°- Ø150mm with rubber
|
20000466
|
150 mm | M1;D |
|
BFS60-160
|
elbow metal, 60°- Ø160mm with rubber
|
4750492001035
|
160 mm | M1;D |
|
BFS60-180
|
elbow metal, 60°- Ø180mm with rubber
|
20003283
|
180 mm | M1;D |
|
BFS60-200
|
elbow metal, 60°- Ø200mm with rubber
|
4750492001042
|
200 mm | M1;D |
|
BFS60-250
|
elbow metal, 60°- Ø250mm with rubber
|
4750492210550
|
250 mm | M1;D |
|
BFS60-315
|
elbow metal, 60°- Ø315mm with rubber
|
4750492210567
|
315 mm | M1;D |
|
BFS60-80
|
elbow metal, 60°- Ø80mm with rubber, extruded
|
20003276
|
80 mm | M1;D |
| Type | Ød nom [mm] |
rm [mm] |
l [mm] |
m [kg] |

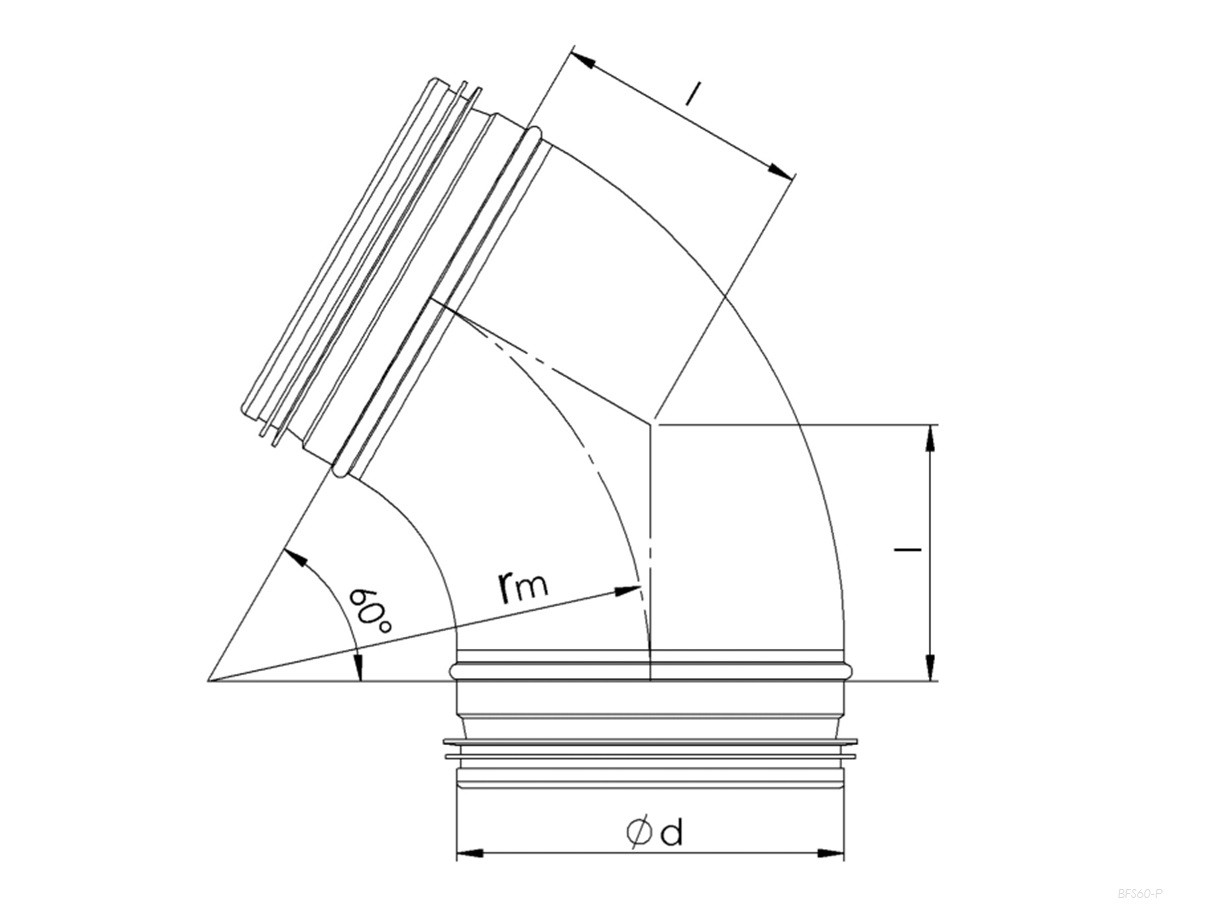

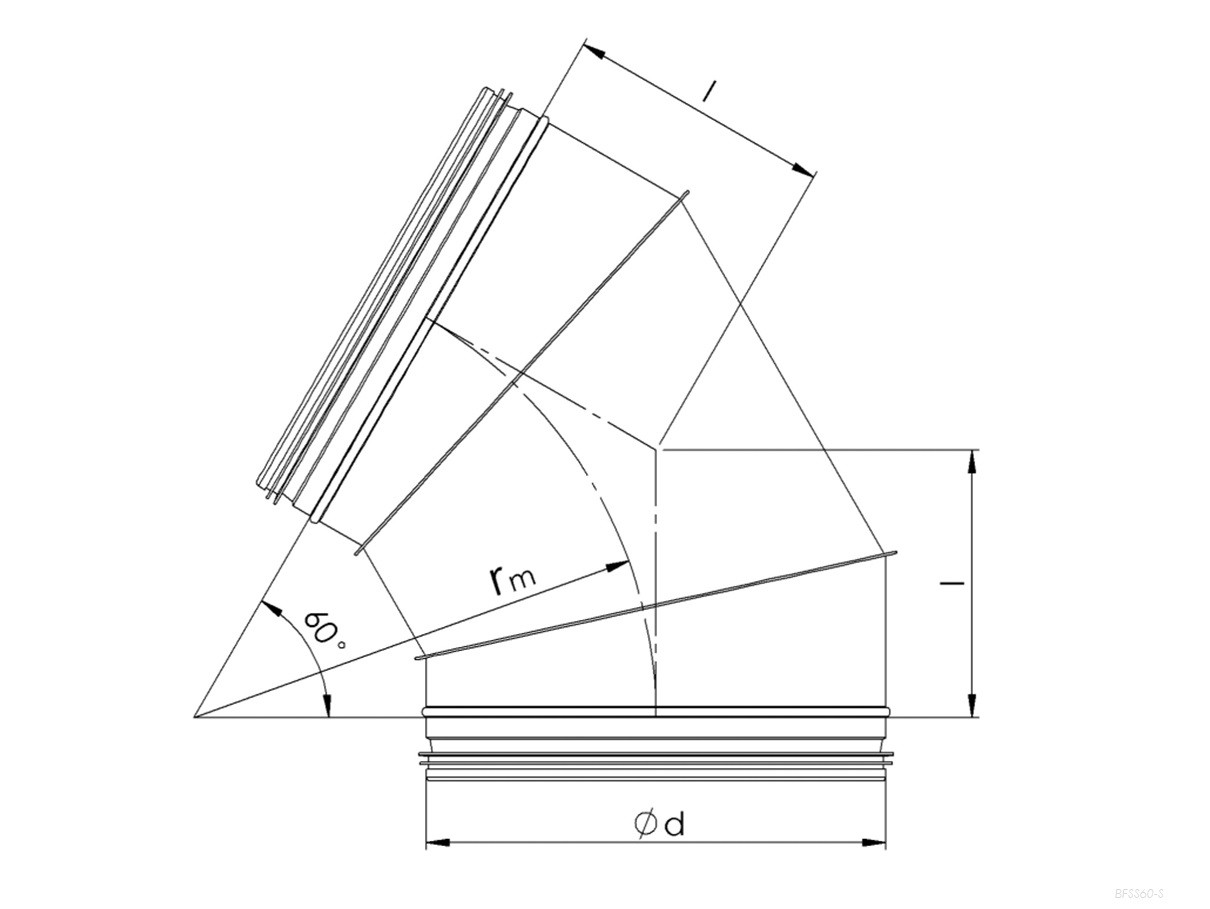

| BFS60-80* | 80 | 100 | 58 |
0,20 |
| BFS60-100 | 100 | 100 | 58 | 0,29 |
| BFS60-125 | 125 | 125 | 72 | 0,44 |
| BFS60-150 | 150 | 150 | 87 | 0,63 |
| BFS60-160 | 160 | 160 | 92 | 0,70 |
| BFS60-180 | 180 | 180 | 104 | 0,85 |
| BFS60-200 | 200 | 200 | 115 | 0,96 |
| BFS60-250 | 250 | 250 | 144 | 1,1 |
| BFS60-315 | 315 | 315 | 182 | 2,2 |
*Pressed.
Bends can be manufactured in other diameters by choice
