Products METAL ROUND SYSTEM silencers flexible silencers with insulation layer 50mm GS-50

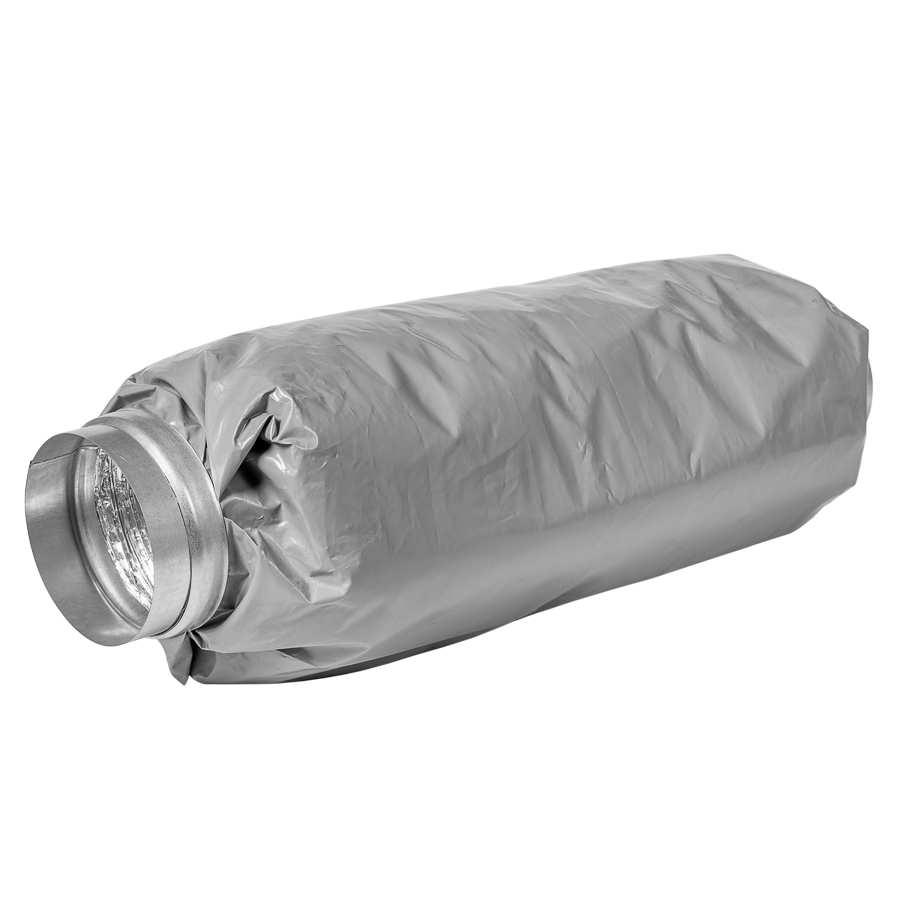

flexible silencers with insulation layer 50mm GS-50

  • Gallery

Construction:

  • Inner duct made from perforated corrugated aluminium
  • Barrier between inner duct and sound insulation from nonwoven cloth
  • Encased sound absorbing insulation layer of 50mm thickness
  • Coated with PE plastic outer jacket
  • End sleeves made from galvanized steel, equipped with female connectors

Installation:

  • Mounting with all type metal round ducts
  • Location: indoors



Delivered: compressed, l min

Temperature range: from -25oC to +8oC

Maximum pressure: 2000 Pa

Maximum air speed: 15 m/sec

View products

GS series flexible silencers are available in different diameters from 80mm up to 315mm in diameter, as well as in different lengths from 0.6m up to 1.2m with 50mm sound insulation thicknesses: The bendability of the europlast GS series silencer allows adaption to very confined spaces and difficult wiring.

In situations where it is necessary to reduce the noise level in the air flow,  Europlast silencers will be an excellent choice!

Length

Connection

Sort by

Article Description EAN Length Connection
GS100-0.6-50-FF
GS100-0.6-50-FF
flexible silencer, Ø100mm-0.6m, insulation 50mm, female sleeves
4750492018019
 0,6 m 100 mm
GS100-1.2-50-FF
GS100-1.2-50-FF
flexible silencer, Ø100mm-1.2m, insulation 50mm, female sleeves
4750492018033
 1,2 m 100 mm
GS125-0.6-50-FF
GS125-0.6-50-FF
flexible silencer, Ø125mm-0.6m, insulation 50mm, female sleeves
4750492018057
 0,6 m 125 mm
GS125-1.2-50-FF
GS125-1.2-50-FF
flexible silencer, Ø125mm-1.2m, insulation 50mm, female sleeves
4750492018101
 1,2 m 125 mm
GS160-0.6-50-FF
GS160-0.6-50-FF
flexible silencer, Ø160mm-0.6m, insulation 50mm, female sleeves
4750492018088
 0,6 m 160 mm
GS160-1.2-50-FF
GS160-1.2-50-FF
flexible silencer, Ø160mm-1.2m, insulation 50mm, female sleeves
4750492018118
 1,2 m 160 mm
GS200-0.6-50-FF
GS200-0.6-50-FF
flexible silencer, Ø200mm-0.6m, insulation 50mm, female sleeves
4750492018132
 0,6 m 200 mm
GS200-1.2-50-FF
GS200-1.2-50-FF
flexible silencer, Ø200mm-1.2m, insulation 50mm, female sleeves
4750492018156
 1,2 m 200 mm
GS250-0.6-50-FF
GS250-0.6-50-FF
flexible silencer, Ø250mm-0.6m, insulation 50mm, female sleeves
4750492018170
 0,6 m 250 mm
GS250-1.2-50-FF
GS250-1.2-50-FF
flexible silencer, Ø250mm-1.2m, insulation 50mm, female sleeves
4750492018194
 1,2 m 250 mm



Type Ødnom
[mm]		 lmin
[mm]		 lmax
[mm]		 rm
[mm]		 Weight
[kg]
GS80-0.6-50-FF 80 300 600 88 0,54
GS80-1.2-50-FF 80 600 1200 88 0,94
GS100-0.6-50-FF 100 300 600 110 0,63
GS100-1.2-50-FF 100 600 1200 110 1,10
GS125-0.6-50-FF 125 300 600 138 0,76
GS125-1.2-50-FF 125 600 1200 138 1,30
GS160-0.6-50-FF 160 300 600 175 0,93
GS160-1.2-50-FF 160 600 1200 175 1,58
GS200-0.6-50-FF 200 300 600 255 1,12
GS200-1.2-50-FF 200 600 1200 255 1,91
GS-250-0.6-50-FF 250 320 600 320 1,37
GS-250-1.2-50-FF 250 620 1200 320 2,31
GS315-0.6-50-FF 315 320 600 400 1,69
GS315-1.2-50-FF 315 620 1200 400 2,84



Insulation thickness 50mm:

Ødnom
[mm]		 lmin
[mm]		 Sound attenuation (dB) at frequency (Hz)
125 250 500 1000 2000 4000 8000
80 600  17 27  30  28  32  17  9
100 600 17  28  26  25  22  13  8
125 600 16  22  21  20  22  15  9
160 600 15  19  17  16  19  11  7
200 600 11  16  11  12  18  10  7
250 600 18  14  9  10  15  5  4
315 600 15  11  7  9  9  4  3



Ødnom
[mm]		 lmin
[mm]		 Sound attenuation (dB) at frequency (Hz)
125 250 500 1000 2000 4000 8000
80 1200 26 33 37 40 58 42 17
100 1200 26 34 32 36 41 32 15
125 1200 29 33 28 33 39 37 16
160 1200 19 29 27 27 36 35 13
200 1200 19 29 22 23 34 22 13
250 1200 27 21 16 18 20 7 6
315 1200 22 17 13 17 13 6 5
