reducers concentric with gaskets RCLS
Construction:
- Material galvanized steel or other metal
- EPDM seals
- Pressed
- Segmented
- Manufactured according "D" class
Instalation:
- Easy installation.
Information: Reducers can be manufactured in other diameters by choice.
RCLS reducers is a fitting used in ventilation systems between two pipes of different diameters they provide the perfect fitting when you need to change from one size duct to another size. The ends are eqied with EPDM gaskets to ensure the highest class of air tightness according to "D" class.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
RCLS100-80
|
transition joint metal, Ø100-Ø80mm with rubber, extruded
|
4750492211311
|
100-80 mm |
|
RCLS125-100
|
transition joint metal, Ø125-Ø100mm with rubber, extruded
|
4750492001059
|
125-100 mm |
|
RCLS125-80
|
transition joint metal, Ø125-Ø80mm with rubber, extruded
|
4750492222508
|
125-80 mm |
|
RCLS150-100
|
transition joint metal, Ø150-Ø100mm with rubber, extruded
|
20000568
|
150-100 mm |
|
RCLS150-125
|
transition joint metal, Ø150-Ø125mm with rubber, extruded
|
4750492025024
|
150-125 mm |
|
RCLS150-80
|
transition joint metal, Ø150-Ø80mm with rubber
|
20003622
|
150-80 mm |
|
RCLS160-100
|
transition joint metal, Ø160-Ø100mm with rubber, extruded
|
4750492001875
|
160-100 mm |
|
RCLS160-125
|
transition joint metal, Ø160-Ø125mm with rubber, extruded
|
4750492001066
|
160-125 mm |
|
RCLS160-150
|
transition joint metal, Ø160-Ø150mm with rubber
|
4750492222515
|
160-150 mm |
|
RCLS160-80
|
transition joint metal, Ø160-Ø80mm with rubber
|
20002963
|
160-80 mm |

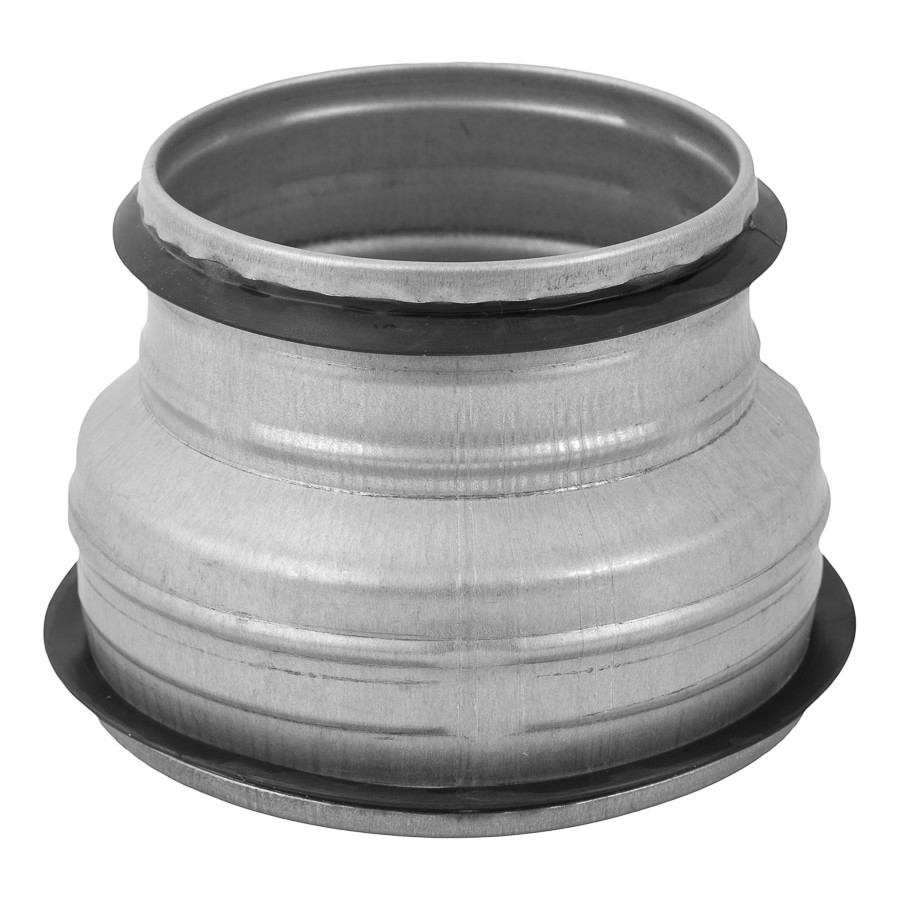

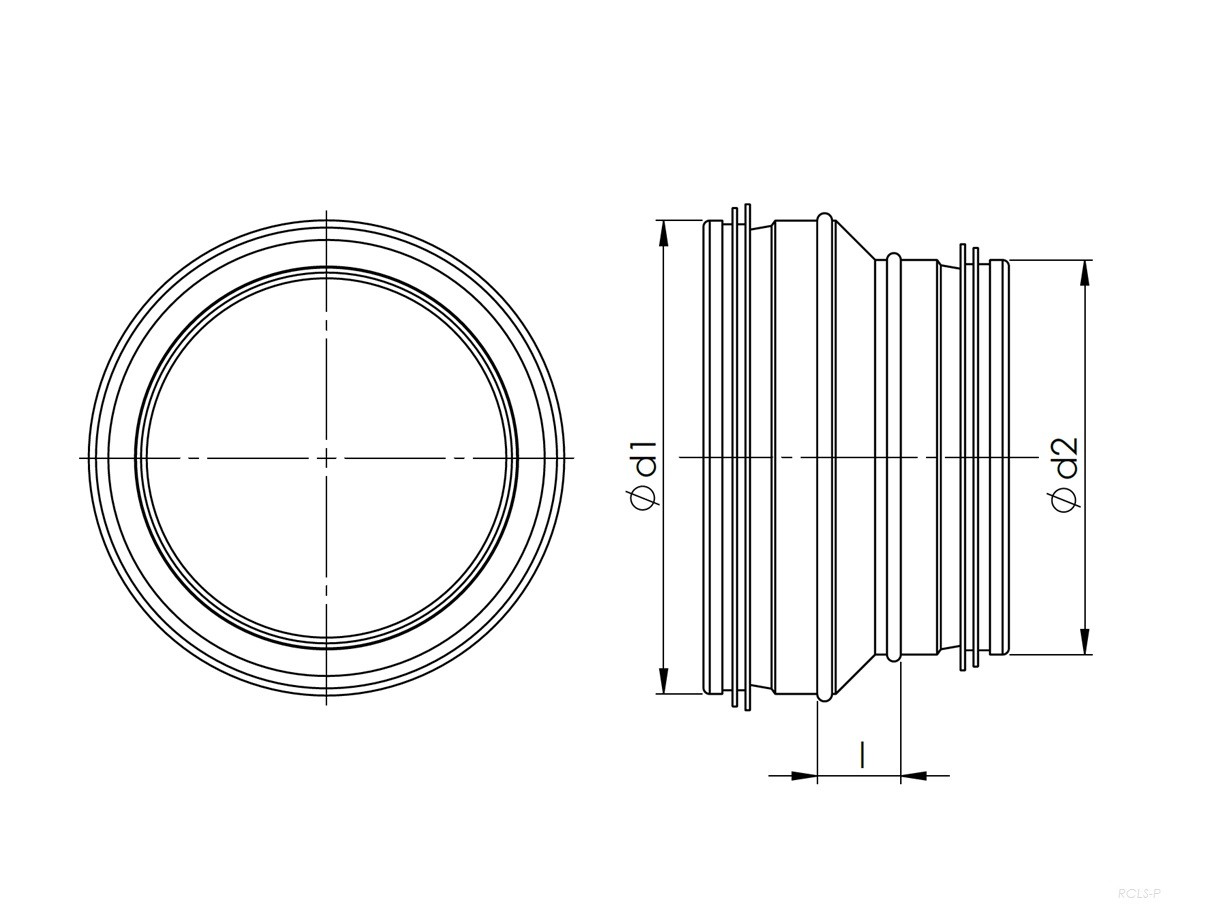

Pressed

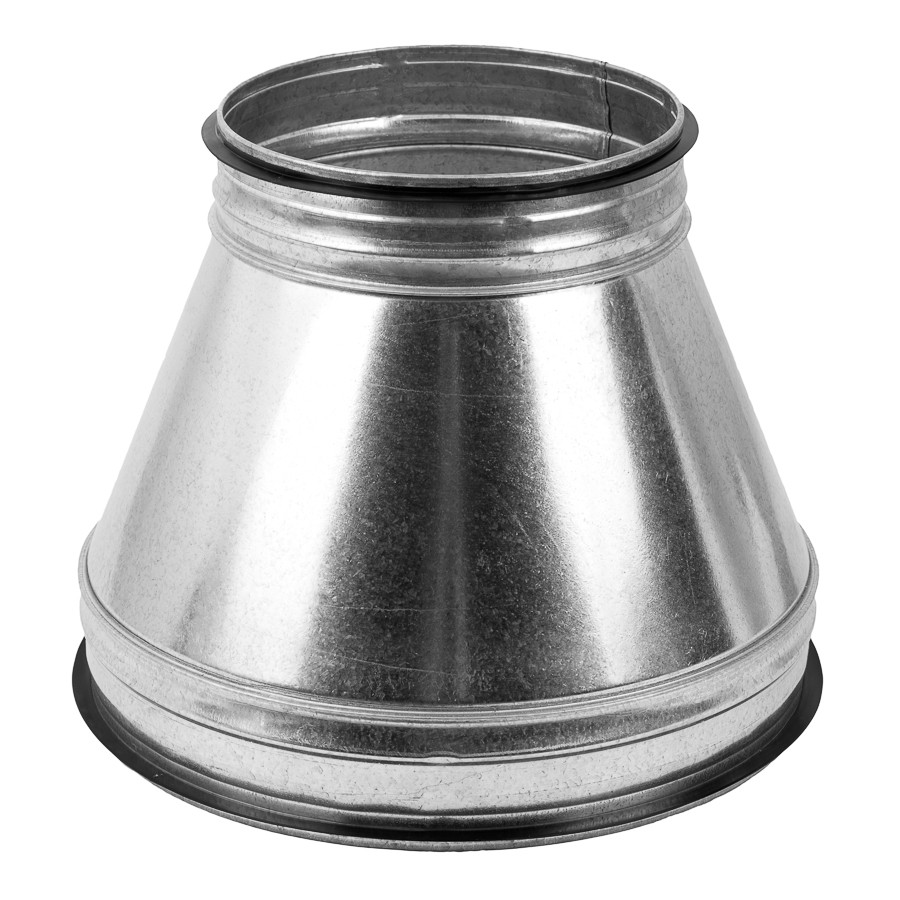

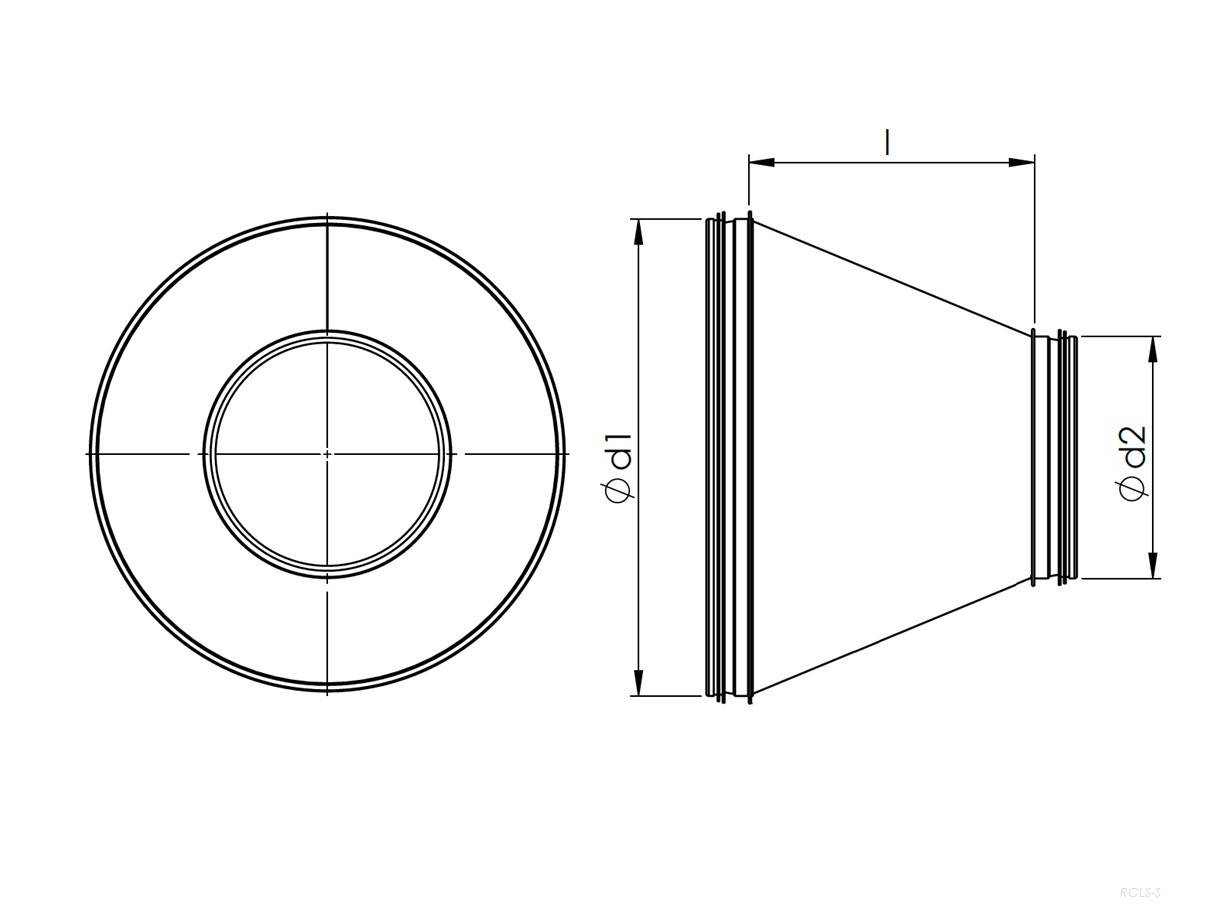

Segmented
| Type | Ød1 nom [mm] |
Ød2 nom [mm] |
l [mm] |
m [kg] |
| RCLS100-80* | 100 | 80 | 37 | 0,2 |
| RCLS125-100* | 125 | 100 | 34 | 0,2 |
| RCLS125-80* | 125 | 80 | 40 | 0,2 |
| RCLS150-100* | 150 | 100 | 49 | 0,2 |
| RCLS150-125* | 150 | 125 | 39 | 0,2 |
| RCLS150-80 | 150 | 80 | 69,9 | 0,26 |
| RCLS160-80 | 160 | 80 | 78,7 | 0,29 |
| RCLS160-100* | 160 | 100 | 56 | 0,3 |
| RCLS160-125* | 160 | 125 | 45 | 0,2 |
| RCLS160-150 | 160 | 150 | 23,7 | 0,3 |
| RCLS180-100 | 180 | 100 | 78,7 | 0,34 |
| RCLS180-125 | 180 | 125 | 56,6 | 0,32 |
| RCLS180-150 | 180 | 150 | 34,5 | 0,3 |
| RCLS180-160 | 180 | 160 | 25,7 | 0,29 |
| RCLS180-80 | 180 | 80 | 96,4 | 0,34 |
| RCLS200-100* | 200 | 100 | 65 | 0,4 |
| RCLS200-125* | 200 | 125 | 57 | 0,4 |
| RCLS200-150* | 200 | 150 | 46 | 0,3 |
| RCLS200-160* | 200 | 160 | 37 | 0,3 |
| RCLS200-180 | 200 | 180 | 25,7 | 0,33 |
| RCLS200-80 | 200 | 80 | 114 | 0,4 |
| RCLS250-100 | 200 | 100 | 140,6 | 0,59 |
| RCLS250-125 | 250 | 125 | 118,5 | 0,58 |
| RCLS250-150 | 250 | 150 | 96,4 | 0,56 |
| RCLS250-160 | 250 | 160 | 87,5 | 0,55 |
| RCLS250-180 | 250 | 180 | 69,9 | 0,53 |
| RCLS250-200 | 250 | 200 | 52,2 | 0,5 |
| RCLS315-100 | 315 | 100 | 198 | 0,86 |
| RCLS315-125 | 315 | 125 | 175,9 | 0,85 |
| RCLS315-150 | 315 | 150 | 153,8 | 0,83 |
| RCLS315-160 | 315 | 160 | 145 | 0,82 |
| RCLS315-180 | 315 | 180 | 127,3 | 0,79 |
| RCLS315-200 | 315 | 200 | 109,6 | 0,76 |
| RCLS315-250 | 315 | 250 | 65,4 | 0,71 |
*Pressed
Bends can be manufactured in other diameters by choice
